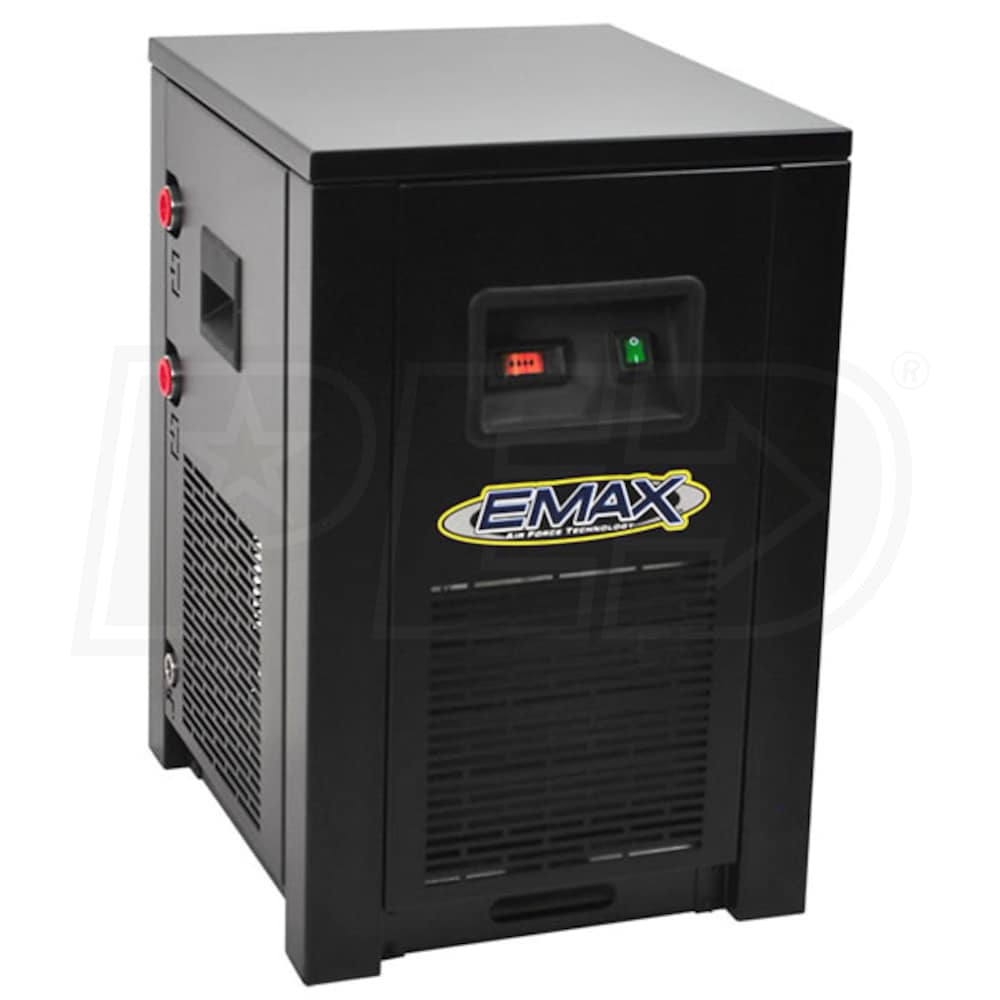

EMAX 115V-1 High Temperature Refrigerated Air Dryer 7.5HP (29CFM)

Model:

EDR1150025

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
EMAX 115V-1 High Temperature Refrigerated Air Dryer 7.5HP (29CFM)
EMAX 115V-1 High Temperature Refrigerated Air Dryer 7.5HP (29CFM)
Model: EDR1150025
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Air Dryer CFM

29
  • High Temperature Cooling System
  • Designed for 1/2" pipe; runs on 115V-1, 4 Amp power
  • 230 PSI maximum; maximum inlet temp: 150°F; 37°F - 50°F dewpoint
  • Maximum ambient temperature: 120°F; designed for use with compressors that don't have aftercoolers
  • Aluminum Refrigerated Air Inner Cooler
  • Energy efficient & non-corrosive
  • Stainless Steel Heat Exchanger
  • Maximum heat transfer & dryer life with less maintenance
  • Refrigerated Air Inlet Inner Cooler
  • Trouble-free high temperature cooling
  • UL-CSA Approved Scroll Compressor & Electrical System
  • Delivers high efficiency & durability
  • Uses environmentally friendly 134A refrigerant w/ pressure gauge
  • Adjustable Hot Bypass
  • Functions in low & high CFM flow, preventing dryer freeze up
  • Auto Drain System
  • Eliminates the need for daily maintenance
  • Outlet Air Baffle System
  • Prevents condensation on outlet air piping
  • 2 Year Limited Factory Warranty; 5 Years On Heat Exchanger
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EDR1150025
specs product image PID-14548
Engine
HP
7.5
Air Dryer
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
29
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
150
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
120
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
Yes
Overview
Weight
562 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
22 Inches
Product Width
13 Inches
Product Height
23 Inches
UPC
815002012421
