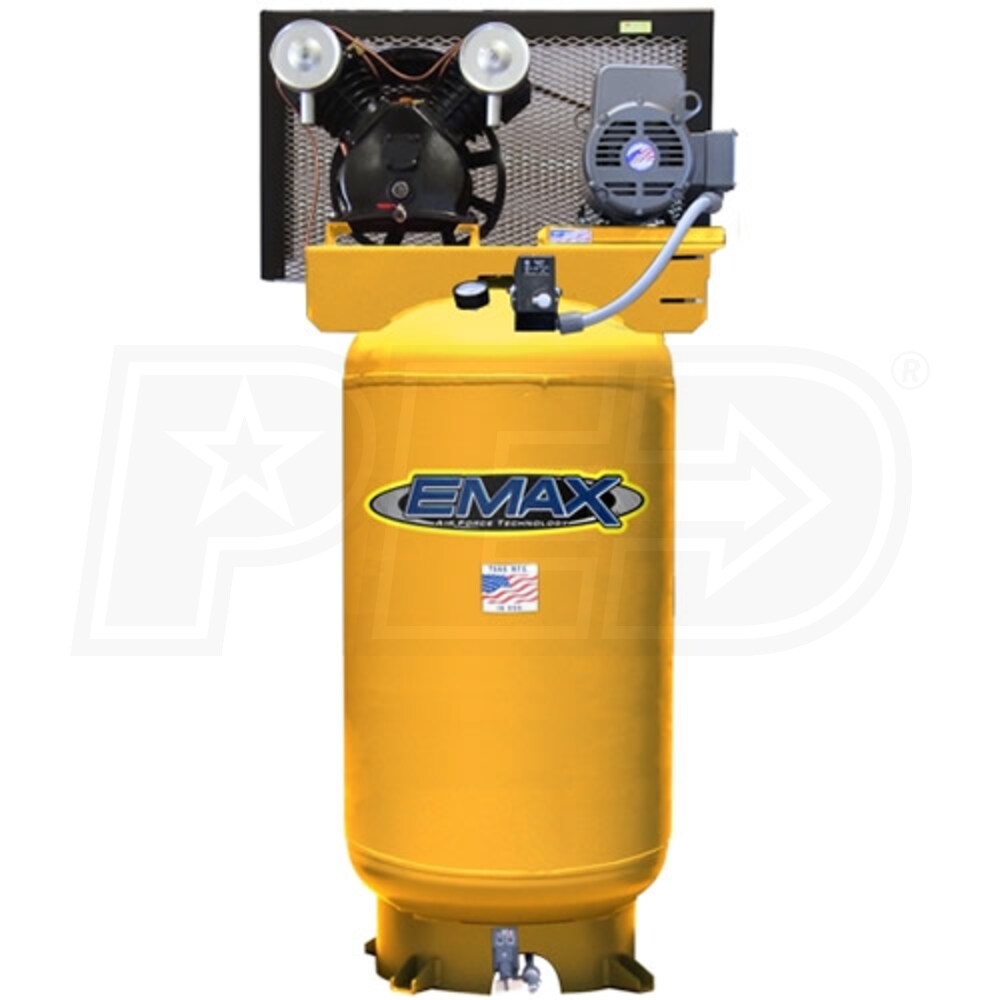

EMAX 5-HP 80-Gallon Dual-Voltage Single-Stage Air Compressor (208/230V 1-Phase)

Model:

EP05V080S1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
EMAX 5-HP 80-Gallon Dual-Voltage Single-Stage Air Compressor (208/230V 1-Phase)
EMAX 5-HP 80-Gallon Dual-Voltage Single-Stage Air Compressor (208/230V 1-Phase)
Model: EP05V080S1
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Single Stage 1-Phase

CFM

19

Tank Size

80

  • Piston Series Single-Stage Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • Flow-Tek - Concentric Disc Valves
  • Deliver maximum air flow & reliability with low replacement costs
  • 5-HP Industrial Grade Motor
  • Low 1750 RPM design extends useful life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V Dual timer controlled, eliminates daily maintenance
  • Requires A 40 Amp Breaker
  • 48 start-up amps; 24 running amps at normal load
  • 5 Year Limited Factory Warranty On Pump & Tank
  • See your Owner's Manual for details
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EP05V080S1
specs product image PID-3797
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
48
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Overview
Weight
650 Pounds
Certification
UL
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
34 Inches
Product Width
24 Inches
Product Height
73 Inches
Power Type
Electric
