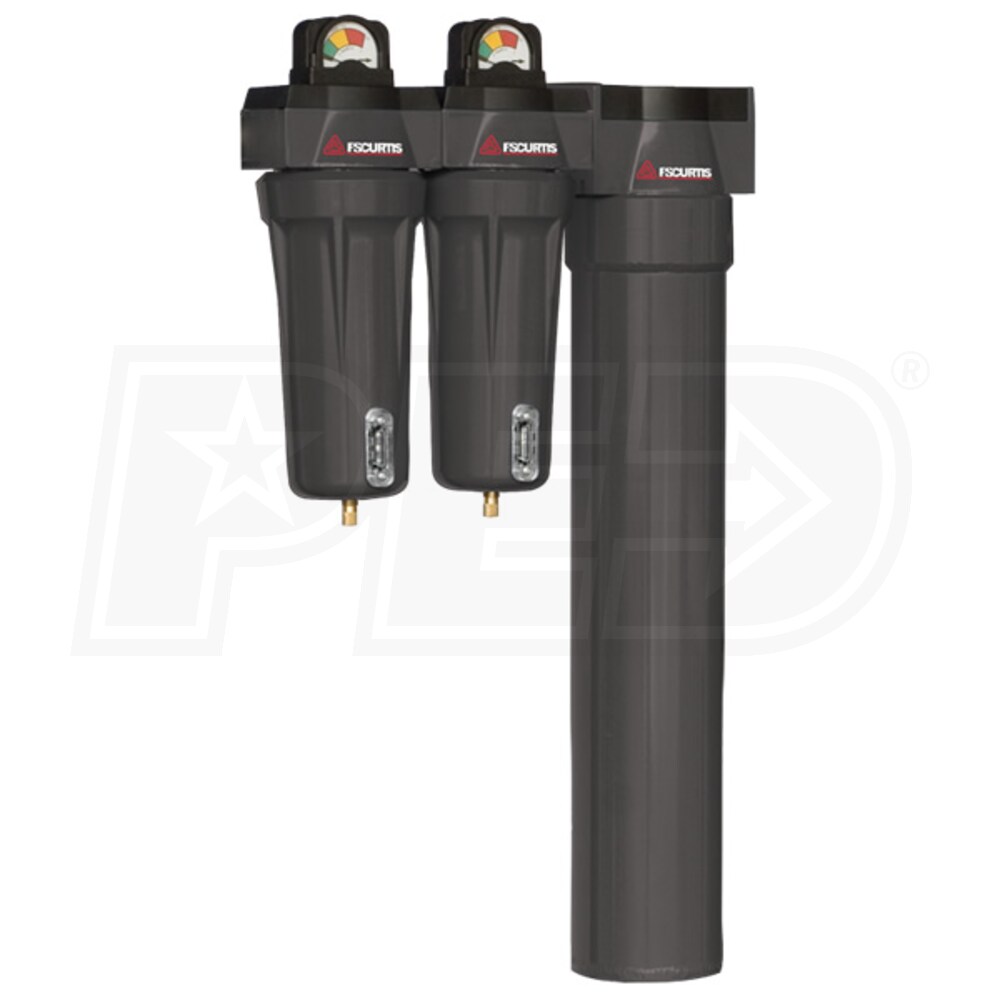

FS-Curtis Membrane Dryer (1" Inlet / Outlet) w/ Dual Pre-Filtration (138.1 CFM)
Model:
MDM138
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Membrane
- Modular Membrane Compressed Air Dryer
- Features multiple strands that form a microscopic sieve
- Targets & removes 'fast gases' like water molecules as a vapor
- Modular connections reduce leak points & simplify installation
- Selective Permeation
- Water vapor is removed while gas composition is left intact
- No oxygen is lost during the process
- Multiple Filter Layers In Each Membrane Bundle
- Evenly spaced for maximum surface area in a compact design
- Helically wrapped layers alternate direction for consistency
- Large Flow Paths
- Air swept across membrane walls carries water vapor to atmosphere
- Low pressure drop & high flow capacity for efficient filtering
- Designed For Continuous Flow Applications
- Dewpoints to -40°F with efficient inside-to-outside permeation
- Compact Design
- Space saving point-of-use solution
- Requires no power to operate, installs easily
- Internal & External Epoxy Powder-Coat
- Provides durable protection & long component life
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
MDM138
Air Dryer
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
150
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
150
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
No
Regenerative
No
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Weight
122 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
8 Inches
Product Height
41 Inches
