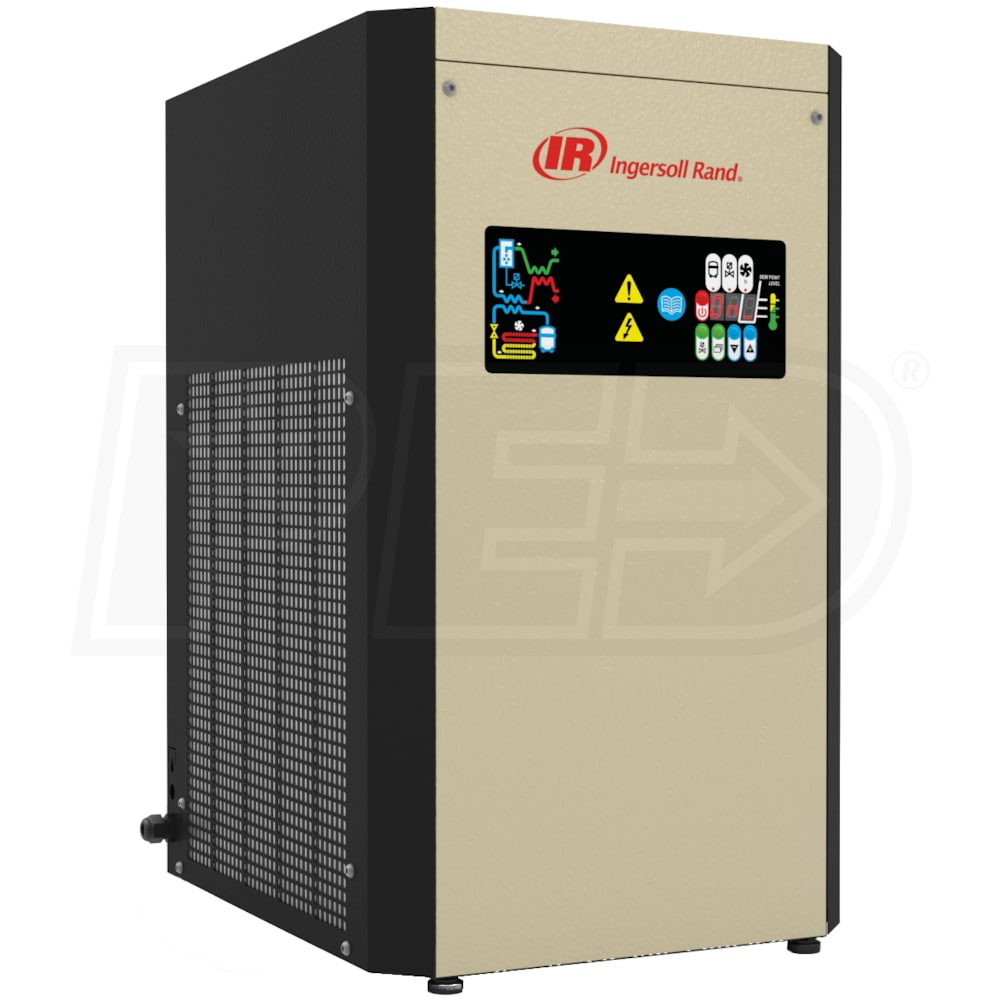

Ingersoll Rand High Temperature Refrigerated Air Dryer 10HP (35 CFM)

Model:

D60IT

Write A Review
$3,099.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Tuesday, Mar 19th
Shipping to60601

Ingersoll Rand High Temperature Refrigerated Air Dryer 10HP (35 CFM)
Ingersoll Rand High Temperature Refrigerated Air Dryer 10HP (35 CFM)
Model: D60IT
$3,099.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Dryer Voltage

115V 1-Phase

Air Dryer CFM

35

Rated HP

10
  • For Use With Compressors Without Aftercoolers Up To 180°F
  • Keeps damp air from rusting tools & washing away lubricants
  • ISO Class 6 Dryer Is Reliable And Operationally Efficient
  • 35 CFM with exceptionally low pressure drop; 10 HP motor
  • Built In Aftercoolers & General Purpose Coalescing Filters
  • Integral stainless steel moisture separation for compressors that don't have aftercoolers
  • Class H optimized pressure between 35° - 40°F dewpoint
  • Temperature driven variable speed fan for continuous heat removal
  • Electronic solenoid drain valve for optimal performance
  • User Friendly Controls
  • Simple, easy to read control panel uses a color coded diagram
  • Environmentally Friendly
  • Uses 115V, 1 phase power and R134A refrigerant
  • Sturdy, powder coated finish
  • Corrosion resistant aluminum plate heat exchanger
  • Professional Features
  • Maximum pressure of 203PSI
  • Maximum inlet temperature of 200°F; maximum ambient temp 122°F
  • 1/2" NPT inlet & outlet fittings
  • Includes a prefilter/moisture separator trap to remove oil
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

D60IT
specs product image PID-2439
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
35
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
203
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
200
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
122
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
Yes
Rated HP Learn More
Rated HP
Possible corresponding compressor HP
10
Overview
Product Category
Air Compressor Accessories
Weight
86 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
20 Inches
Product Width
15.5 Inches
Product Height
26 Inches
Power Type
