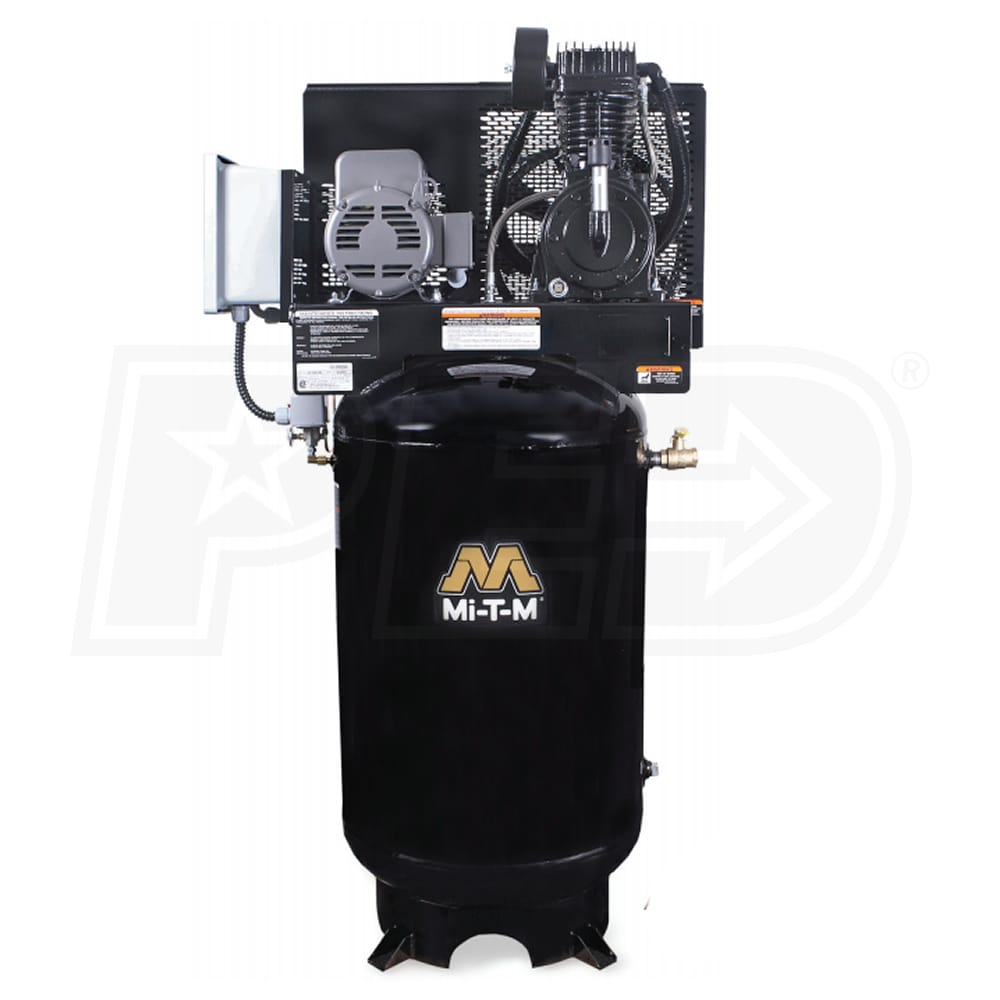

Mi-T-M 5-HP 80-Gallon Two-Stage Air Compressor

Model:

ACS-23105-80V

Write A Review
$4,350.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

Mi-T-M 5-HP 80-Gallon Two-Stage Air Compressor
Mi-T-M 5-HP 80-Gallon Two-Stage Air Compressor
Model: ACS-23105-80V
$4,350.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Voltage

230 Volt AC

Phase

1-Phase

CFM

16.9

Tank Size

80

  • Powerful 5 HP Industrial Electric Unit Is Designed for Heavy Use
  • Cast iron cylinder & head last longer than lightweight components
  • Needs a 230 volt, 1 phase, 22.5 amp circuit
  • Splash Lubricated, Cast Iron Crankcase
  • Rugged and durable to work hard and last a long time
  • Manual drain valves for proper maintenance
  • Large Flywheel With 14 Gauge, 1 Piece Belt Guard
  • Allows extra cooling; prolongs unit life
  • Guard allows easy access to belts; powder coating resists rust
  • All This On A Sturdy Chassis
  • Powder coated, ASME certified, 80 gallon receiver tank
  • Magnetic starter with mounting box and wiring
  • Two-stage intercooler helps maintain safe working temperature
  • Large canister intake filter keeps airflow clean & steady
  • Generous Warranty
  • 1 year limited warranty on electric motor
  • 2 year limited pump exchange program
  • 2 year limited warranty on the rest of the unit
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ACS-23105-80V
specs product image PID-3077
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
22.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16.9
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
466 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
26 Inches
Product Height
72.5 Inches
Power Type
Electric
UPC
016977990817
Additional Model Numbers

AM2-SE05-80M, ACS-23105-80V
