The Schulz v-series 15120hw60x-3 15-hp 120-gallon two-stage air compressor (230v 3-phase) is available for purchase today.

Read Schulz 932.9337-230 reviews before checking out.


Get the best deal on your new Schulz 932.9337-230.

No coupon code required.

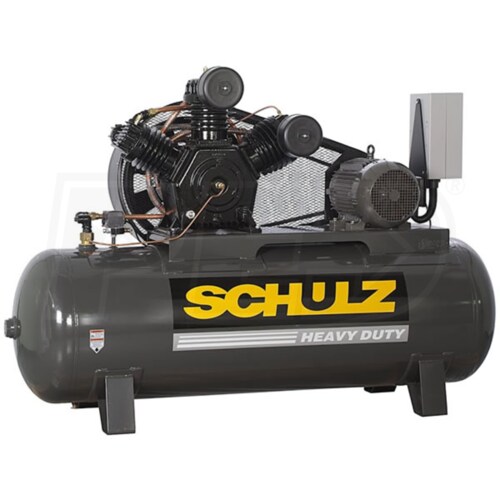

Schulz V-Series 15120HW60X-3 15-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase)

Close
Schulz Air Compressors and AccessoriesModel: 932.9337-230
(Based on expert analysis, manufacturer ratings and customer reviews)
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
1 Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 7-14 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$3,399.99

  • Features
  • Specs
  • Q&A
  • 1
    Reviews
  • Articles
  • Shipping
  • Accessories
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
Voltage
230 Volt AC
3-Phase
HP
15
CFM
60
CFM Rated @ 175 PSI
Tank Size
120
Gallons
WEG T.E.F.C. Electric Motor
15 HP motor reliably handles commercial duty demands

V-Series Cast Iron Pump
Runs cooler, lasts longer due to the space between each cylinder
Deeper cylinder fins for additional heat dissipation

Oversized Main Bearings
Sturdy & reliable

Swedish Steel Valves
Quality components contribute to pump efficiency

CNC Machined Components
Accurate fit produces top-notch performance

Notched Belts Standard
Enclosed belt guard protects the belt & operators

Powder Coated Components
Resist rust & corrosion

1 Year Unit With 2 Year Pump Warranty
Protects your investment
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
60
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
1120 Pounds
Product Length
80 Inches
Product Width
30 Inches
Product Height
62 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Model
932.9337-230

*Ask Steve about the Schulz 932.9337-230. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit

Questions before buying? Ask Steve about this item. Sorry, do not submit repair related questions.

Schulz 932.9337-230 Reviews & Ratings
1 Review  Sort by

Eddie S.
Cleveland, TN
Purchased from Air Compressors Direct
Purchased 8/28/15
REVIEWED
OCT.
16
2015
4 out of 54 out of 54 out of 54 out of 54 out of 5
Belt Problems
Within the first thirty minutes a belt broke. After replacing it was evident the major problem is the motor mount- it is difficult to square motor and maintain tension due to the plain slotted base.

We added a jack screw plate and were able to square and tighten properly.
Eddie Recommends This Schulz Product
Steve, the Air Compressor Expert
Product Expert
Eddie,
This compressor is covered by a Factory Warranty from the folks at Schulz for one year. You may want to contact them directly at (770) 529-4731 x102 to discuss your situation and for help trouble shooting any further issues.

Please be sure to have the serial number of your compressor handy when you call Schulz; they will probably ask for it.
