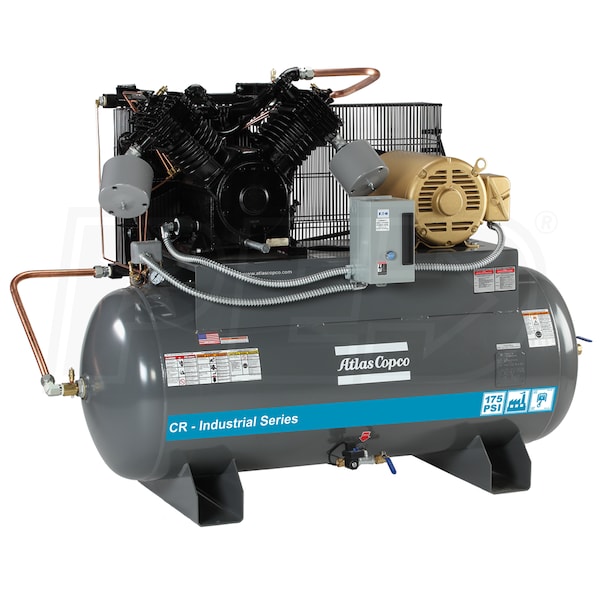

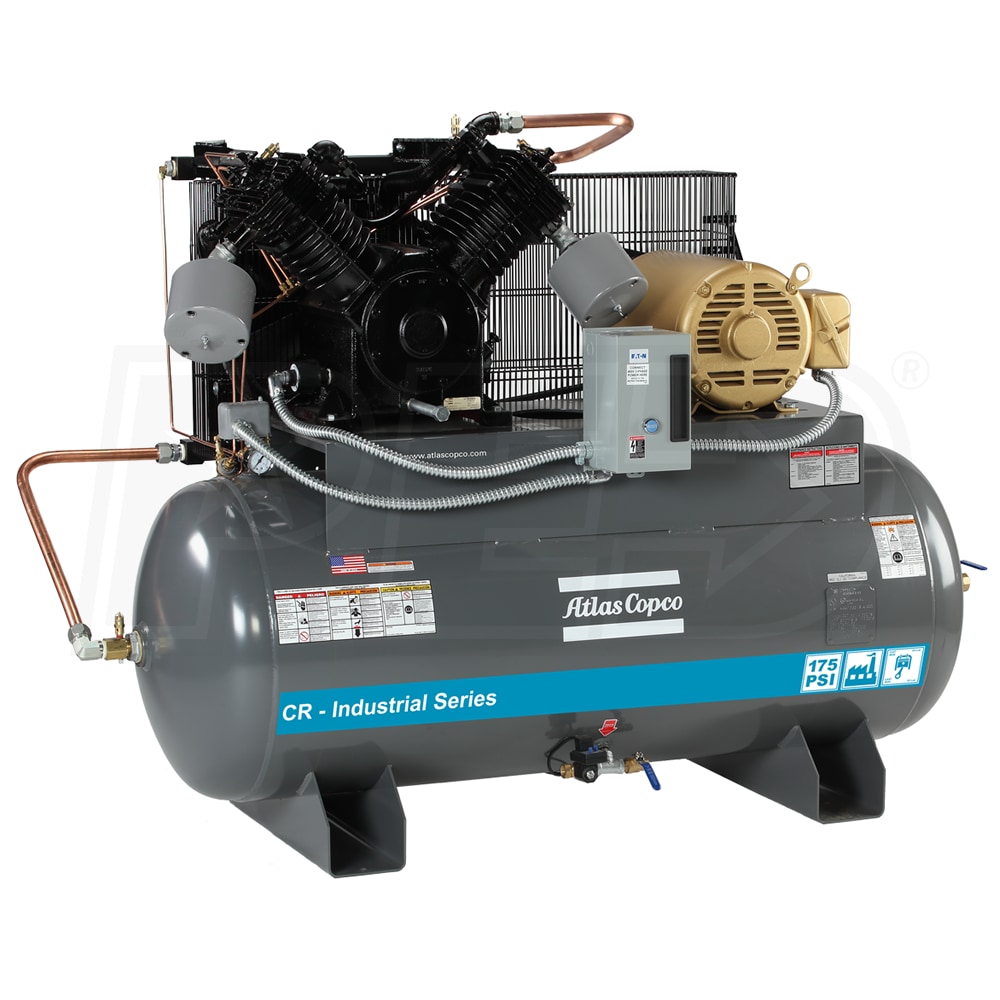

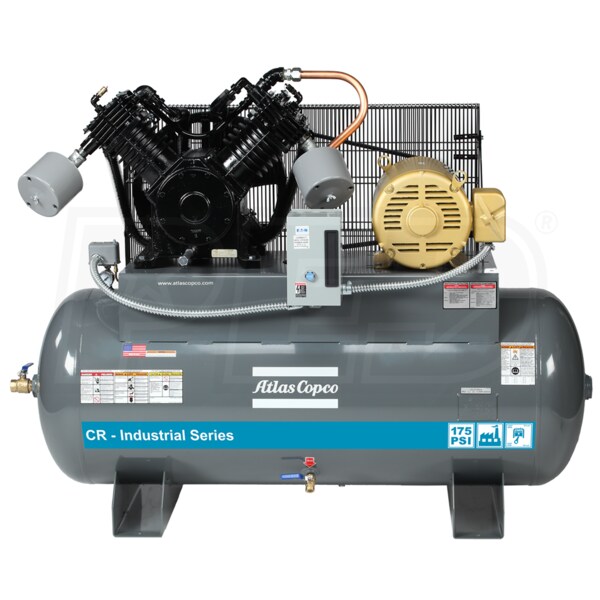

Atlas Copco CR15-TS Industrial 15-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase)

Model:

2020040076

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Atlas Copco CR15-TS Industrial  15-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase)
Atlas Copco CR15-TS Industrial 15-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase)
Model: 2020040076
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208 Volt AC

Phase

3-Phase

CFM

54.5

Tank Size

120

  • Newly Designed CR Industrial Series Piston Air Compressor
  • Ideal solution for the most robust applications
  • Balanced counterweighed crankshaft provides a smooth, easy operation
  • Fully Packaged
  • Low oil level switch for maximum protection
  • Automatic drain prevents air contamination & prolongs tool life
  • Belt guard aftercooler cools air down to provide added protection against water in your system
  • Industrial Splash Lubricated Cast Iron Pump
  • Oversized oil reservoir for low oil temperatures
  • Minimizes vibration, improves cooling, extends compressor life
  • One-piece aluminum head for heat dissipation providing longevity w/ industrial class bearings
  • ODP Belt Drive Motor w/ Magnetic Starter
  • Runs cooler to prevent overheating
  • Open drip proof motors tend to be slightly more efficient because windings are cooler
  • High-Efficiency Intercooler
  • Lowers compressed air temperature and reduces condensation
  • Stainless steel valve design for highest volumetric efficiency
  • Durable Full Cast-Iron Construction
  • Ensures durability and reliability for the most demanding applications
  • Fully enclosed heavy gauge wire belt guard for added protection and ASME safety valves
  • 120-Gallon ASME Air Tank
  • Pressure gauge lets you check at a glance
  • Air pressure switch allows compressor to run at its most efficient capacity
  • Standard 1-Year Bumper To Bumper Warranty
  • Covers defect in materials & workmanship
  • 5-year extended warranty on the pump with purchase of minor and major maintenance kits
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2020040076
specs product image PID-105083
General Information
Product Category
Air Compressor - Stationary
Engine
HP
15
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Conult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
54.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
845 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
72 Inches
Product Width
28 Inches
Product Height
54 Inches
Power Type
Electric
