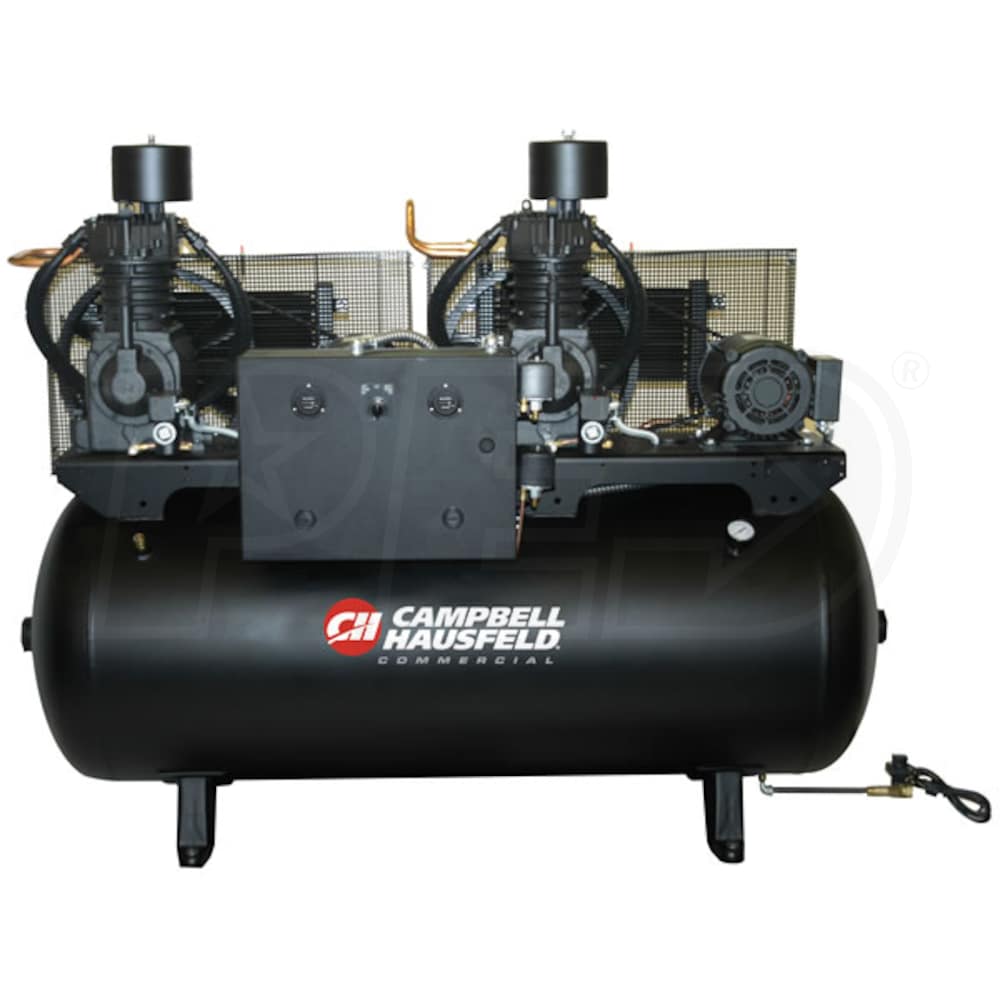

Campbell Hausfeld Commercial 15-HP 120-Gallon Two Stage Duplex Air Compressor (230V 1-Phase)

Campbell Hausfeld Commercial 15-HP 120-Gallon Two Stage Duplex Air Compressor (230V 1-Phase)
Our Price
Compare Prices
Shipping Info
Model: CE7205FP
(Based on expert analysis, manufacturer ratings and customer reviews)
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Model:
AR-15-120H-208-230-1D
$4,905.00
Product Discontinued
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 1-Phase
CFM
50
CFM Rated @ 90 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
50 CFM Rated @ 90 PSI
Tank Size
120 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Two 7.5 HP Motors And Pumps On A Single Air Tank
  • Duplex setup provides built-in backup
  • Each side can run independently or together, depending on load
  • Deluxe UL Listed Control Panel
  • Provides single connection point
  • Alternator Control
  • Provides even run time of compressor pumps and motors
  • 230 Volt Industrial Duty NEMA Motors
  • Two magnetic starters; requires single phase power
  • Cast Iron Two Stage Compressor Pumps
  • Durable and reliable
  • 120 Gallon Air Tank
  • Automatic drain keeps condensation from building up
  • ASME Code rated for safety
  • Belt Guard Mounted Aftercooler
  • Belt enclosure protects the belt & the operator
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
50
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Pump Type
Two-Stage - Dual Pump
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Weight
950 Pounds
Certification
ASME
Consumer Warranty
3 Years
Product Length
90 Inches
Product Width
38 Inches
Product Height
63 Inches
Power Type
Electric
UPC
045564633653
Grade
Commercial
Style
Two Stage 1-Phase
CFM
50
CFM Rated @ 90 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
50 CFM Rated @ 90 PSI
Tank Size
120 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Two 7.5 HP Motors And Pumps On A Single Air Tank
  • Duplex setup provides built-in backup
  • Each side can run independently or together, depending on load
  • Deluxe UL Listed Control Panel
  • Provides single connection point
  • Alternator Control
  • Provides even run time of compressor pumps and motors
  • 230 Volt Industrial Duty NEMA Motors
  • Two magnetic starters; requires single phase power
  • Cast Iron Two Stage Compressor Pumps
  • Durable and reliable
  • 120 Gallon Air Tank
  • Automatic drain keeps condensation from building up
  • ASME Code rated for safety
  • Belt Guard Mounted Aftercooler
  • Belt enclosure protects the belt & the operator
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
50
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Pump Type
Two-Stage - Dual Pump
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Weight
950 Pounds
Certification
ASME
Consumer Warranty
3 Years
Product Length
90 Inches
Product Width
38 Inches
Product Height
63 Inches
Power Type
Electric
UPC
045564633653
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
50
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Pump Type
Two-Stage - Dual Pump
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Weight
950 Pounds
Certification
ASME
Consumer Warranty
3 Years
Product Length
90 Inches
Product Width
38 Inches
Product Height
63 Inches
Power Type
Electric
UPC
045564633653
