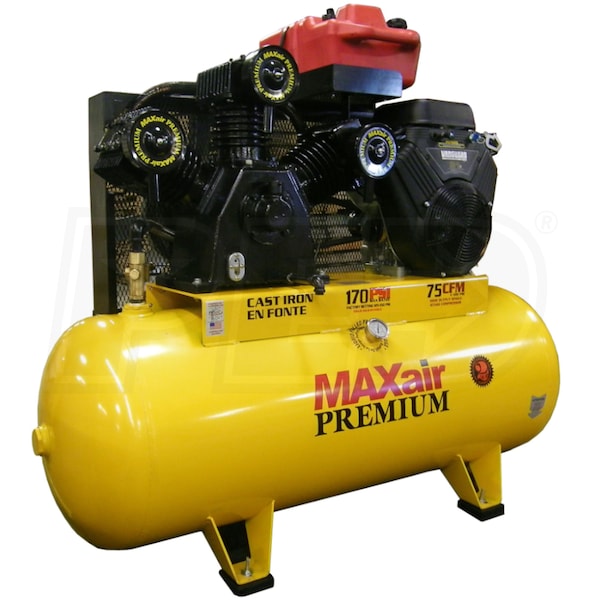

MAXair 31-HP 120-Gallon Truckmount Air Compressor w/ Electric Start Vanguard V-Twin Engine

Model:

31G120TRKE-H-MAP

Write A Review
$8,199.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Out of Stock
Sorry, this product is currently unavailable.
Continue Shopping With These Categories
MAXair 31-HP 120-Gallon Truckmount Air Compressor w/ Electric Start Vanguard V-Twin Engine
MAXair 31-HP 120-Gallon Truckmount Air Compressor w/ Electric Start Vanguard V-Twin Engine
Model: 31G120TRKE-H-MAP
$8,199.00
Out of Stock
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Truck Mount

Engine Brand

Briggs & Stratton Vanguard

CFM

75

Tank Size

120

  • MAXair PREMIUM Truck Mounted Air Compressor
  • Ideal for jobsite needs and mobile service applications
  • Replaces Then Need For a Tow-Behind Compressor
  • For boring tools up to 4", Dirt Tampers & 60 Lb. Breaking Hammer
  • Intermittent use for 90 Lb. Breaking Hammer
  • 31- HP Briggs & Stratton OHV Vanguard Electric Start Engine
  • Electric Start (Battery & Cables Not Included)
  • V-Twin commercial grade engine starts easily, runs quietly
  • Sturdy fully enclosed metal belt guard protects the belt & the user
  • Provided enough power for any job application
  • Removable, 6-Gallon EPA Approved Fuel Tank
  • Allows for easier fill ups on the job site
  • Rugged Cast Iron "V" Style 3 Cylinder Pump
  • V-style minimizes vibration, improves cooling for longer service
  • Efficient heat removal from flywheel for cooler running & longer life
  • Removable cylinders for smooth operation & easy maintenance
  • High efficiency reed valves for maximum performance
  • Premium "Auto Drop" Air Filters
  • Automotive style filter elements; no hassle replacement
  • 120 Gallon ASME Certified Air Tank
  • Heavy duty 1" ball valve included
  • Government registered tank; rated to 200 PSI
  • Engine Idle Control
  • Reduces operating cost & unnecessary wear
  • Low oil shut down for maximum protection
  • Pro-Style Gauges
  • Liquid filled pressure gauge is easy to read
  • Easy-view oil sight gauge for optimum maintenance
  • Convenient Drains
  • Extended oil drain allows for easy access
  • Moisture drain on front of tank eliminates scraped knuckles
  • Generous 2-Year Commercial Manufacturer Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

31G120TRKE-H-MAP
specs product image PID-138995
General Information
Product Category
Air Compressor - Portable
Engine
HP
31
Auto Idle
Yes
Engine Brand
Briggs & Stratton Vanguard
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
75
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
1207 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
73 Inches
Product Width
27 Inches
Product Height
50 Inches
Power Type
Gas
UPC
020791504242
Additional Model Numbers

31G120TRKE-H+MAP, 31G120TRKE-H-MAP
