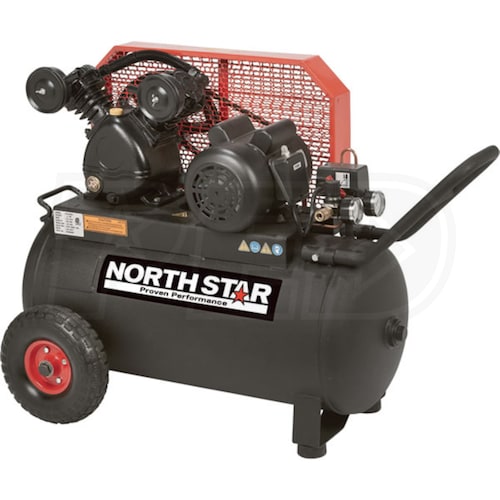

NorthStar 2-HP 20-Gallon (Belt Drive) Dual-Voltage Air Compressor

NorthStar 2-HP 20-Gallon (Belt Drive) Dual-Voltage Air Compressor



Product Discontinued Product Discontinued
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
Product Description
+
Application
Contractor Grade Air Compressors
Style
Portable - Horizontal
CFM
5.5
CFM Rated @ 90 PSI
Tank Size
20
Gallons
Features
Features
  • Dual Voltage 2 HP Induction Motor
  • Low 15/7.5 amp draw for easier starts
  • Engineered with 115V/230V technology to keep you working
  • Cast Iron V-Twin Pump With Cast Iron Heads
  • Extra long service life & no heat transfers between cylinders
  • Belt-Drive Single Stage Oil-Lubricated Pump
  • Runs quietly and delivers long pump life
  • Copper Finned Inter- And After-Coolers
  • Provide effective heat dissipation and less moisture
  • Spherodal Graphite Cast Iron Crankshafts
  • Maximum strength & durability
  • Heavy-Duty Paper Element Filters
  • Keep cylinder heads clean for maximum performance
  • ASME Certified 20-Gallon Tank
  • 3/8" quick connect air outlet
  • Can be used in commercial shops; 135 PSI maximum
  • Portability Kit With Steel Wheels
  • Includes flat-free solid tires for easy transport
  • Factory Warranty
  • 4 year consumer, 2 year commercial use protects your investment
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Engine
HP
2
Pump
CFM
5.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
135 PSI
Oil Sight Glass
No
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
20 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
207 Pounds
Product Length
43 Inches
Product Width
22 Inches
Product Height
30 Inches
Consumer Warranty
4 Years
Commercial Warranty
2 Years
Application
Contractor Grade Air Compressors
Style
Portable - Horizontal
CFM
5.5
CFM Rated @ 90 PSI
Tank Size
20
Gallons
Features
Features
  • Dual Voltage 2 HP Induction Motor
  • Low 15/7.5 amp draw for easier starts
  • Engineered with 115V/230V technology to keep you working
  • Cast Iron V-Twin Pump With Cast Iron Heads
  • Extra long service life & no heat transfers between cylinders
  • Belt-Drive Single Stage Oil-Lubricated Pump
  • Runs quietly and delivers long pump life
  • Copper Finned Inter- And After-Coolers
  • Provide effective heat dissipation and less moisture
  • Spherodal Graphite Cast Iron Crankshafts
  • Maximum strength & durability
  • Heavy-Duty Paper Element Filters
  • Keep cylinder heads clean for maximum performance
  • ASME Certified 20-Gallon Tank
  • 3/8" quick connect air outlet
  • Can be used in commercial shops; 135 PSI maximum
  • Portability Kit With Steel Wheels
  • Includes flat-free solid tires for easy transport
  • Factory Warranty
  • 4 year consumer, 2 year commercial use protects your investment
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Engine
HP
2
Pump
CFM
5.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
135 PSI
Oil Sight Glass
No
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
20 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
207 Pounds
Product Length
43 Inches
Product Width
22 Inches
Product Height
30 Inches
Consumer Warranty
4 Years
Commercial Warranty
2 Years
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Engine
HP
2
Pump
CFM
5.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
135 PSI
Oil Sight Glass
No
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
20 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
207 Pounds
Product Length
43 Inches
Product Width
22 Inches
Product Height
30 Inches
Consumer Warranty
4 Years
Commercial Warranty
2 Years
