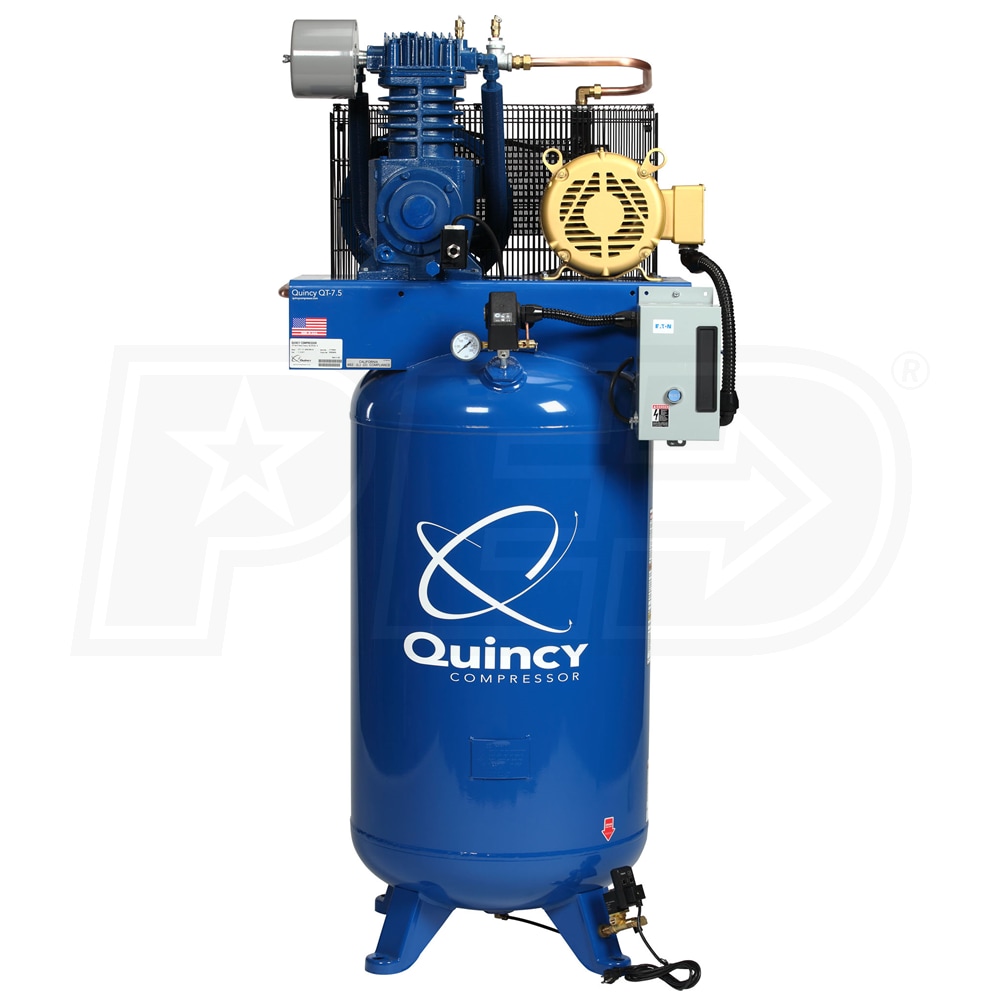

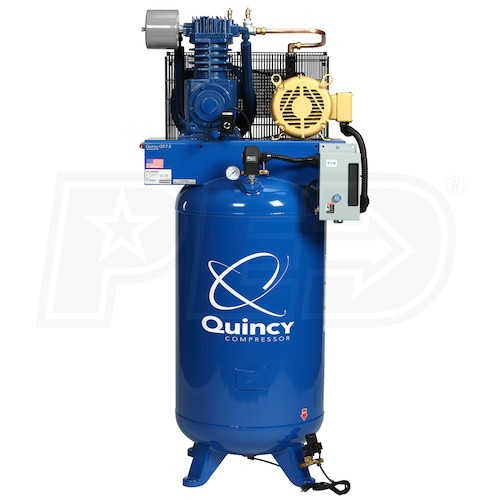

Quincy QT Max 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Model: 273D80VCB23M
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$3,459.99
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
22.6
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.6 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • Heavy Duty Industrial Components
  • 50,000 hour -or more- pump life; 5 year pump warranty
  • 1725 rpm industrial motor to continuously run your business
  • Special Low Oil Protection & Extra Capacity Oil Reserve
  • Extends the life of the splash lubricated, cast-iron pump

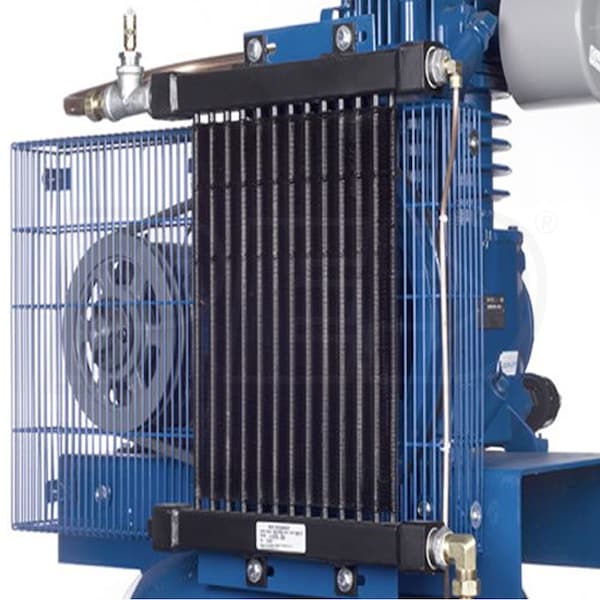

  • High-Efficiency Finned Intercooler
  • Reduces air temperature for maximum performance
  • Magnetic Starter
  • Provides thermal overload protection for the motor
  • 2-Piece Connection Rods
  • Fewer moving parts increases reliability
  • ASME Certified; Proudly Built In The USA
  • Pressure relief valve, discharge and receiver tank for safety
  • Automatic Tank Drain & Air-Cooled Aftercooler
  • Less maintenance and prolongs tank life
  • Allows use with a refrigerated air dryer (sold separately)
  • Generous Factory Warranty
  • 1 year factory warranty is standard
  • No Bull Extended Warranty Available From Quincy
  • Download details under the Specs tab
  • Quincy Part #: 2020039829 - Quincy Model #: 273D80VCB23M
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
730 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
27 Inches
Product Height
74 Inches
Power Type
Electric
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
22.6
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.6 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • Heavy Duty Industrial Components
  • 50,000 hour -or more- pump life; 5 year pump warranty
  • 1725 rpm industrial motor to continuously run your business
  • Special Low Oil Protection & Extra Capacity Oil Reserve
  • Extends the life of the splash lubricated, cast-iron pump
  • High-Efficiency Finned Intercooler
  • Reduces air temperature for maximum performance
  • Magnetic Starter
  • Provides thermal overload protection for the motor
  • 2-Piece Connection Rods
  • Fewer moving parts increases reliability
  • ASME Certified; Proudly Built In The USA
  • Pressure relief valve, discharge and receiver tank for safety
  • Automatic Tank Drain & Air-Cooled Aftercooler
  • Less maintenance and prolongs tank life
  • Allows use with a refrigerated air dryer (sold separately)
  • Generous Factory Warranty
  • 1 year factory warranty is standard
  • No Bull Extended Warranty Available From Quincy
  • Download details under the Specs tab
  • Quincy Part #: 2020039829 - Quincy Model #: 273D80VCB23M
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
730 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
27 Inches
Product Height
74 Inches
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
730 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
27 Inches
Product Height
74 Inches
Power Type
Electric
