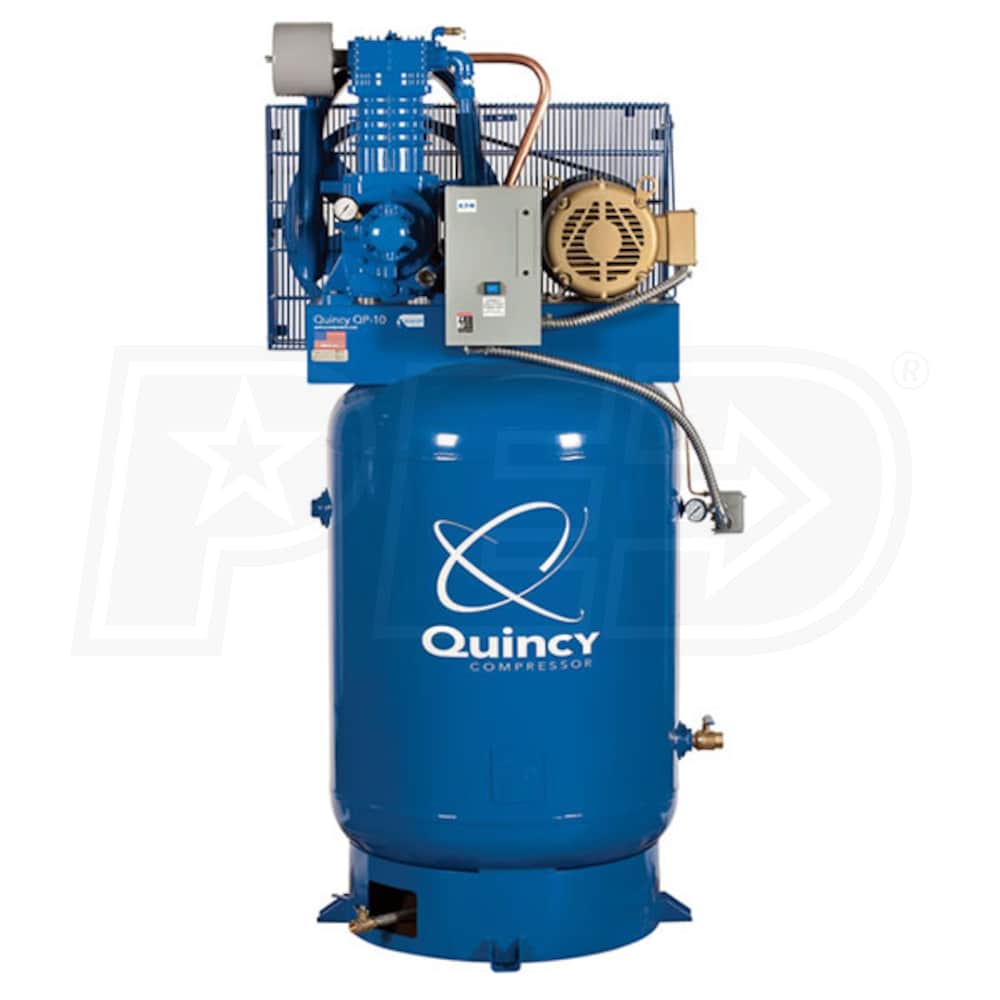

Quincy QP Pro 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (230V 3-Phase)
Model: 3103DS12VCA23
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$4,699.99
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, California, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
35
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features

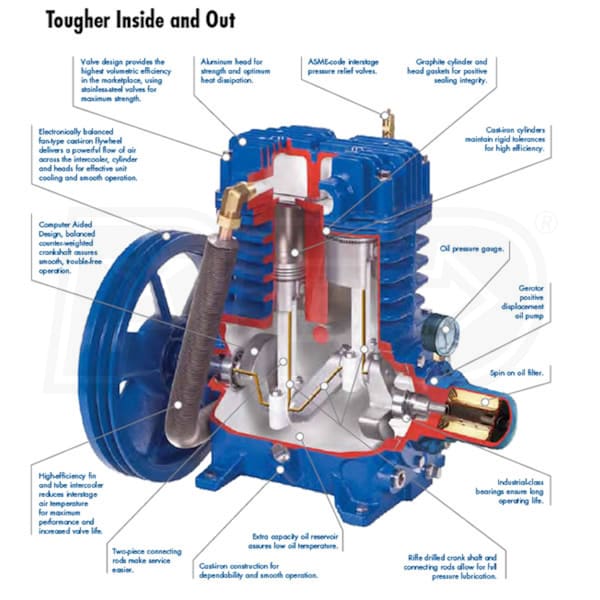

  • Fully Pressure Lubricated 2-Stage Compressor
  • Allows smooth, continuous operation
  • Pressurized oil means less wear on critical components
  • Gerator Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings, & rods
  • Up to 15% longer life than splash-lubricated units
  • Spin-On Oil Filter
  • Lengthens compressor life & improves reliability
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength & volumetric efficiency
  • Graphite Cylinder & Head Gaskets
  • Provide positive sealing integrity
  • Electronically Balanced Fan-Type Cast Iron Flywheel
  • Delivers powerful cooling to intercooler, cylinder, & heads
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance & durability
  • One Year Factory Warranty
  • Extends with Quincy registration & kit listed under Specs tab
  • Built To Order: takes up to 22 business days to ship from Quincy
  • Quincy Part #: 2020019401 - Quincy Model #: 3103DS12VCA23
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
1000 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
30 Inches
Product Height
75 Inches
Power Type
Electric
UPC
791326030443
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
35
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Fully Pressure Lubricated 2-Stage Compressor
  • Allows smooth, continuous operation
  • Pressurized oil means less wear on critical components
  • Gerator Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings, & rods
  • Up to 15% longer life than splash-lubricated units
  • Spin-On Oil Filter
  • Lengthens compressor life & improves reliability
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength & volumetric efficiency
  • Graphite Cylinder & Head Gaskets
  • Provide positive sealing integrity
  • Electronically Balanced Fan-Type Cast Iron Flywheel
  • Delivers powerful cooling to intercooler, cylinder, & heads
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance & durability
  • One Year Factory Warranty
  • Extends with Quincy registration & kit listed under Specs tab
  • Built To Order: takes up to 22 business days to ship from Quincy
  • Quincy Part #: 2020019401 - Quincy Model #: 3103DS12VCA23
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
1000 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
30 Inches
Product Height
75 Inches
Power Type
Electric
UPC
791326030443
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
1000 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
30 Inches
Product Height
75 Inches
Power Type
Electric
UPC
791326030443
