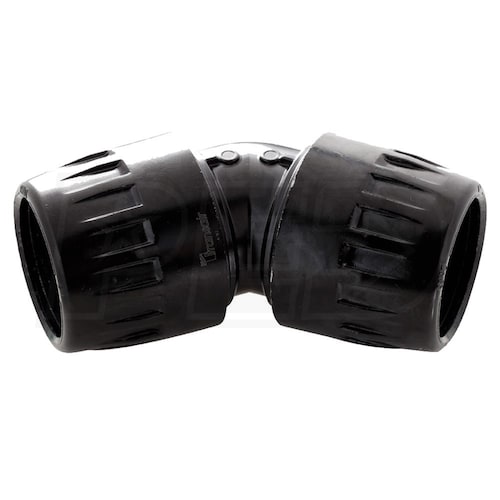

Transair 2-Inch (50mm) Pipe-to-Pipe 45° Elbow Connector


6612 50 00

Write a Review
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Transair  2-Inch (50mm) Pipe-to-Pipe 45° Elbow Connector
Transair 2-Inch (50mm) Pipe-to-Pipe 45° Elbow Connector
Model: 6612 50 00
Product Q&A
How-To Articles


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Transair Fast, Flexible & Easy-To-Use Series Pipe Connectors
  • Most effective and efficient compressed air piping system
  • Offers significant savings on installation and maintenance
  • Helps overcome constraints in structures of industrial buildings
  • Non-Corrosive Treated Aluminum Material
  • 100% recyclable, silicone-free and made of non-flammable materials
  • Interchangeable, lightweight and reusable provides versatility
  • Resistant to minerals, synthetic compressor oils & aggressive environments
  • Full Bore Design
  • Delivers immediate pressurization
  • Consistent inner diameter for both pipe and connectors
  • Low coefficient of friction ensures optimal flow delivered
  • Snap Ring 2-Inch Pipe Connection Technology
  • Prevents connector half from sliding forward & insertion depth error
  • Secures connection between nut and pipe by tightening for final assembly
  • 2" Pipe Outside Diameter
  • Max working pressure 232; Max working temp 140 F
  • 188psi when system is operated between -4 to 140 F
  • 232psi when system is operated between -4 to 115 F
  • Transair 10-Year Guarantee
  • Leak free, easy-to handle and safe to work with on elevated platforms
  • Suitable for compressed air (dry, wet, lubricated), vacuum & inert gases
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to:


6612 50 00
Air Tools
Max Tool PSI
1.69 Pounds
Consumer Warranty
10 Years
Commercial Warranty
10 Years
Product Length
15 Inches
Product Width
7.5 Inches
Product Height
8.5 Inches
