The Chicago Pneumatic 15-hp 120-gallon two-stage duplex air compressor (208/230v 1-phase) is available for purchase today.

Read Chicago Pneumatic RCP-15121D reviews before checking out.


Get the best deal on your new Chicago Pneumatic RCP-15121D.

No coupon code required.

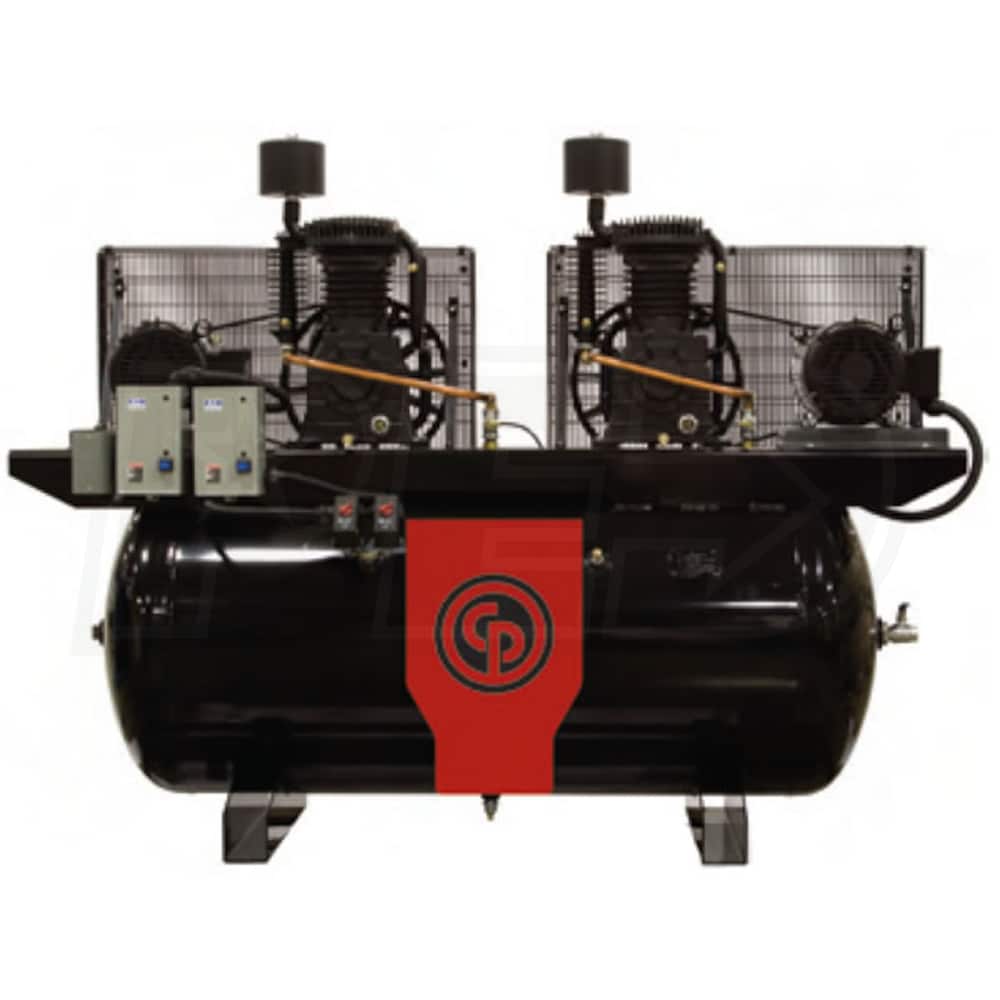

Chicago Pneumatic 15-HP 120-Gallon Two-Stage Duplex Air Compressor (208/230V 1-Phase)

Close
Chicago Pneumatic Air Compressors and AccessoriesModel: RCP-15121D
(Based on expert analysis, manufacturer ratings and customer reviews)
3.0 out of 53.0 out of 53.0 out of 53.0 out of 53.0 out of 5
2 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 7-14 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$4,599.99
+$75.00 What is Lift Gate Service?
Extended Warranty
Excludes CA

StoreShippingPriceShop

Free Freight$4,599.99
No Sales Tax*
(Except IL)
Buy

$4,674.99
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • 2
    Reviews
  • Articles
  • Shipping
  • Accessories
Grade
Commercial Grade Air Compressors
Style
Two-Stage Air Compressors
Voltage
208-230 Volt AC
1-Phase
HP
15
CFM
44.56
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Duplex Compressor Delivers Great Performance And Value
2 pumps and motors with an alternator for optimum performance

Dependable And Easy To Use
Built in redundancy to make sure you get the job done
Alternating controls for balanced unit wear & performance

Sturdy Construction Prolongs The Life Of Your Investment
Solid cast iron cylinders on 2, 7.5 HP motors
Dual pressure switch controls
Fully enclosed with high flow belt guard

Professional Features
120 gallon tank and safety valves are ASME/CRN certified
Magnetic starters; single phase power
Full 2 year warranty
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
44.56
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage - Dual Pump
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Horizontal
Overview
Certification
ASME/CRN
Weight
886 Pounds
Product Length
77 Inches
Product Width
27 Inches
Product Height
56 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Model
RCP-15121D
Download Documents
Need Help? Ask Our Air Compressor Experts.
View Accessories For This Product.
Read Reviews
How-To Library

*Ask Steve about the Chicago Pneumatic RCP-15121D. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit

Questions before buying? Ask Steve about this item. Sorry, do not submit repair related questions.

Chicago Pneumatic RCP-15121D Reviews & Ratings
2 Reviews  Sort by

Michael K.
Arnold, MD
Purchased from Air Compressors Direct
Purchased 12/18/15
Most Helpful Critical Review
REVIEWED
FEB.
02
2016
2 out of 52 out of 52 out of 52 out of 52 out of 5
Jury Still Out
Purchased the compressor for a new construction project...a maintenance building for the US Fish & Wildlife Commission located in Monroe, LA. We have not yet hooked it up. We wanted to have it on site for when we are ready to install it.

Very disappointed that it was shipped without an Owner's Manual or information regarding required clearances. Had to contact Chicago Pneumatic technical dept who then referred me to their website to download the 36 page manual....which is not all... more
Michael Does Not Recommend This Product
Steve, the Air Compressor Expert
Product Expert
Michael,
We sorry to hear about the inconvenience with the operators manual. Unfortunately, many compressor companies have eliminated printed manuals, but they should at least include a CD-ROM with the equipment. Please let us know if there's anything else we can do to assist.
more
Was this review helpful?
00
Shaun M.
Grand Junction, CO
Purchased from Air Compressors Direct
Purchased 11/12/15
REVIEWED
DEC.
08
2015
4 out of 54 out of 54 out of 54 out of 54 out of 5
Quality Control
I think that the air compressor in general is going to be a great addition to our truck shop but we had to have a specialized electrician come and rewire.

There were wires missing and wires backwards and a normal qualified electrician could not get it to work!!!!!
Shaun Does Not Recommend This Product
Steve, the Air Compressor Expert
Product Expert
Shaun,
Defects in materials and workmanship are covered by the Factory Warranty for 2 years from the date of delivery.

Since you are still within the warranty period, the correct procedure would have been to call Chicago Pneumatic, toll free, at (877) 861-2722 so they could send an Authorized Service Technician to repair the unit.

You could still give them a call to see if they will help cover the cost of your electrician, but they could also say that by not using an Authorized Technician you may have voided your warranty...it will be up to Chicago Pneumatic to decide.
more
Was this review helpful?
00
