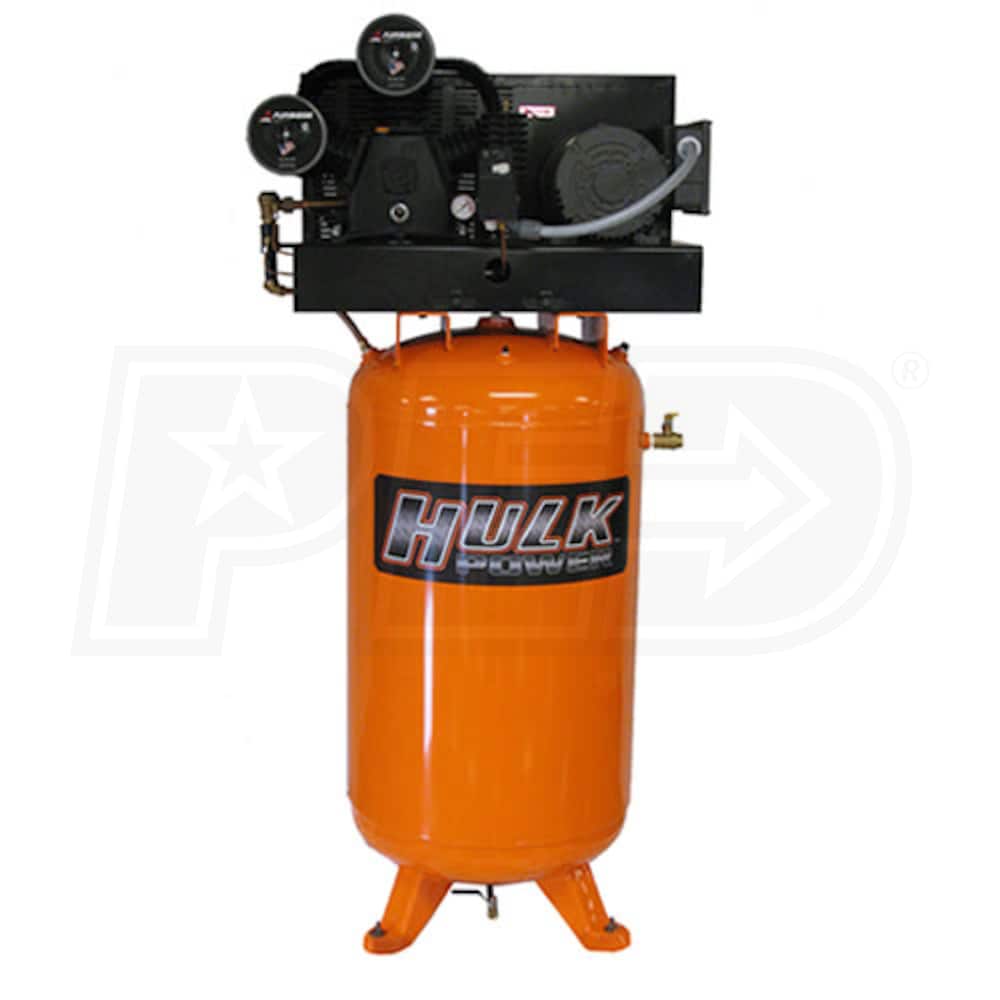

HULK 5-HP 80-Gallon Two-Stage Cast Iron Air Compressor (208/230V 1-Phase)
Model:
HP05V080Y1
+
Share This Product
Similar Products
Recommended Accessories

Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
3
$3,499.99
Factory-Direct
Model: ACS-23105-80V
$4,099.00
Factory-Direct
$3,469.99
Factory-Direct
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
16.5
Tank Size
80
- Solid Cast Iron Disc Valve Two-Stage Pump
- Designed for extended life
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life)
- BIG AIR DELIVERY - 175 Max PSI
- Designed for maximum performance of high demand air tools
- 100% Duty Cycle 5-HP Industrial Motor
- Designed for continuous run opperation
- OSHA Approved Belt Guard
- Heavy duty steel design provides safety and piece of mind
- 80-Gallon Air Receiver
- Provides more air for longer run times on air tools
- Spread Voltage Motor
- Operates on 208V or 230V
- Easy Access Drain Valve & Oil-Level Sight Glass
- Makes it simple to keep moisture out of the pump and tank
- Easily check the oil level at a glance
- Integrated Magnetic Starter Built Into Switch
- Included and easy to wire - $100 Retail Value
- Low RPM Pump
- Up to 90% slower & up to 70% quieter than other brands
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
HP05V080Y1

Engine
HP
5
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16.5
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Weight
720 Pounds
Consumer Warranty
3 Years
Commercial Warranty
2 Years
Product Length
34 Inches
Product Width
24 Inches
Product Height
72 Inches
Power Type
Electric
UPC
815002010069
