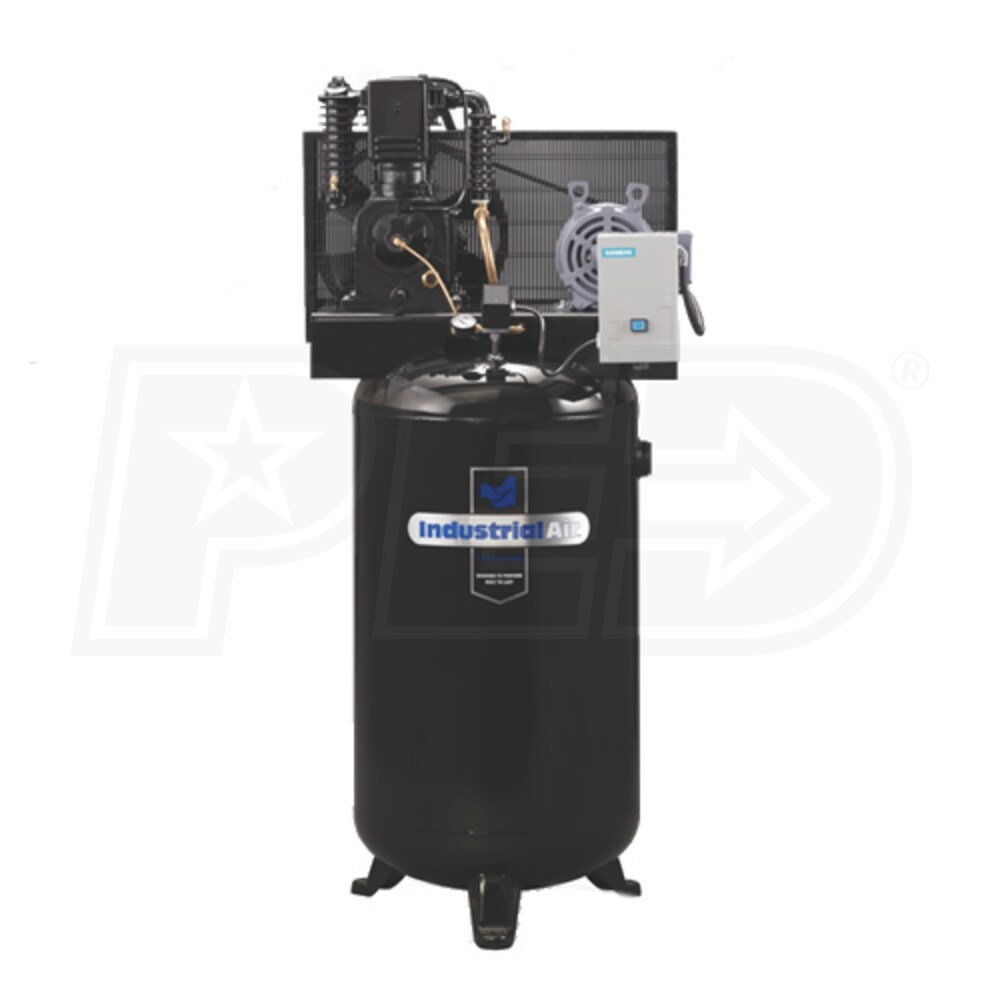

Industrial Air 5.5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase) w/ Starter

Model:

IV5038023

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Industrial Air 5.5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase) w/ Starter
Industrial Air 5.5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase) w/ Starter
Model: IV5038023
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

3-Phase

CFM

14.6

Tank Size

80

  • Industrial Performance Delivers Maximum CFM @ 175 PSI
  • The power to operate more than one air tool or device at one time
  • Cast Iron, Industrial Duty, Two-Stage Pump
  • Hardened steel disc valves
  • Over-sized taper roller bearings
  • Fully balanced cast iron flywheel
  • Splash type lubrication
  • Industrial Class 230V/460V 3-Phase Electric Motor
  • Designed for maximum performance and efficiency
  • Pre-Wired & Mounted Magnetic Starter
  • Saves time and money
  • Uniquely Designed Metal Belt Guard
  • Improves cooling by as much as 60°F
  • Large 80-Gallon Vertical Air Receiver
  • Provides more air for longer run times on air tools
  • Optimizes shop space compared to a horizontal tank
  • 2 Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

IV5038023
specs product image PID-3710
Engine
HP
5.5
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
17.5
Recommended Breaker
35 Amp Breaker
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14.6
CFM Rated @
175 PSI
CFM @ 90 PSI
15.3
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Tank
Tank Size
80 Gallons
Tank Orientation
Vertical
Overview
Weight
629 Pounds
Certification
UL
Consumer Warranty
2 Years
Product Length
38 Inches
Product Width
29 Inches
Product Height
76 Inches
Power Type
Electric
UPC
846212001622
