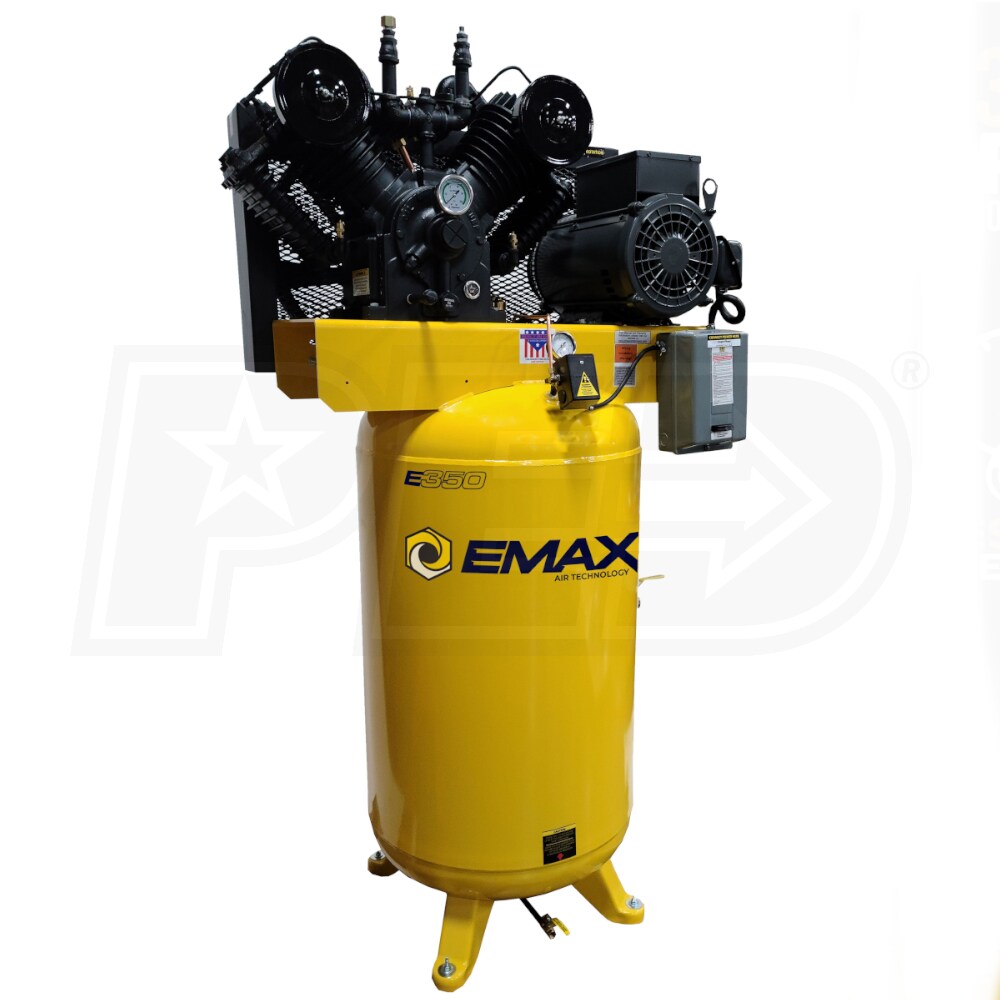

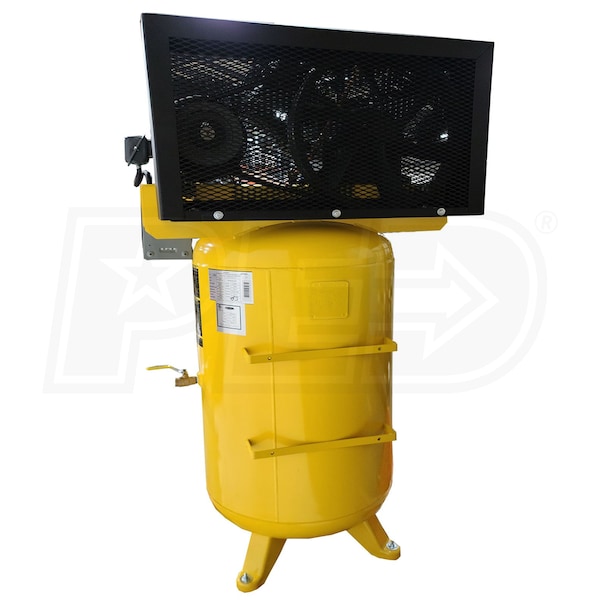

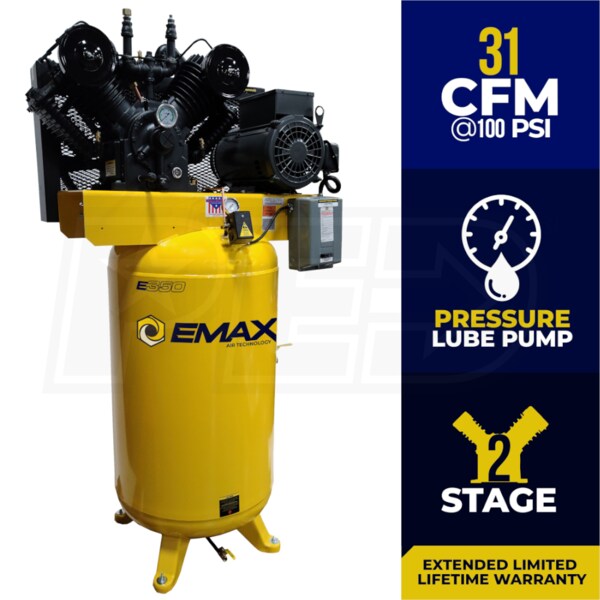

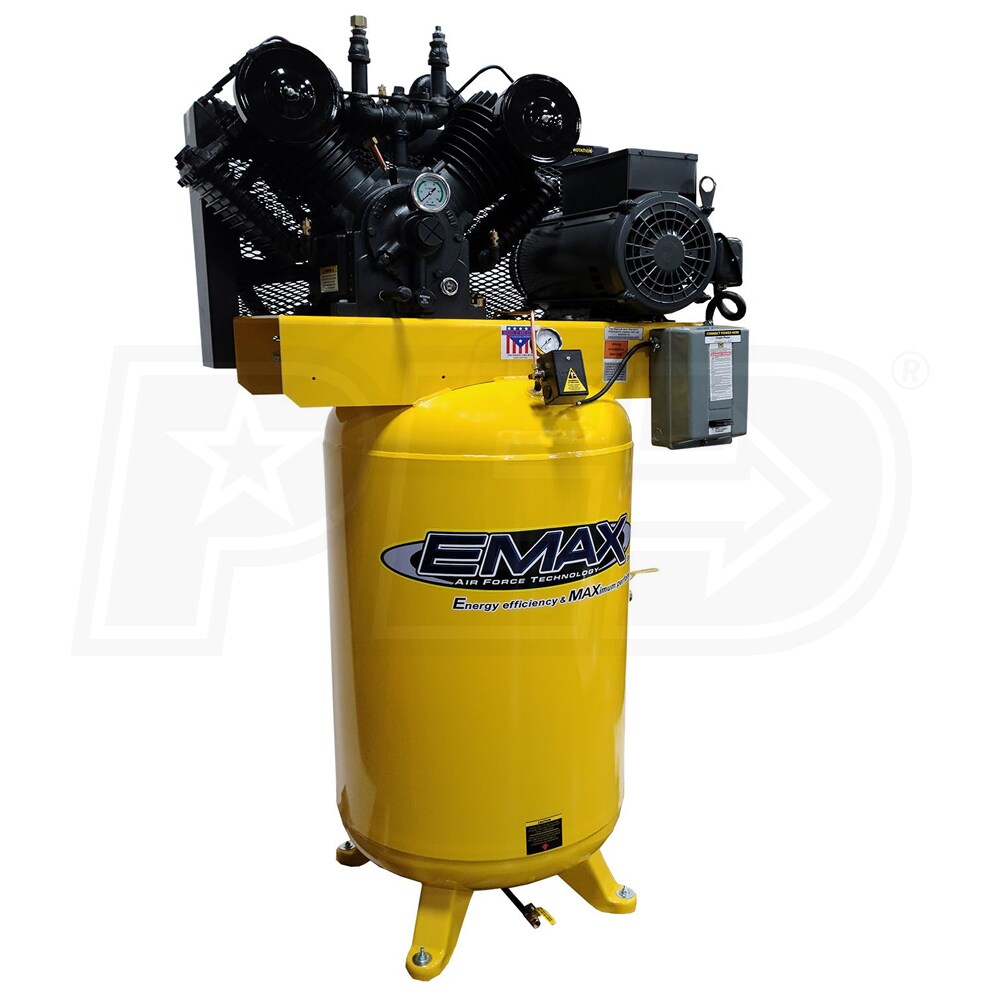

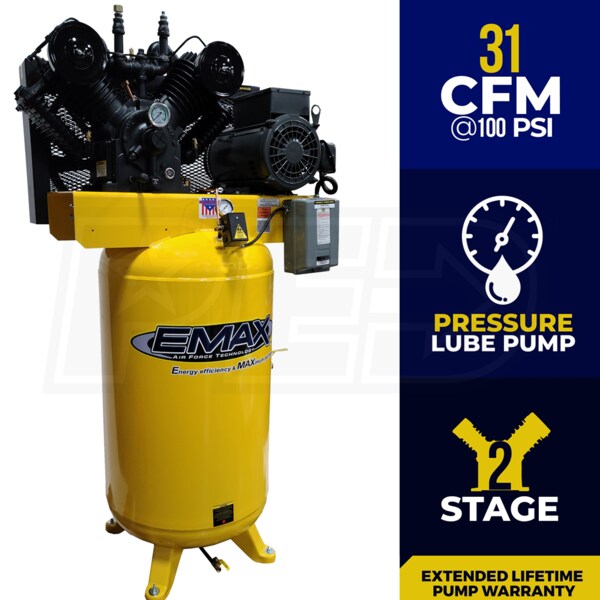

EMAX Industrial 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)

EMAX Industrial 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Our Price
Compare Prices
Shipping Info
Model: EI07V080V1
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (4)
Write A Review
$2,719.99

Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Add-Ons
+$50.00
Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 4
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 1-Phase
CFM
26
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
26 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features

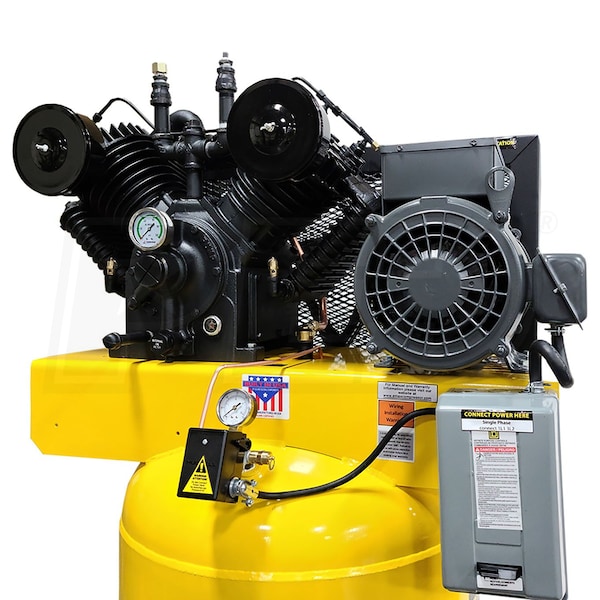

  • Pressure Lubricated Two-Stage Cast Iron Pump
  • Durable & reliable; runs at 600 RPM
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • All Steel Rebuildable Connecting Rods
  • Built for easy maintenance, maximum performance & durability
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up & extends pump life

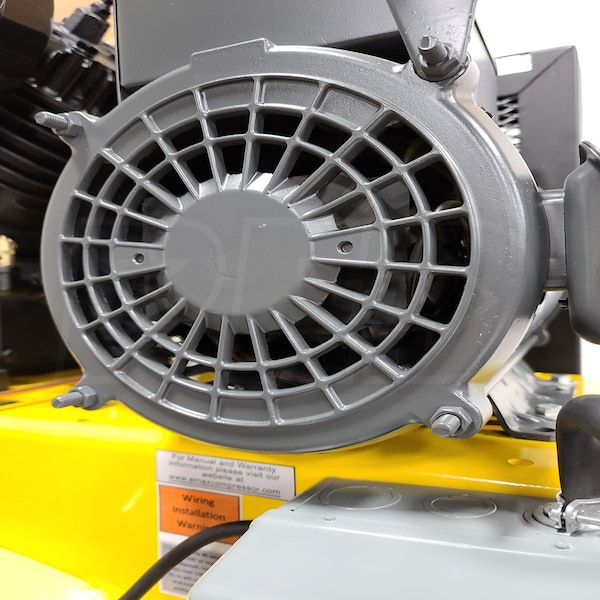

  • 7.5-HP Lincoln Industrial Grade Motor
  • Low 1750 RPM design extends motor life
  • Also provides high starting & running torque

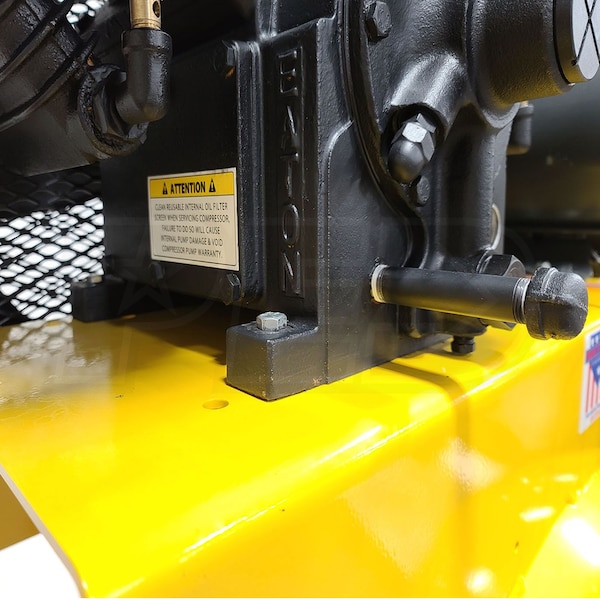

  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 5 Year Limited Warranty On Air Compressor Tank & Lifetime Limited Warranty On Pressure Lubricated Pump
  • 5 years on compressor components
  • ASME Rated Tank
  • 3/4" air outlet; rated 175 PSI maximum
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Engine
HP
7.5
Pump
CFM
26
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
938 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Product Length
34 Inches
Product Width
24 Inches
Product Height
73 Inches
Power Type
Electric
UPC
815002012049
Additional Model Numbers
PE07V080V1, EI07V080V1
Grade
Commercial
Style
Two Stage 1-Phase
CFM
26
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
26 CFM Rated @ 175 PSI
Tank Size
80 Gallons
