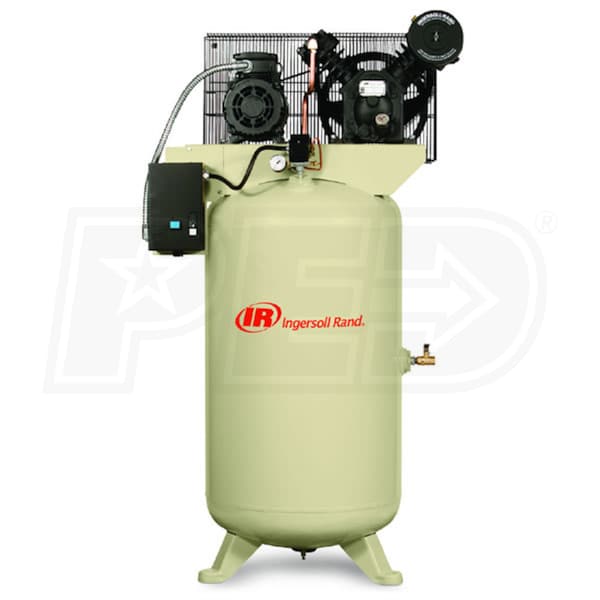

Ingersoll Rand 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)

Model:

2340N5.230-3

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Ingersoll Rand 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Ingersoll Rand 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Model: 2340N5.230-3
Was $1,729.99
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

3-Phase

CFM

14.7

Tank Size

80

  • Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings
  • High Efficiency Parts
  • High-efficiency stainless steel valves
  • High-efficiency intercooler
  • High-efficiency inlet air filters with sound attenuation baffles
  • 2-Piece Connection Rods
  • Less moving parts increases reliability
  • High-Efficiency Intercooler
  • Lowers compressed air temperature and reduces condensation
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Fully Tested
  • All units are prewired and thoroughly tested prior to shipment
  • American Pride
  • Proudly built in the U.S.A.
  • Startup Kit Recommended By Ingersoll Rand
  • 32305880 purchased with unit extends warranty by 1 year
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2340N5.230-3
specs product image PID-2851
Motor
Voltage
230 Volt AC
Phase
3-Phase
Amp Draw
15.2
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14.7
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Overview
Weight
400 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Power Type
Electric
