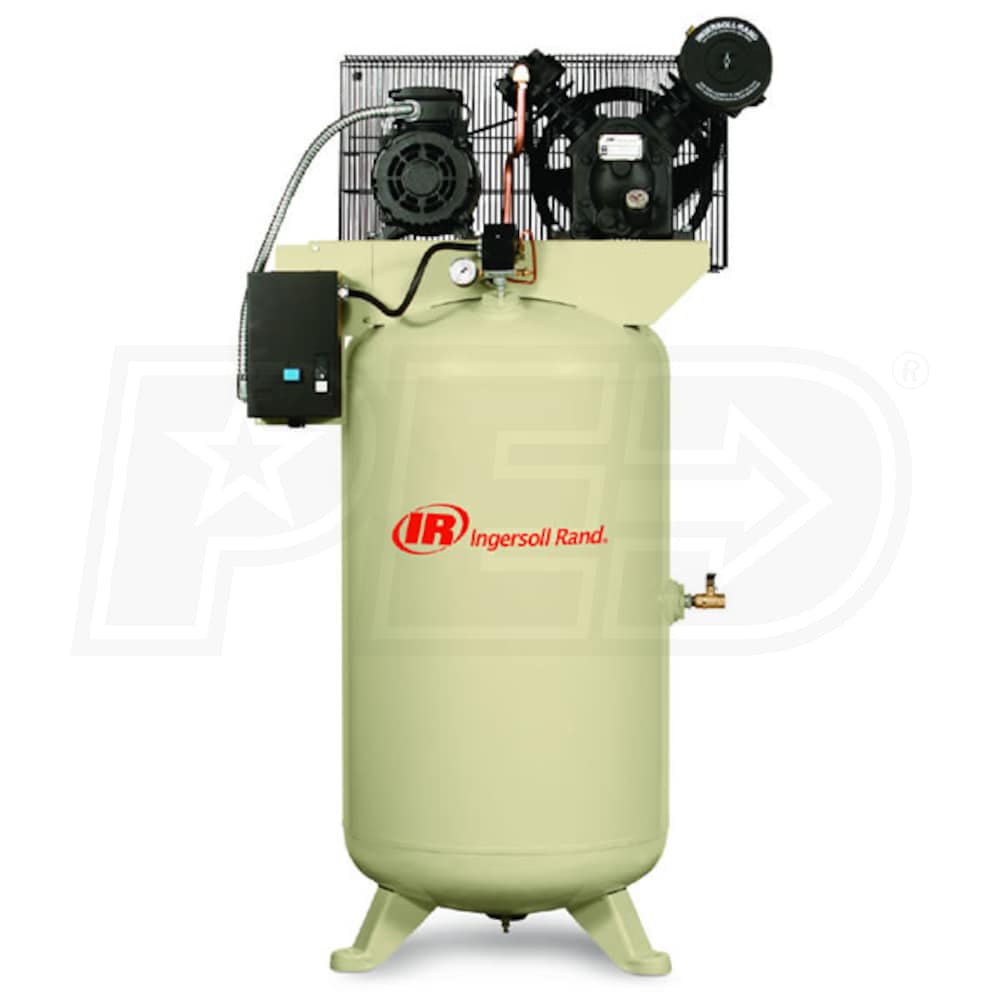

Ingersoll Rand Type 30 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Model: 2475N5-230.3
Recommended
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(3)
Write a Review
$2,199.99
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii, or any destination outside of the United States
Phase
Volts
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 3
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
16.8
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
16.8 CFM Rated @ 175 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings
  • High Efficiency Parts
  • High-efficiency stainless steel valves
  • High-efficiency intercooler
  • High-efficiency inlet air filters with sound attenuation baffles
  • 2-Piece Connection Rods
  • Less moving parts increases reliability
  • High-Efficiency Intercooler
  • Lowers compressed air temperature and reduces condensation
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Fully Tested
  • All units are prewired and thoroughly tested prior to shipment
  • Ingersoll Rand Reciprocating Compressors Ship Dry
  • Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
15.2
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.8
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
500 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
663023031002
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
16.8
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
16.8 CFM Rated @ 175 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings
  • High Efficiency Parts
  • High-efficiency stainless steel valves
  • High-efficiency intercooler
  • High-efficiency inlet air filters with sound attenuation baffles
  • 2-Piece Connection Rods
  • Less moving parts increases reliability
  • High-Efficiency Intercooler
  • Lowers compressed air temperature and reduces condensation
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Fully Tested
  • All units are prewired and thoroughly tested prior to shipment
  • Ingersoll Rand Reciprocating Compressors Ship Dry
  • Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
15.2
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.8
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
500 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
663023031002
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
15.2
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.8
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
500 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
663023031002
Reviews
(3)
+
Ingersoll Rand 2475N5-230.3 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
Can you supply OEM spare parts for the IR 2475N5, 230V,3ph compressor?
Charles Welch
from Kentucky
May 29, 2012
Answer
We do not sell replacement/repair parts but here's the link to locate the nearest IR service center to you:
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
