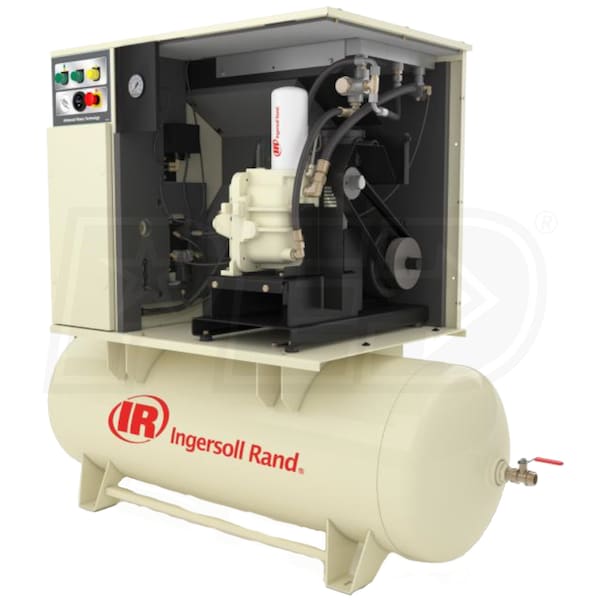

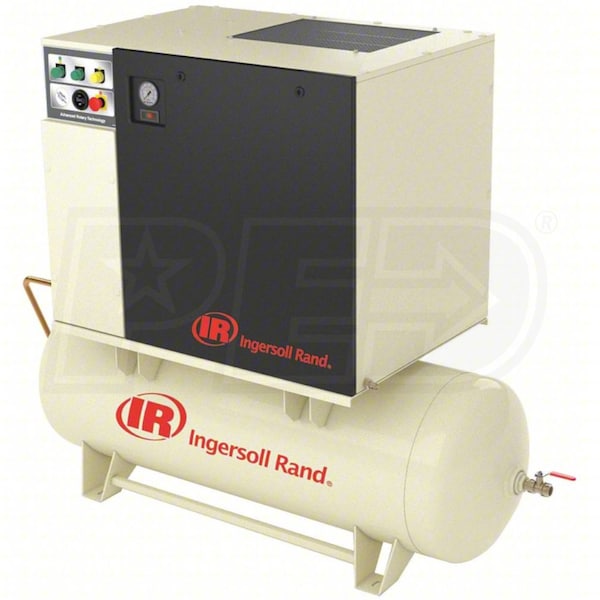

Ingersoll Rand 7.5-HP 80-Gallon Rotary Screw Air Compressor (230V 1 Phase 150PSI)
Model: UP6-7.5-150
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(2)
Write a Review
Q&A (2)
$5,839.99
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 2
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Commercial
Style
Rotary Screw 1-Phase
CFM
25
CFM Rated @ 150 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
25 CFM Rated @ 150 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Energy Efficient
  • More air for less horsepower reducing yearly energy cost
  • Smart Energy Controls
  • Eliminate running unloaded by cycling the compressor on/off
  • Whisper Quiet Operation
  • Allows for installation closer to point-of-use
  • Sound levels as low as 68dBa
  • Compact Footprint Design
  • Frees up valuable floor space and reduces install costs
  • Fewer Connections
  • Eliminates leaks and pressures drops maximizing reliability
  • Simple Diagnostics
  • Displays operating status and run hours reducing downtime
  • Poly-V Belt Drive
  • Drive system eliminates belt stretch and increases air output
  • High-Efficiency Filter
  • Clean air quality to run tools and equipment long term
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
25
CFM Rated @
150 PSI
Max PSI
150 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
925 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
54 Inches
Product Width
29 Inches
Product Height
61 Inches
Power Type
Electric
UPC
678384030953
Additional Model Numbers
UP6-7.5-150.230-1, UP6-7.5-150
Grade
Commercial
Style
Rotary Screw 1-Phase
CFM
25
CFM Rated @ 150 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
25 CFM Rated @ 150 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Energy Efficient
  • More air for less horsepower reducing yearly energy cost
  • Smart Energy Controls
  • Eliminate running unloaded by cycling the compressor on/off
  • Whisper Quiet Operation
  • Allows for installation closer to point-of-use
  • Sound levels as low as 68dBa
  • Compact Footprint Design
  • Frees up valuable floor space and reduces install costs
  • Fewer Connections
  • Eliminates leaks and pressures drops maximizing reliability
  • Simple Diagnostics
  • Displays operating status and run hours reducing downtime
  • Poly-V Belt Drive
  • Drive system eliminates belt stretch and increases air output
  • High-Efficiency Filter
  • Clean air quality to run tools and equipment long term
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
25
CFM Rated @
150 PSI
Max PSI
150 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
925 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
54 Inches
Product Width
29 Inches
Product Height
61 Inches
Power Type
Electric
UPC
678384030953
Additional Model Numbers
UP6-7.5-150.230-1, UP6-7.5-150
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
25
CFM Rated @
150 PSI
Max PSI
150 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
925 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
54 Inches
Product Width
29 Inches
Product Height
61 Inches
Power Type
Electric
UPC
678384030953
Additional Model Numbers
UP6-7.5-150.230-1, UP6-7.5-150
Reviews
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
(2)
+−
Ingersoll Rand UP6-7.5-150 Reviews & Ratings
Product Q&A
(2)
+−
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+−
Does this come in 50HZ single Phase 230V?
Robert
from Florida
June 21, 2018
Answer
Not that we have access to. I recommend contacting Ingersoll directly at 800-483-4981 or contact Atlas because I am aware that they sell 50HZ units; 866-546-3588.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+−
Hello Steve! I have a machine shop with 4 CNC machines and I want to buy a rotary screw air compressor. Right now I'm having a two stage air compressor and its noisy. My question is what is advantage of using a rotary screw air compressor? what is the difference? If I buy it should I buy 3-phase or single phase? 80 gallon tank should be enough? higher the horsepower the better? please give me your advice. Thank you very much!
Kenny Vu
from California
April 10, 2011
Answer
Hello,
Rotary Screw air compressors are great for applications where a continuous delivery of air is required. And they are much quieter than similarly sized reciprocating (piston) air compressors. Three phase power may save you some money on your utility bill versus a single phase unit. Consult with your electrician to make sure the proper phase & voltage is available in your area.
Regards,
Customer Service
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
