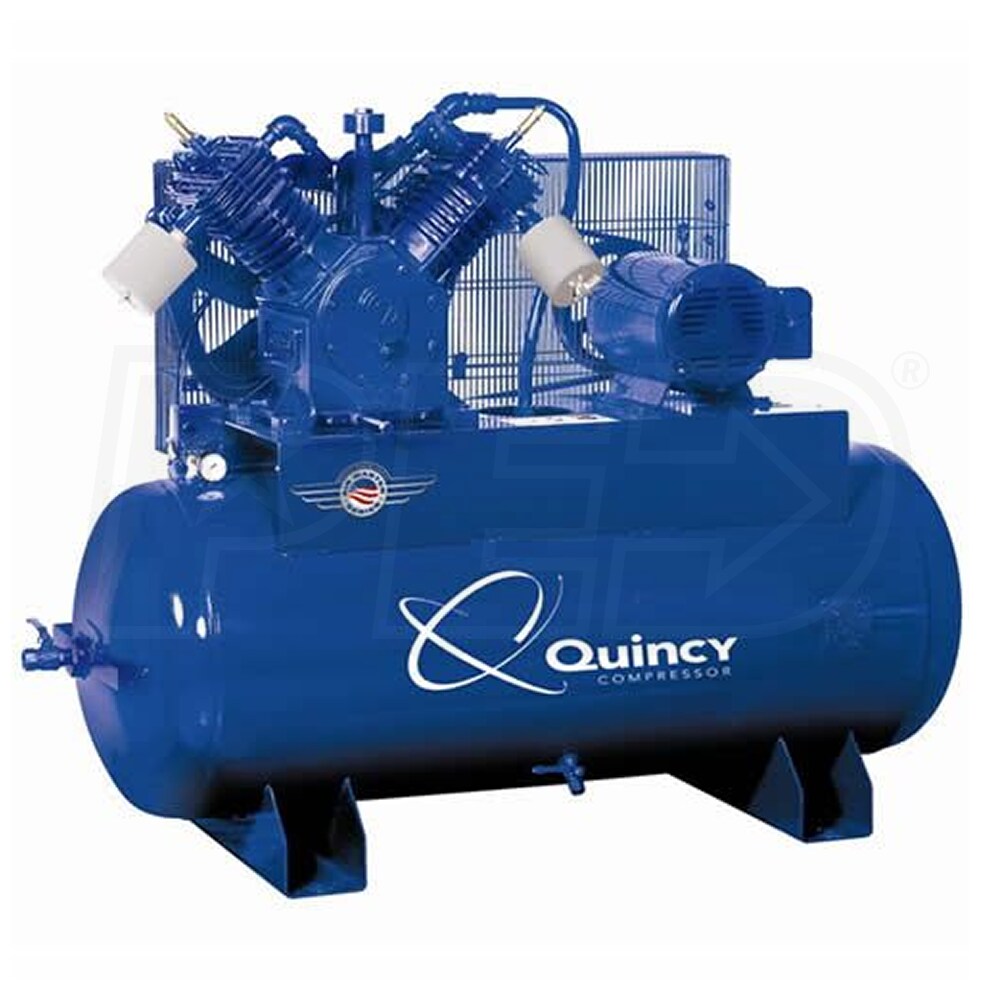

Quincy QT MAX 15-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model: 2153D12HCA46M
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$5,499.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
51
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
51 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Heavy-Duty Industrial Air Compressor
  • 50,000 or more hour pump life
  • Splash lubricated, cast-iron pump for dependability
  • 1750 RPM industrial motor will continuously run your business
  • Extra capacity oil reserve
  • Built In Air-Cooled Aftercoolers
  • Temperature driven variable speed fan for continuous heat removal
  • High-Efficiency Finned Intercooler
  • Reduces air temperature for maximum performance
  • Magnetic Starter
  • Provides thermal overload protection for the motor
  • Automatic Electronic Tank Drain
  • Eliminates daily maintenance; reduces moisture in your air lines & protects tank from rust
  • Low Oil Cut-Off Switch
  • Protects pump if oil level falls too low
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
  • Must Include purchase of EWK-5 Maintenance Kit at time of purchase
  • Download the Warranty page under the Manual tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020016105 Quincy Model #: 2153D12HCA46M
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
21
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
51
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
923 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
78 Inches
Product Width
28 Inches
Product Height
55 Inches
Power Type
Electric
UPC
791326030290
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
51
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
51 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Heavy-Duty Industrial Air Compressor
  • 50,000 or more hour pump life
  • Splash lubricated, cast-iron pump for dependability
  • 1750 RPM industrial motor will continuously run your business
  • Extra capacity oil reserve
  • Built In Air-Cooled Aftercoolers
  • Temperature driven variable speed fan for continuous heat removal
  • High-Efficiency Finned Intercooler
  • Reduces air temperature for maximum performance
  • Magnetic Starter
  • Provides thermal overload protection for the motor
  • Automatic Electronic Tank Drain
  • Eliminates daily maintenance; reduces moisture in your air lines & protects tank from rust
  • Low Oil Cut-Off Switch
  • Protects pump if oil level falls too low
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
  • Must Include purchase of EWK-5 Maintenance Kit at time of purchase
  • Download the Warranty page under the Manual tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020016105 Quincy Model #: 2153D12HCA46M
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
21
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
51
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
923 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
78 Inches
Product Width
28 Inches
Product Height
55 Inches
Power Type
Electric
UPC
791326030290
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
21
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
51
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
923 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
78 Inches
Product Width
28 Inches
Product Height
55 Inches
Power Type
Electric
UPC
791326030290
