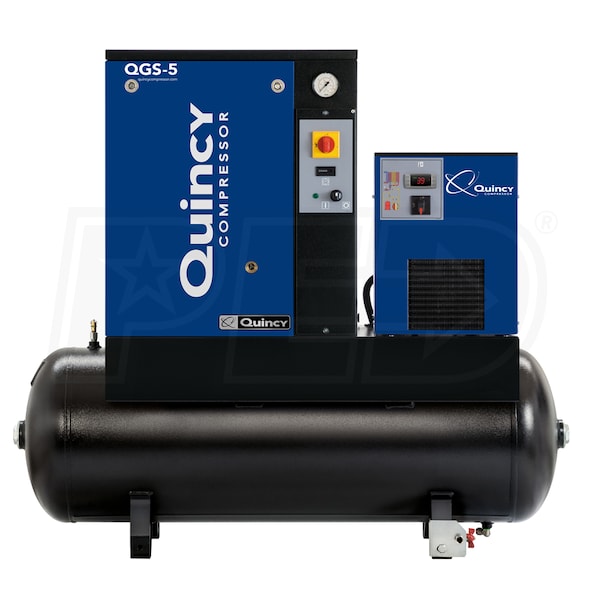

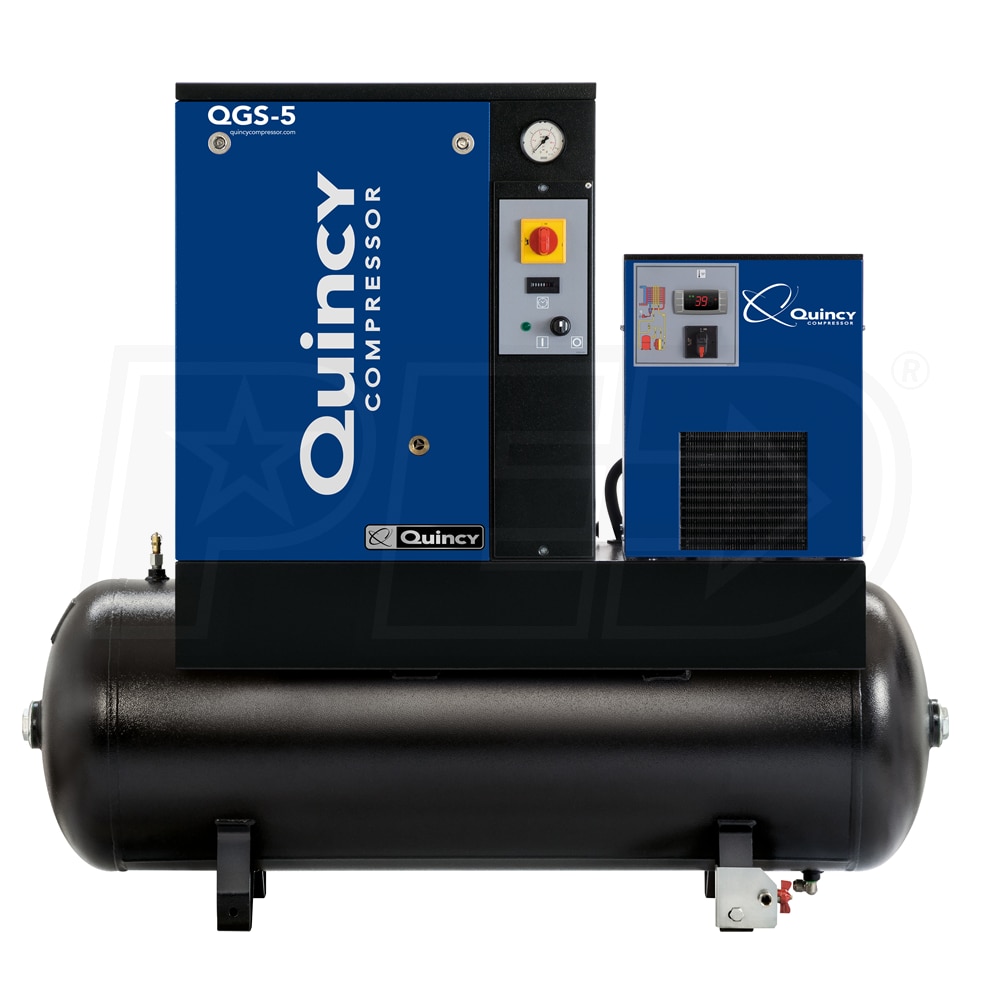

Quincy QGS 5-HP 60-Gallon Rotary Screw Compressor w/ Dryer (208/230/460V 3-Phase)
Model: 4152005424
Recommended
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$6,468.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
16.6
CFM Rated @ 150 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
16.6 CFM Rated @ 150 PSI
Tank Size
60 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Superior Compressed Air Turn-Key Performance
  • Oil injected twin screw pump provides reliable, quiet power
  • Integrated Refrigerated Air Dryer
  • Condenses the air to remove airborne moisture, dirt, and oil
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Standard Quiet Enclosure
  • Runs without the vibration & noise of piston compressors
  • Ideal for most applications; 16.6 CFM at 150 PSI
  • 62 dBA for reduced sound fatigue in work area installations
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects tools
  • Start/Stop Operation
  • UL and cUL control panel compliant; 36°F minimum temperature
  • Long Life V-Belt Drive
  • Less maintenance, reliable operation
  • TEFC Electric Motor
  • 3-phase unit runs on 200,208/230 or 460V power (IP 55 wash down); must be wired on-site by a licensed electrician
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start Up
  • Covers airend, motor, separator reservoir, cooler/heat exchanger
  • Quincy Part #: 4152005424 - Quincy Model #: QGS 5 HPD 3
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
28
Recommended Breaker
60 Amp Breaker
Engine
HP
5
Engine Low Oil Shut-off
Yes
Pump
CFM
16.6
CFM Rated @
150 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Filter
Yes
Overview
Weight
543 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
22 Inches
Product Height
50 Inches
Power Type
Electric
UPC
791326011572
Additional Model Numbers
4152002717, 4152005424
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
16.6
CFM Rated @ 150 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
16.6 CFM Rated @ 150 PSI
Tank Size
60 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Superior Compressed Air Turn-Key Performance
  • Oil injected twin screw pump provides reliable, quiet power
  • Integrated Refrigerated Air Dryer
  • Condenses the air to remove airborne moisture, dirt, and oil
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Standard Quiet Enclosure
  • Runs without the vibration & noise of piston compressors
  • Ideal for most applications; 16.6 CFM at 150 PSI
  • 62 dBA for reduced sound fatigue in work area installations
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects tools
  • Start/Stop Operation
  • UL and cUL control panel compliant; 36°F minimum temperature
  • Long Life V-Belt Drive
  • Less maintenance, reliable operation
  • TEFC Electric Motor
  • 3-phase unit runs on 200,208/230 or 460V power (IP 55 wash down); must be wired on-site by a licensed electrician
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start Up
  • Covers airend, motor, separator reservoir, cooler/heat exchanger
  • Quincy Part #: 4152005424 - Quincy Model #: QGS 5 HPD 3
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
28
Recommended Breaker
60 Amp Breaker
Engine
HP
5
Engine Low Oil Shut-off
Yes
Pump
CFM
16.6
CFM Rated @
150 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Filter
Yes
Overview
Weight
543 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
22 Inches
Product Height
50 Inches
Power Type
Electric
UPC
791326011572
Additional Model Numbers
4152002717, 4152005424
Product Specs
+
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
28
Recommended Breaker
60 Amp Breaker
Engine
HP
5
Engine Low Oil Shut-off
Yes
Pump
CFM
16.6
CFM Rated @
150 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Filter
Yes
Overview
Weight
543 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
22 Inches
Product Height
50 Inches
Power Type
Electric
UPC
791326011572
Additional Model Numbers
4152002717, 4152005424
