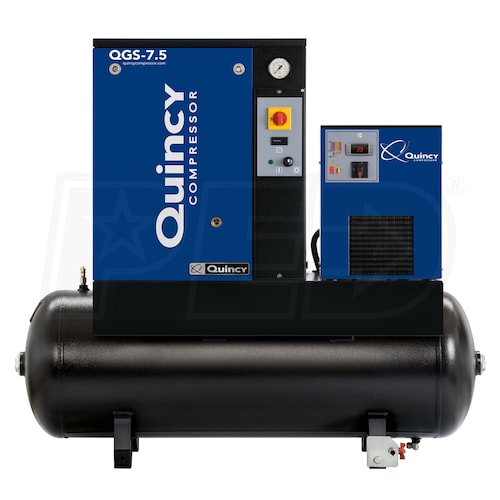

Quincy QGS 7.5-HP 60-Gallon Rotary Screw Compressor w/ Dryer (230V 1-Phase)
Model: 4152005431
+
Share This Product
-
Product Description
-
Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
21.2
CFM Rated @ 150 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
21.2 CFM Rated @ 150 PSI
Tank Size
60 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Superior Compressed Air Performance
- Oil injected twin screw pump provides reliable, quiet power
- Integrated Refrigerated Air Dryer
- Condenses the air to remove airborne moisture, dirt, and oil
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Standard Quiet Enclosure
- Runs without the vibration & noise of piston compressors
- Ideal for most applications; 21.2 CFM at 150 PSI
- 64 dBA for reduced sound fatigue in work area installations
- Premium Synthetic Lubrication
- Rated for 8,000 hours; low oil carryover protects tools
- Start/Stop Operation
- UL and cUL control panel compliant; 36°F minimum temperature
- Long Life V-Belt Drive
- Less maintenance, reliable operation
- TEFC Electric Motor
- 1-phase unit runs on 230V power (IP 55 wash down)
- Extended 3 Year Factory Warranty Available
- Must register with Quincy & use Quincy Maintenance Kits
- True Blue 5-Year Warranty with Quincy Authorized Start Up
- Covers airend, motor, separator reservoir, cooler/heat exchanger
- Quincy Part #: 4152005431 - Quincy Model #: QGS 7.5 HPD 1
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Engine
HP
7.5
Engine Low Oil Shut-off
Yes
Pump
CFM
21.2
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
548 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
22 Inches
Product Height
50 Inches
Power Type
Electric
UPC
791326011565
Additional Model Numbers
4152002727, 4152005431
Grade
Style
CFM
21.2
CFM Rated @ 150 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
21.2 CFM Rated @ 150 PSI
Tank Size
60 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Superior Compressed Air Performance
- Oil injected twin screw pump provides reliable, quiet power
- Integrated Refrigerated Air Dryer
- Condenses the air to remove airborne moisture, dirt, and oil
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Standard Quiet Enclosure
- Runs without the vibration & noise of piston compressors
- Ideal for most applications; 21.2 CFM at 150 PSI
- 64 dBA for reduced sound fatigue in work area installations
- Premium Synthetic Lubrication
- Rated for 8,000 hours; low oil carryover protects tools
- Start/Stop Operation
- UL and cUL control panel compliant; 36°F minimum temperature
- Long Life V-Belt Drive
- Less maintenance, reliable operation
- TEFC Electric Motor
- 1-phase unit runs on 230V power (IP 55 wash down)
- Extended 3 Year Factory Warranty Available
- Must register with Quincy & use Quincy Maintenance Kits
- True Blue 5-Year Warranty with Quincy Authorized Start Up
- Covers airend, motor, separator reservoir, cooler/heat exchanger
- Quincy Part #: 4152005431 - Quincy Model #: QGS 7.5 HPD 1
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Engine
HP
7.5
Engine Low Oil Shut-off
Yes
Pump
CFM
21.2
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
548 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
22 Inches
Product Height
50 Inches
Power Type
Electric
UPC
791326011565
Additional Model Numbers
4152002727, 4152005431
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Engine
HP
7.5
Engine Low Oil Shut-off
Yes
Pump
CFM
21.2
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
548 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
22 Inches
Product Height
50 Inches
Power Type
Electric
UPC
791326011565
Additional Model Numbers
4152002727, 4152005431
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
What sized electrical breaker is required to operate this compressor / dryer?
John
from Kentucky
February 10, 2020
Answer
According to Quincy's technical data brochure, the amp draw is 40 and the recommended breaker size is 80; this will depend on local code. Also, the dryer is required to have a separate electrical connection (115V).
Was this answer helpful?
Yes
0
No
0
+−
What is the oil capacity for this compressor?
Christy C.
from North Carolina
November 06, 2019
Answer
It is 2.5 liters.
Was this answer helpful?
Yes
0
No
0
