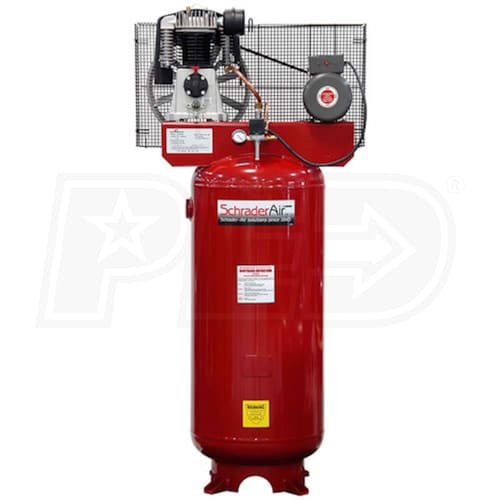

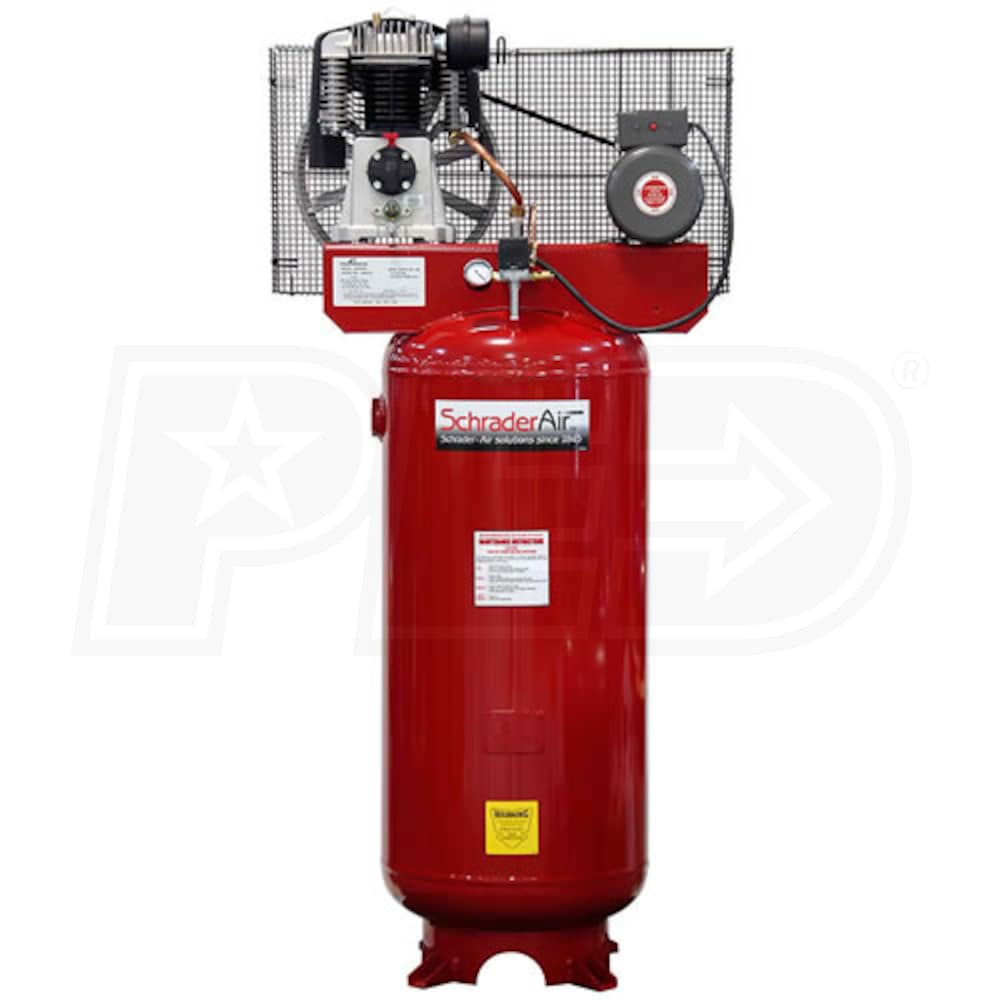

Schrader 5-HP 80-Gallon Two-Stage Air Compressor

Model:

SA2580V

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Schrader 5-HP 80-Gallon Two-Stage Air Compressor
Schrader 5-HP 80-Gallon Two-Stage Air Compressor
Model: SA2580V
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Voltage

230 Volt AC

Phase

1-Phase

CFM

13.5

Tank Size

80

  • Medium-Duty Commercial Air Compressor
  • Designed for small to medium body shops & service centers
  • 5 HP Baldor Electric Motor
  • Thermal overload protects motor & pump
  • Cast Iron Cylinders
  • Provides maximum life, minimum wear
  • Splash Lubrication
  • Simple, reliable, & easy to maintain
  • Sight glass lets you check oil level at a glance
  • Inlet Filter/Silencer
  • Lower sound levels & longer maintenance intervals
  • Aluminum Pulley & Fan
  • Totally enclosed for safety
  • 80 Gallon Air Storage Tank
  • ASME certified for durability & safety
  • Factory preset pressure switch on at 145, off at 175 PSI
  • Durable solid steel base with bolt-down claw feet
  • Easy to read tank gauge 0-300 PSI

Specifications

SA2580V
specs product image PID-8169
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
13.5
CFM Rated @
175 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Weight
435 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
73 Inches
Power Type
Electric
