ABAC AS-B - 15-HP 131-Gallon Rotary Screw Air Compressor (208-230/460V 3-Phase 150 PSI)

Model:

AS-15503TM

Write A Review
$8,369.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

ABAC AS-B - 15-HP 131-Gallon Rotary Screw Air Compressor (208-230/460V 3-Phase 150 PSI)
ABAC AS-B - 15-HP 131-Gallon Rotary Screw Air Compressor (208-230/460V 3-Phase 150 PSI)
Model: AS-15503TM
$8,369.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230/460 Volt AC

Phase

3-Phase

CFM

46.4

Tank Size

131

  • ABAC AS-B Series - 15 HP Tank-Mounted Rotary Screw Air Compressor
  • Ideal for automotive and industrial applications
  • Provides superior performance, efficiency, and reliability
  • 2-In-1 System - Compressor & Receiver
  • Tank-mounted design allows for a compact foot print

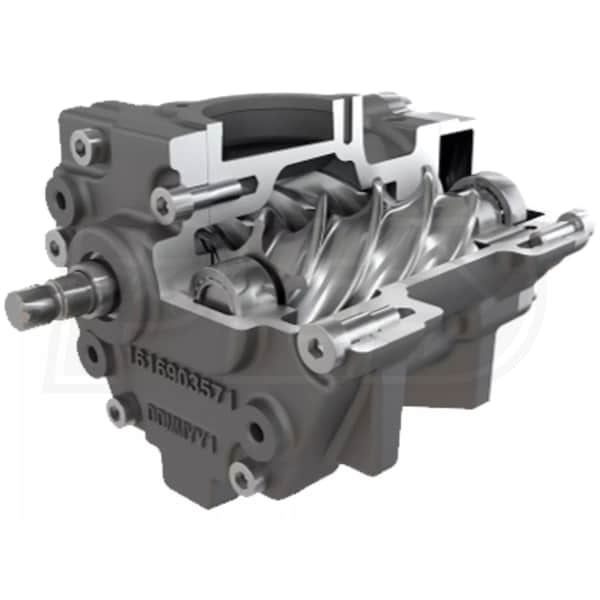

  • C43i Rotary Air End
  • 46.4 CFM @ 100 PSI (150 Max PSI); 100% Duty Cycle
  • Oil-injected, belt-driven design for low noise and vibration regardless of RPM
  • Integrated Block (IB) Design
  • Minimum parts, internally casted channels & integrated valves / fittings
  • Robust, hose-less, single piece compression and separation system
  • Allows for highly reliable operation and eliminates possibility of leaks
  • High-Density Aluminum Block
  • Provides less porosity to provide a stable film on the surface
  • Decreases the risk of corrosion for longer compressor life
  • Spin-On Vertical Oil Separation
  • Efficient, eco-friendly design provides superior separation
  • Helps minimize risk of damage to tools and equipment
  • 15-HP IE3 Electric Motor (208-230/460-Volt - 3-Phase)
  • Energy efficient design helps to reduce power consumption and CO2 levels
  • Fan-cooled, can operate at ambient temperatures up to 115F (46C)
  • Air Energy Control - Basic Digital Controller
  • Remote Start / Stop and Automatic Restart
  • Running and Loaded Hours; Service & Failure Warnings
  • Sound Attenuated Cabinet
  • Quiet Operation - As low as 69 dB(A)
  • 131-Gallon ASME Air Receiver
  • Easily accessible tap for condensate drain
  • Forklift pockets in base structure for safer lifting
  • Compact Design - 76"(L) x 24" (W) x 63" (H)
  • Allows you to use this compressor in a wide variety of locations
  • Warranty
  • 12-Months From Start-Up Or 18-Months From Ship Date (1st To Occur)
  • Amp Draw:
  • 208V Full Load 47 / Nominal 39
  • 230V Full Load 43 / Nominal 35.3
  • 460V Full Load 22 / Nominal 17.6
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

AS-15503TM
specs product image PID-145394
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
46.4
CFM Rated @
138 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
131 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
772 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Depth
76 Inches
Product Width
27 Inches
Product Height
62 Inches
Power Type
Electric
UPC
8058480471188
