Atlas Copco LV660-200 660-Gallon Vertical Air Receiver (200 PSI)
Model: 1280566573
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$6,143.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • ASME Certified
  • Rated to 200 PSI working pressure
  • Temperature range -20°F minimum, 400°F maximum for all site conditions
  • Sturdy Construction w/ Welded Base Ring
  • Stabilizes vertical installation for added protection
  • Lifting lugs on top & sides simplify placement
  • Primer Coated Finish
  • Allows for optional finishing paint to adhere much better
  • 1/4", 1", 3" & 4" NPT Connections
  • Easy installation and versatile fit for many applications

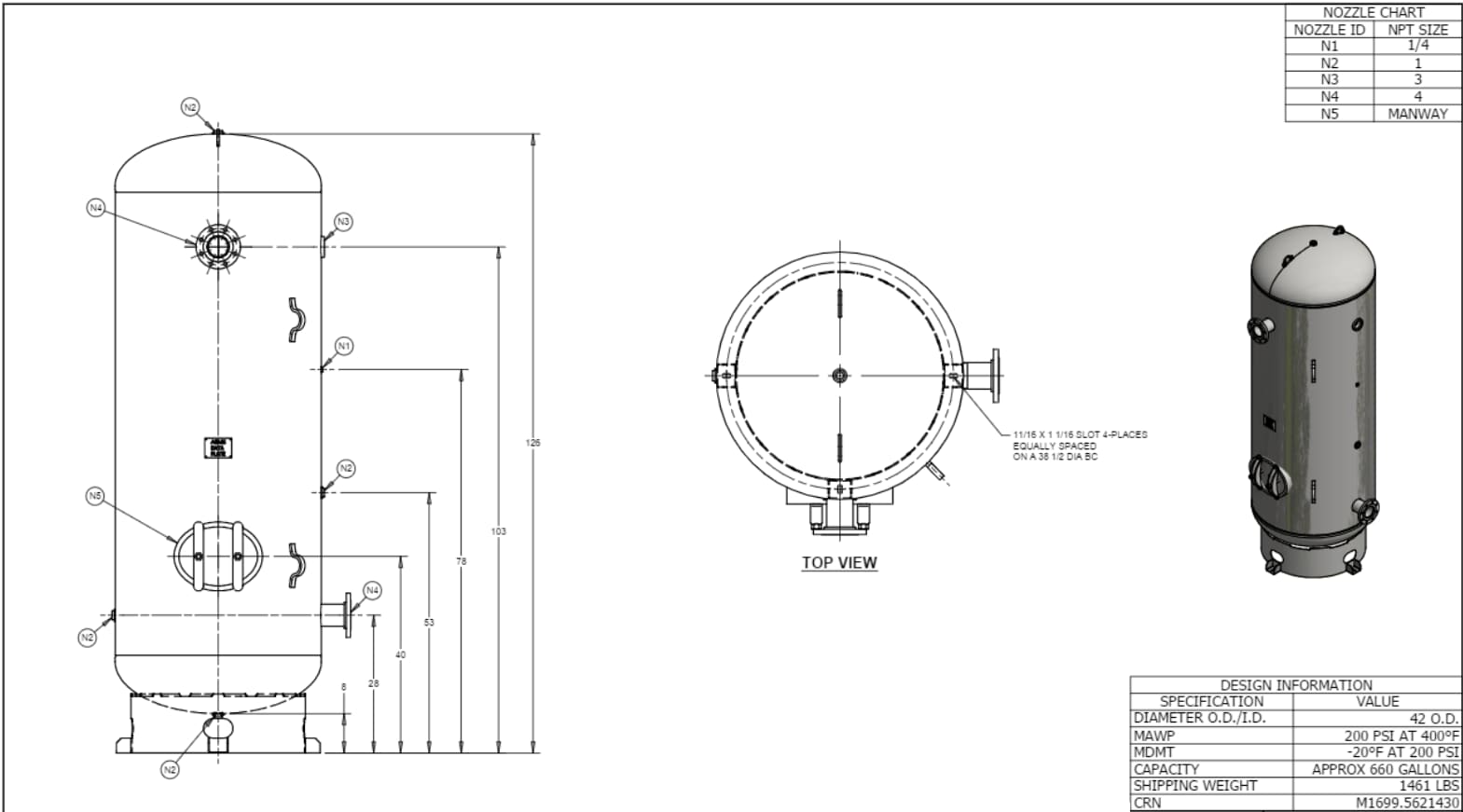

  • Please refer to install drawing under the Manuals tab for details
  • Must Purchase Gauge/Valve Kit 1280548335 (Sold Separately)
  • Each kit is tailored to a specific air receiver
  • Kit can be viewed under the Accessories tab
Specifications
Tank
Tank Size
660 Gallons
Overview
Weight
1461 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
42 Inches
Product Height
128 Inches
Features
Features
  • ASME Certified
  • Rated to 200 PSI working pressure
  • Temperature range -20°F minimum, 400°F maximum for all site conditions
  • Sturdy Construction w/ Welded Base Ring
  • Stabilizes vertical installation for added protection
  • Lifting lugs on top & sides simplify placement
  • Primer Coated Finish
  • Allows for optional finishing paint to adhere much better
  • 1/4", 1", 3" & 4" NPT Connections
  • Easy installation and versatile fit for many applications
  • Please refer to install drawing under the Manuals tab for details
  • Must Purchase Gauge/Valve Kit 1280548335 (Sold Separately)
  • Each kit is tailored to a specific air receiver
  • Kit can be viewed under the Accessories tab
Specifications
Tank
Tank Size
660 Gallons
Overview
Weight
1461 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
42 Inches
Product Height
128 Inches
Product Specs
+
Specifications
Tank
Tank Size
660 Gallons
Overview
Weight
1461 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
42 Inches
Product Height
128 Inches
