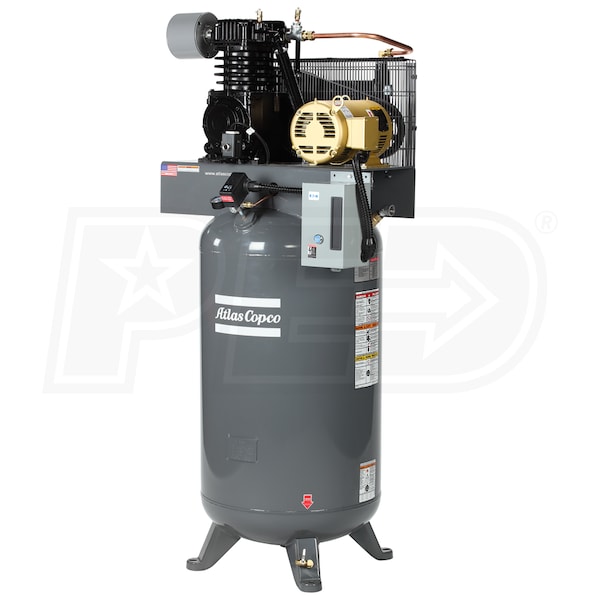

Atlas Copco CR10-TS Professional 10-HP 120-Gallon Two-Stage Packaged Air Compressor (208V 3-Phase)
Model:
2020040040
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208 Volt AC
Phase
3-Phase
CFM
35.9
Tank Size
120
- Newly Designed Two-Stage 10-HP CR Professional Packaged Series
- Best for high demands needing up to 175 PSI
- Perfect for contractors, automotive shops and manufacturing
- ODP Motor w/ Magnetic Starter
- Runs cooler to prevent overheating
- Open drip proof motors tend to be slightly more efficient because windings are cooler
- Belt Drive w/ Heavy Gauge Wire Belt Guard
- Provides more power, easy to maintain
- Fully enclosed belt guard and ASME safety valves
- Industrial Splash Lubricated Cast Iron Pump
- Oversized oil reservoir for low oil temperatures
- Minimizes vibration, improves cooling, extends compressor life
- One-piece aluminum head for heat dissipation providing longevity w/ industrial class bearings
- Professional Package
- Automatic drain prevents air contamination & prolongs tool life
- Belt guard aftercooler cools air down to provide added protection against water in your system
- High-Efficiency Intercooler
- Lowers compressed air temperature and reduces condensation
- Stainless steel valve design for highest volumetric efficiency
- Full Cast-Iron Construction
- Can handle the most demanding conditions
- Ensures durability and reliability for the most demanding applications
- 120-Gallon ASME Air Tank
- Pressure gauge lets you check at a glance
- Air pressure switch allows compressor to run at its most efficient capacity
- Standard 1-Year Bumper To Bumper Warranty
- Covers defect in materials & workmanship
- 5-year extended warranty on the pump with purchase of minor and major maintenance kits
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
2020040040
General Information
Product Category
Air Compressor - Stationary
Engine
HP
10
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Conult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35.9
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
845 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
30 Inches
Product Height
77 Inches
Power Type
Electric
