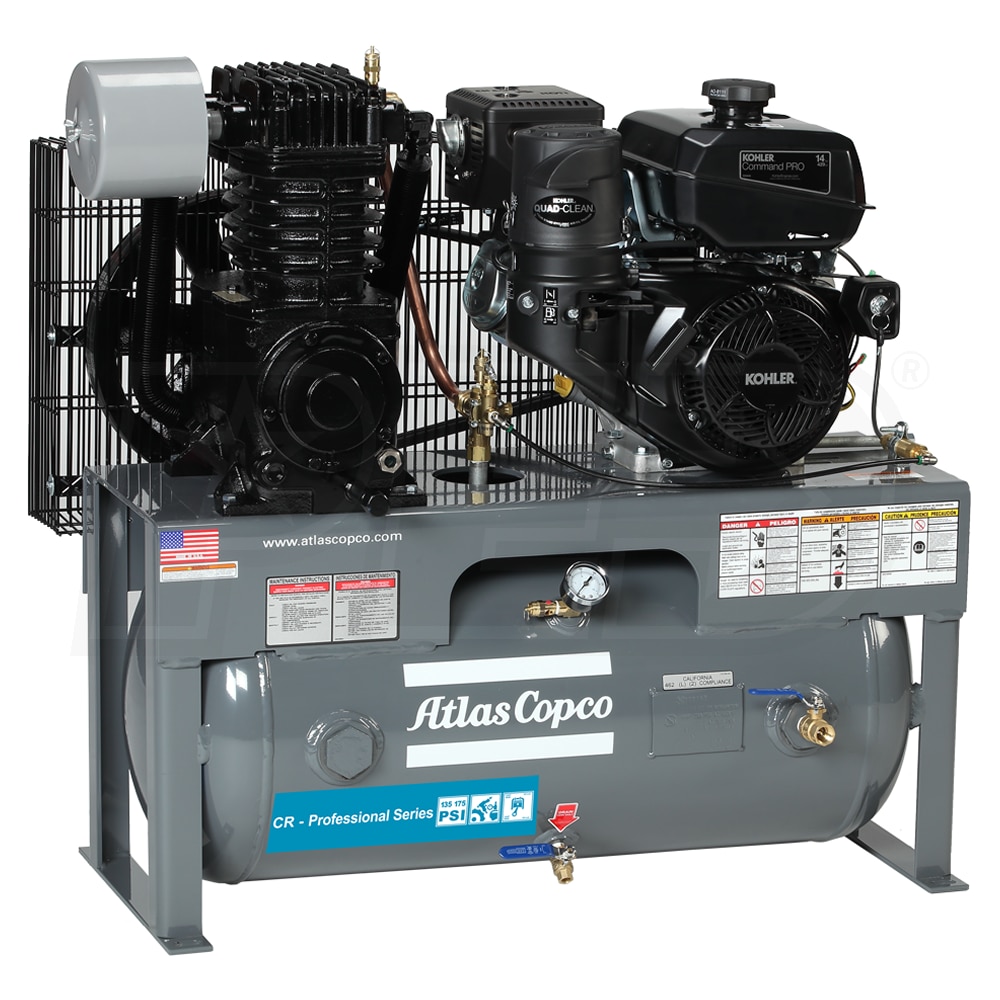

Atlas Copco CR7.5-TS Contractor 14-HP 30-Gallon Two-Stage Air Compressor w/ Electric Start Kohler Engine

Model:

2020040087

Write A Review
$3,624.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks

Atlas Copco CR7.5-TS Contractor 14-HP 30-Gallon Two-Stage Air Compressor w/ Electric Start Kohler Engine
Atlas Copco CR7.5-TS Contractor 14-HP 30-Gallon Two-Stage Air Compressor w/ Electric Start Kohler Engine
Model: 2020040087
$3,624.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Engine Brand

Kohler

Phase

Voltage

CFM

23.8

  • Newly Designed Two-Stage Gas 7.5-HP CR Professional Series
  • Best for high demands needing up to 175 PSI
  • Perfect for contractors, automotive shops and manufacturing
  • Industrial Splash Lubricated Cast Iron Pump
  • Oversized oil reservoir for low oil temperatures
  • Minimizes vibration, improves cooling, extends compressor life
  • One-piece aluminum head for heat dissipation providing longevity w/ industrial class bearings
  • Full Cast-Iron Construction
  • Can handle the most demanding conditions
  • Ensures durability and reliability for the most demanding applications
  • Kohler Command CH440 Pro 14-HP w/ 12-Volt Key Start
  • Smoother, quieter performance with large gas tank
  • Quad-Clean all season four stage cycoliic air filtration system
  • High-Efficiency Intercooler
  • Lowers compressed air temperature and reduces condensation
  • Stainless steel valve design for highest volumetric efficiency
  • Belt Drive w/ Heavy Gauge Wire Belt Guard
  • Provides more power, easy to maintain
  • Fully enclosed belt guard and ASME safety valves
  • 30-Gallon ASME Air Tank
  • Pressure gauge lets you check at a glance
  • Air pressure switch allows compressor to run at its most efficient capacity
  • Standard 1 Year Bumper To Bumper Warranty
  • Covers defect in materials & workmanship
  • 5-year extended warranty on the pump with purchase of minor and major maintenance kits
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2020040087
specs product image PID-105046
General Information
Product Category
Air Compressor - Stationary
Engine
HP
14
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Motor
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
23.8
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
465 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
24 Inches
Product Height
41 Inches
Power Type
Gas
