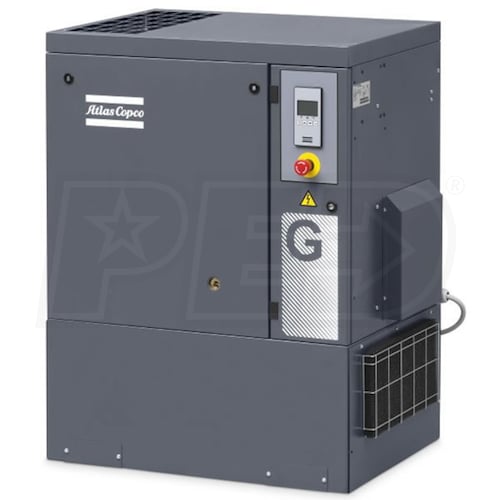

Atlas Copco G11 15-HP Tankless FF Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Atlas Copco G11 15-HP Tankless FF Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
53.8
CFM Rated @ 125 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
53.8 CFM Rated @ 125 PSI
Tank Size
0 Gallons
Features
Features
- Latest Generation Oil-Injected G Series
- Ideal for small to medium businesses; quiet 68 dBA performance doesn't require separate compressor space
- Operates at ambient temperatures up to 115°F (46°C); top discharge lets it fit in small spaces against a wall or corner
- Full Featured Package With Built-In Refrigerant Dryer
- Cools the compressed air & removes moisture, preventing rust damage to piping & tools
- Advanced BASE Electronic Controller
- Icon based, easy to understand display for pressure settings, temperature readings, service warnings, & running hours
- Allows outlet pressure setting directly from the controller; easily monitor outlet temperature
- Robust & Efficient Belt-Driven Rotary Compression Element
- Increases free air delivery by up to 3% compared to previous models
- IP55 (TEFC) Motor
- Meets or exceeds IEEE & NEMA premium efficiency standards with greased-for-life bearings
- Load / No Load Control
- Controller automatically switches for high, low, and intermittent air consumption
- Saves power & improves reliability
- Versatile
- Meets ISO 9001, ISO 14001 & ISO 1217 which insures a reliable, trouble-free air compressor
- Delivers 53.8 CFM at 125 PSI; maximum of 125 PSI

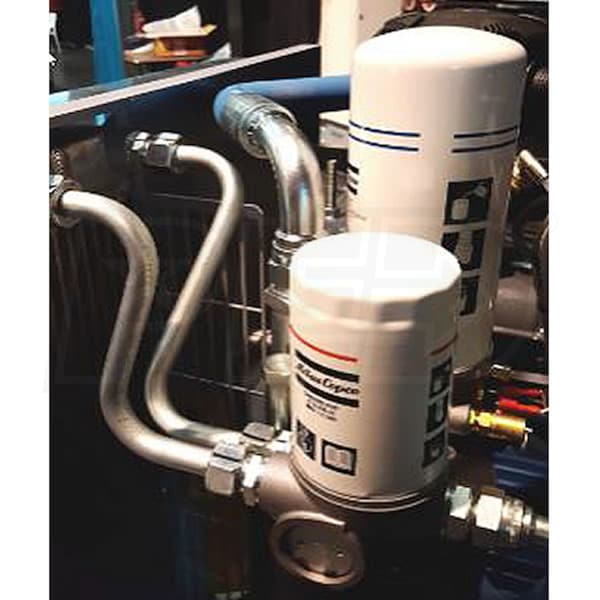

- Air-Oil Separator & Inlet Air Filter
- 2-step separator system reduces oil consumption & protects lubrication quality
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
68
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
53.8
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Filter
Water Separator
Yes
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
706 Pounds
Certification
NEMA, IEEE
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
49 Inches
Product Width
28 Inches
Product Height
43 Inches
Power Type
Electric
Grade
Style
CFM
53.8
CFM Rated @ 125 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
53.8 CFM Rated @ 125 PSI
Tank Size
0 Gallons
Features
Features
- Latest Generation Oil-Injected G Series
- Ideal for small to medium businesses; quiet 68 dBA performance doesn't require separate compressor space
- Operates at ambient temperatures up to 115°F (46°C); top discharge lets it fit in small spaces against a wall or corner
- Full Featured Package With Built-In Refrigerant Dryer
- Cools the compressed air & removes moisture, preventing rust damage to piping & tools
- Advanced BASE Electronic Controller
- Icon based, easy to understand display for pressure settings, temperature readings, service warnings, & running hours
- Allows outlet pressure setting directly from the controller; easily monitor outlet temperature
- Robust & Efficient Belt-Driven Rotary Compression Element
- Increases free air delivery by up to 3% compared to previous models
- IP55 (TEFC) Motor
- Meets or exceeds IEEE & NEMA premium efficiency standards with greased-for-life bearings
- Load / No Load Control
- Controller automatically switches for high, low, and intermittent air consumption
- Saves power & improves reliability
- Versatile
- Meets ISO 9001, ISO 14001 & ISO 1217 which insures a reliable, trouble-free air compressor
- Delivers 53.8 CFM at 125 PSI; maximum of 125 PSI
- Air-Oil Separator & Inlet Air Filter
- 2-step separator system reduces oil consumption & protects lubrication quality
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
68
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
53.8
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Filter
Water Separator
Yes
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
706 Pounds
Certification
NEMA, IEEE
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
49 Inches
Product Width
28 Inches
Product Height
43 Inches
Power Type
Electric
Product Specs
+−
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
68
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
53.8
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Filter
Water Separator
Yes
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
706 Pounds
Certification
NEMA, IEEE
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
49 Inches
Product Width
28 Inches
Product Height
43 Inches
Power Type
Electric
