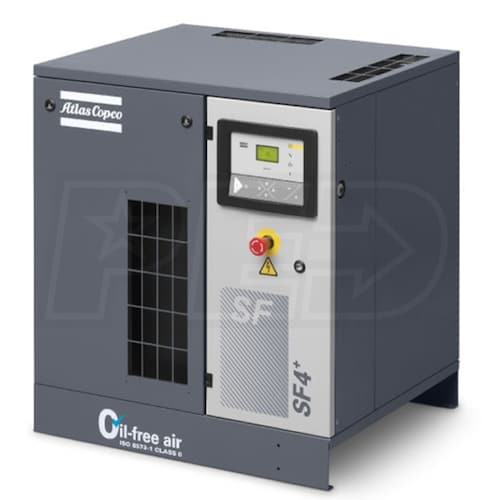

Atlas Copco SF4+ AP 5-HP Tankless Oil-Free Mono Scroll Air Compressor w/ Elektronikon Controller (208/230/460V 3-Phase 116 PSI)
Model:
8153611317
+
Share This Product
Features
Grade
Commercial
Voltage
208-230/460 Volt AC
Phase
3-Phase
CFM
14
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Pure ISO 8573-1 CLASS 0 Certified Oil-Free Air (Not For Medical Use)
- Class 0 means zero risk of contamination; zero risk of damaged or unsafe products; zero risk of losses from downtime
- Scroll compressors have no metal to metal contact, so there's no need for oil lubrication in the compression chamber
- Cost Efficient, High Qualty Air
- Oil-free compressed air is a prerequisite for many manufacturing processes: labs, food & beverage, hospitals, dental, etc.
- Elektronikon® Controller
- Easily monitor warning indications and maintenance scheduling, provides online visualization of running conditions
- Super Silent Acoustic Enclosure
- Extremely low noise levels as low as 57 dBA allows the compressor to be installed directly into the work environment
- Energy Efficient IE3 TEFC IP55 Class F Motor
- Suited for sensitive applications which require flexibility and energy efficiency
- User and/or Atlas technician can change the unit to 208V, 230V, or 460V 3-phase incoming voltage
- Unloaded power consumption is eliminated thanks to the simple start/stop control
- Scroll Compressor Element With Air Cooled Aftercooler
- Delivers 116 PSI with proven durability & reliability along with solid efficiency; vertical setup improves cooling
- Integrated Vertical Design
- A minimal number of moving parts ensure reliable performance & easy serviceability
- Air inlet paper cartridge filter eliminates dust & particles down to 1 micrometer
- 1 Year Bumper To Bumper Factory Warranty
- Protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
8153611317
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
57
Amp Draw
16.6/15.2/7.6
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14
CFM Rated @
116 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
116 PSI
Pump Type
Scroll Compressor
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
293 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
30 Inches
Product Width
26 Inches
Product Height
33 Inches
