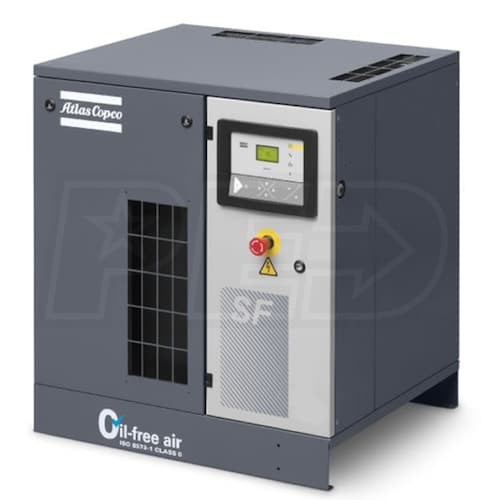

Atlas Copco SF6+ AFF 7.5-HP Tankless High Pressure Oil-Free Mono Scroll Air Compressor w/ Elektronikon Controller & Dryer (208/230/460V 3-Phase 145 PSI)

Atlas Copco SF6+ AFF 7.5-HP Tankless High Pressure Oil-Free Mono Scroll Air Compressor w/ Elektronikon Controller & Dryer (208/230/460V 3-Phase 145 PSI)
Our Price
Compare Prices
Shipping Info
Model: 8153611846
$12,499.00

Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$75.00
Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Scroll Compressors
CFM
16.1
CFM Rated @ 145 PSI
Grade
Commercial
CFM
16.1 CFM Rated @ 145 PSI


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Pure ISO 8573-1 CLASS 0 Certified High Pressure Oil-Free Air (Not For Medical Use)
  • Class 0 means zero risk of contamination; zero risk of damaged or unsafe products; zero risk of losses from downtime
  • Scroll compressors have no metal to metal contact, so there's no need for oil lubrication in the compression chamber
  • Cost Efficient, High Qualty Air
  • Oil-free compressed air is a prerequisite for many manufacturing processes: labs, food & beverage, hospitals, dental, etc.
  • Refrigerant Air Dryer
  • Compact & optimized integrated refrigerant dryer, ensuring the delivery of dry air to prevent rust in your air network
  • Elektronikon« Controller
  • Easily monitor warning indications and maintenance scheduling, provides online visualization of running conditions
  • Super Silent Acoustic Enclosure
  • Extremely low noise levels as low as 59 dBA allows the compressor to be installed directly into the work environment
  • Energy Efficient IE3 TEFC IP55 Class F Motor
  • Suited for sensitive applications which require flexibility and energy efficiency
  • User and/or Atlas technician can change the unit to 208V, 230V, or 460V 3-phase incoming voltage
  • Unloaded power consumption is eliminated thanks to the simple start/stop control
  • Scroll Compressor Element With Air Cooled Aftercooler
  • Delivers 145 PSI with proven durability & reliability along with solid efficiency; vertical setup improves cooling
  • Integrated Vertical Design
  • A minimal number of moving parts ensure reliable performance & easy serviceability
  • Air inlet paper cartridge filter eliminates dust & particles down to 1 micrometer
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
24.3/24/12
Recommended Breaker
Consult Certified Electrician
dBA
59
Engine
HP
7.5
Pump
CFM
16.1
CFM Rated @
145 PSI
Pump Type
Scroll Compressor
Max PSI
145 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
415 Pounds
Product Length
40 Inches
Product Width
26 Inches
Product Height
33 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Grade
Commercial
Style
Scroll Compressors
CFM
16.1
CFM Rated @ 145 PSI
Grade
Commercial
CFM
16.1 CFM Rated @ 145 PSI


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Pure ISO 8573-1 CLASS 0 Certified High Pressure Oil-Free Air (Not For Medical Use)
  • Class 0 means zero risk of contamination; zero risk of damaged or unsafe products; zero risk of losses from downtime
  • Scroll compressors have no metal to metal contact, so there's no need for oil lubrication in the compression chamber
  • Cost Efficient, High Qualty Air
  • Oil-free compressed air is a prerequisite for many manufacturing processes: labs, food & beverage, hospitals, dental, etc.
  • Refrigerant Air Dryer
  • Compact & optimized integrated refrigerant dryer, ensuring the delivery of dry air to prevent rust in your air network
  • Elektronikon« Controller
  • Easily monitor warning indications and maintenance scheduling, provides online visualization of running conditions
  • Super Silent Acoustic Enclosure
  • Extremely low noise levels as low as 59 dBA allows the compressor to be installed directly into the work environment
  • Energy Efficient IE3 TEFC IP55 Class F Motor
  • Suited for sensitive applications which require flexibility and energy efficiency
  • User and/or Atlas technician can change the unit to 208V, 230V, or 460V 3-phase incoming voltage
  • Unloaded power consumption is eliminated thanks to the simple start/stop control
  • Scroll Compressor Element With Air Cooled Aftercooler
  • Delivers 145 PSI with proven durability & reliability along with solid efficiency; vertical setup improves cooling
  • Integrated Vertical Design
  • A minimal number of moving parts ensure reliable performance & easy serviceability
  • Air inlet paper cartridge filter eliminates dust & particles down to 1 micrometer
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
24.3/24/12
Recommended Breaker
Consult Certified Electrician
dBA
59
Engine
HP
7.5
Pump
CFM
16.1
CFM Rated @
145 PSI
Pump Type
Scroll Compressor
Max PSI
145 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
415 Pounds
Product Length
40 Inches
Product Width
26 Inches
Product Height
33 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Specs
+
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
24.3/24/12
Recommended Breaker
Consult Certified Electrician
dBA
59
Engine
HP
7.5
Pump
CFM
16.1
CFM Rated @
145 PSI
Pump Type
Scroll Compressor
Max PSI
145 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
415 Pounds
Product Length
40 Inches
Product Width
26 Inches
Product Height
33 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
