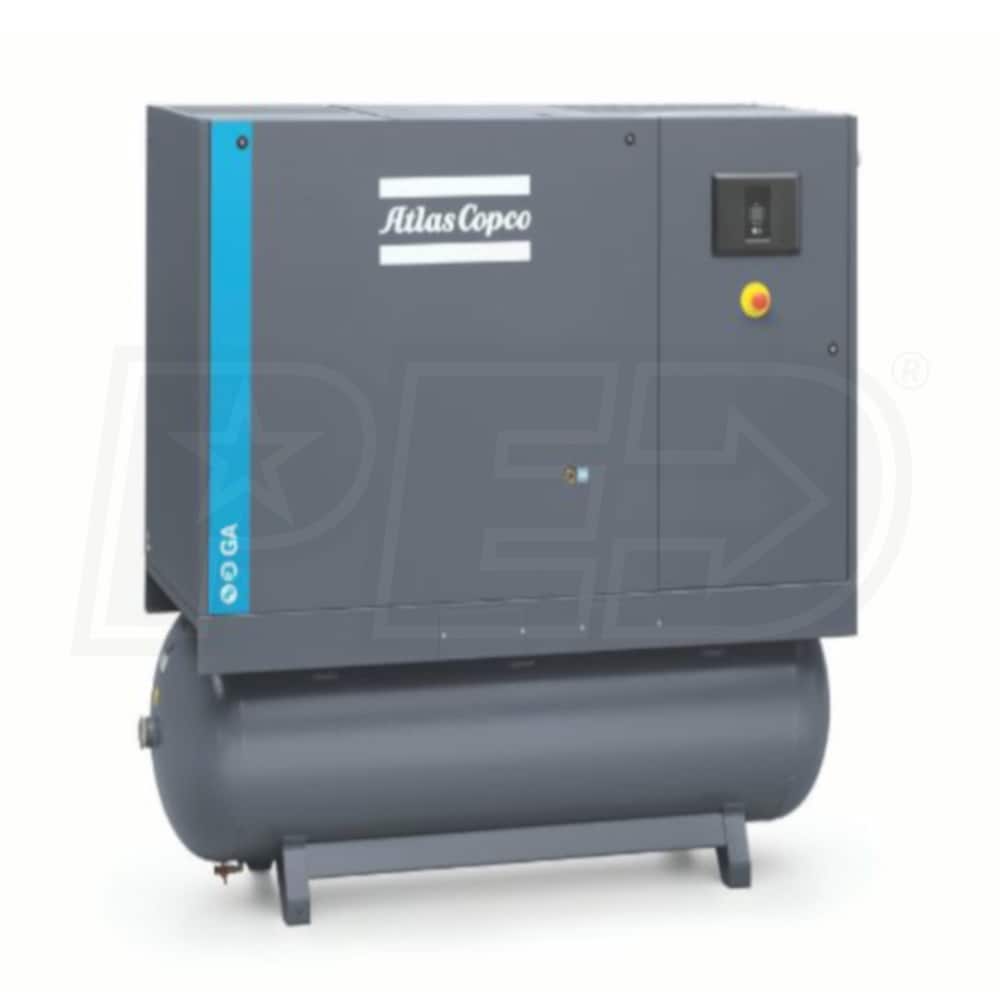

Atlas Copco GA18 WorkPlace 25-HP 132-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Model: 8153657617
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
122.3
CFM Rated @ 125 PSI
Tank Size
132
Gallons
Grade
Commercial
CFM
122.3 CFM Rated @ 125 PSI
Tank Size
132 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Oil-Injected 25-HP Rotary Screw Compressor
- Powerful & reliable solution engineered for industrial conditions
- Delivers high-quality air in temperatures up to 46°C / 115°F

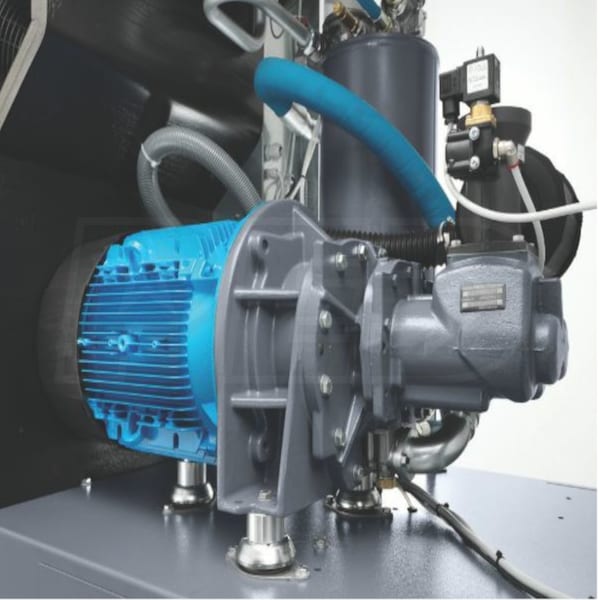

- Premium Efficiency TEFC Electrical Motor
- Motor & drive train are enclosed & greased for life, maximizing reliability
- 100% Duty Cycle For 24/7 Operation
- Reduced cubicle temperature doubles electrical component life

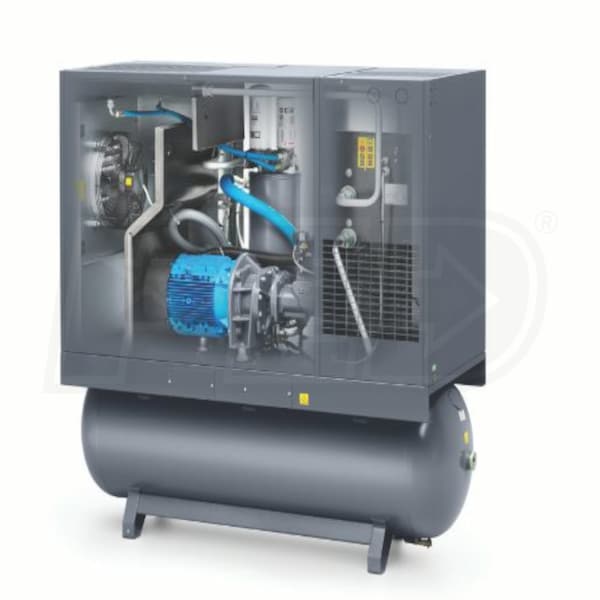

- Integrated Air Dryer Reduces Footprint
- Counterflow heat exchanger & integrated water separator maximize results

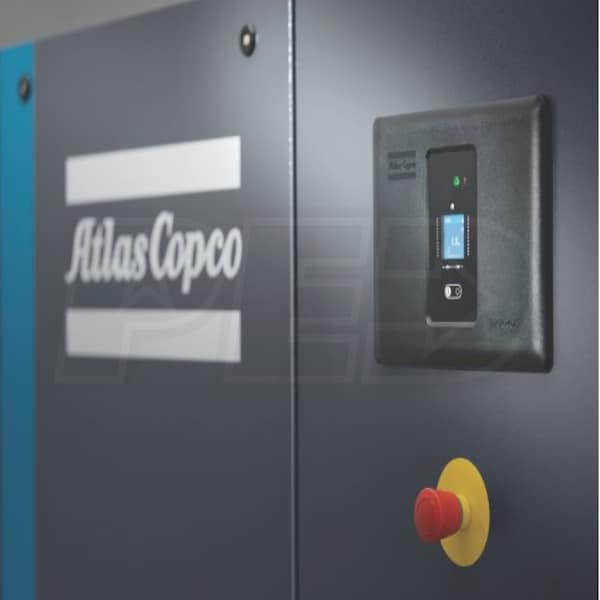

- Elektronikon MK5s Swipe Color Controller
- Graphic displays for warnings, maintenance, general condition
- Control up to 6 compressors; monitor your compressor remotely
- 122.3 CFM At 125 PSI With 1" Air Outlet
- Connects easily to your system
- Low Noise Rotary Technology Maximizes Workspace
- Enclosure further reduces sound levels so you can work nearby
- 132 Gallon Air Receiver
- Provides a remarkably compact footprint
- Electronic No-Loss Drain
- Delivers water separation of nearly 100 % in all conditions
- No-Cost Start-Up For This Unit Is Provided By Atlas
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
68
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
25
Pump
CFM
122.3
CFM Rated @
125 PSI
Max PSI
125 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1651 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
75 Inches
Product Width
33 Inches
Product Height
73 Inches
Power Type
Electric
Grade
Style
CFM
122.3
CFM Rated @ 125 PSI
Tank Size
132
Gallons
Grade
Commercial
CFM
122.3 CFM Rated @ 125 PSI
Tank Size
132 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Oil-Injected 25-HP Rotary Screw Compressor
- Powerful & reliable solution engineered for industrial conditions
- Delivers high-quality air in temperatures up to 46°C / 115°F
- Premium Efficiency TEFC Electrical Motor
- Motor & drive train are enclosed & greased for life, maximizing reliability
- 100% Duty Cycle For 24/7 Operation
- Reduced cubicle temperature doubles electrical component life
- Integrated Air Dryer Reduces Footprint
- Counterflow heat exchanger & integrated water separator maximize results
- Elektronikon MK5s Swipe Color Controller
- Graphic displays for warnings, maintenance, general condition
- Control up to 6 compressors; monitor your compressor remotely
- 122.3 CFM At 125 PSI With 1" Air Outlet
- Connects easily to your system
- Low Noise Rotary Technology Maximizes Workspace
- Enclosure further reduces sound levels so you can work nearby
- 132 Gallon Air Receiver
- Provides a remarkably compact footprint
- Electronic No-Loss Drain
- Delivers water separation of nearly 100 % in all conditions
- No-Cost Start-Up For This Unit Is Provided By Atlas
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
68
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
25
Pump
CFM
122.3
CFM Rated @
125 PSI
Max PSI
125 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1651 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
75 Inches
Product Width
33 Inches
Product Height
73 Inches
Power Type
Electric
Product Specs
+−
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
68
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
25
Pump
CFM
122.3
CFM Rated @
125 PSI
Max PSI
125 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1651 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
75 Inches
Product Width
33 Inches
Product Height
73 Inches
Power Type
Electric
