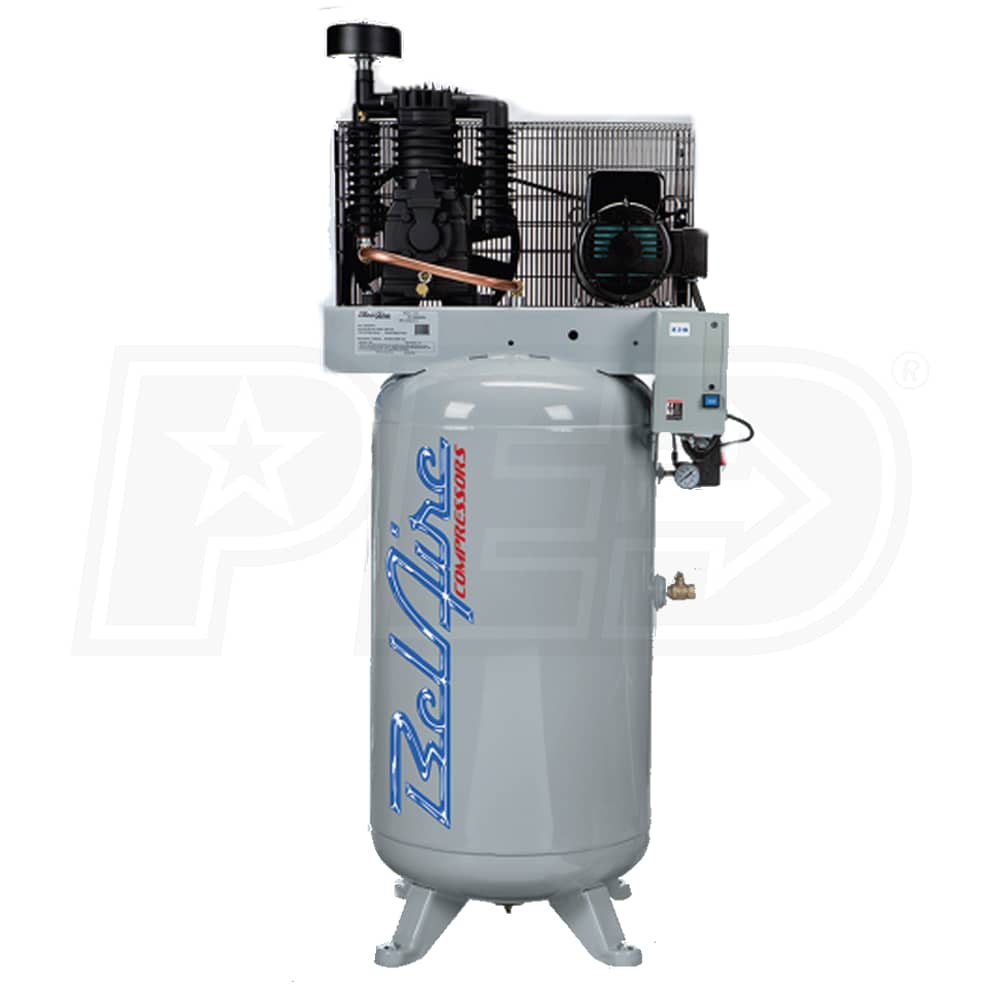

BelAire 7.5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase) w/ Magnetic Starter

BelAire 7.5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase) w/ Magnetic Starter
Our Price
Compare Prices
Shipping Info
Model: 338VL
$2,199.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$75.00
Extended Warranty
Excludes CA

Free Shipping$2,199.99Buy Now
$2,274.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
208-230 Volt AC
CFM
25.25
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
25.25 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
  • Two-Stage Hybrid Pump
  • Designed for superior quality & extends the life of the pump
  • Compact Design
  • Ideal for work environments where space is a premium
  • 7.5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included
  • Saves $$$, No need to purchase additional starter
  • 80-Gallon ASME Certified Vertical Air Tank
  • 100% factory tested at full pressure
  • High Flow Belt Guard
  • Fully enclosed design provides added safety
  • Oil Level Sight Glass
  • Easily check the oil level at any time
  • Start-Stop Pressure Switch Control
  • Saves time and energy
  • Stainless Steel Valves
  • Extends the life of the compressor
  • 3/4" Air Outlet
  • 2 year full Factory Warranty protects your investment
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
40 Amp Breaker
Engine
HP
7.5
Pump
CFM
25.25
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
479 Pounds
Product Length
39 Inches
Product Width
24 Inches
Product Height
73 Inches
Consumer Warranty
2 Years
Power Type
Electric
Grade
Commercial
Style
208-230 Volt AC
CFM
25.25
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
25.25 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
  • Two-Stage Hybrid Pump
  • Designed for superior quality & extends the life of the pump
  • Compact Design
  • Ideal for work environments where space is a premium
  • 7.5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included
  • Saves $$$, No need to purchase additional starter
  • 80-Gallon ASME Certified Vertical Air Tank
  • 100% factory tested at full pressure
  • High Flow Belt Guard
  • Fully enclosed design provides added safety
  • Oil Level Sight Glass
  • Easily check the oil level at any time
  • Start-Stop Pressure Switch Control
  • Saves time and energy
  • Stainless Steel Valves
  • Extends the life of the compressor
  • 3/4" Air Outlet
  • 2 year full Factory Warranty protects your investment
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
40 Amp Breaker
Engine
HP
7.5
Pump
CFM
25.25
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
479 Pounds
Product Length
39 Inches
Product Width
24 Inches
Product Height
73 Inches
Consumer Warranty
2 Years
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
40 Amp Breaker
Engine
HP
7.5
Pump
CFM
25.25
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
479 Pounds
Product Length
39 Inches
Product Width
24 Inches
Product Height
73 Inches
Consumer Warranty
2 Years
Power Type
Electric
