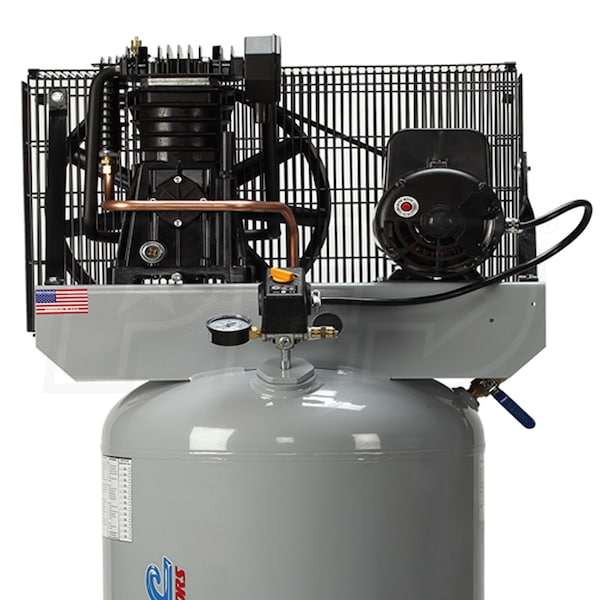

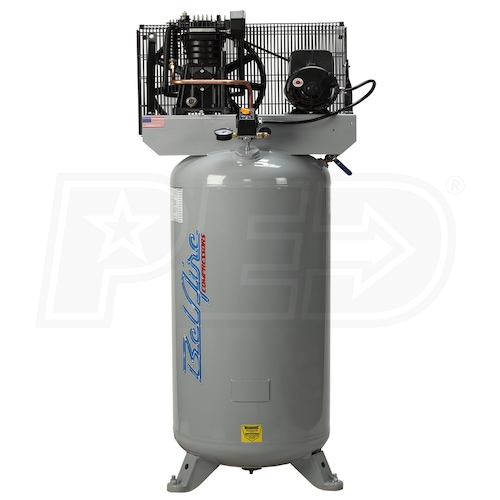

BelAire 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase)
Model: 4918VN
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
16.1
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
16.1 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- Two-Stage Solid Cast Iron Pump
- Designed for superior quality & extends the life of the pump
- Compact Design
- Ideal for work environments where space is a premium
- 5-HP Single-Phase Motor (208-230V)
- Saves $$$, No need to purchase additional starter
- 80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
- High Flow Belt Guard
- Fully enclosed design provides added safety
- Oil Level Sight Glass
- Easily check the oil level at any time
- Start-Stop Pressure Switch Control
- Saves time and energy
- Stainless Steel Valves
- Extends the life of the compressor
- 1/2" air outlet works with many systems
- 2 Year Full Warranty
- Protects your investment
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
382 Pounds
Certification
ASME
Consumer Warranty
2 Years
Product Length
36 Inches
Product Width
24 Inches
Product Height
73 Inches
Power Type
Electric
Grade

Style

CFM
16.1
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
16.1 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- Two-Stage Solid Cast Iron Pump
- Designed for superior quality & extends the life of the pump
- Compact Design
- Ideal for work environments where space is a premium
- 5-HP Single-Phase Motor (208-230V)
- Saves $$$, No need to purchase additional starter
- 80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
- High Flow Belt Guard
- Fully enclosed design provides added safety
- Oil Level Sight Glass
- Easily check the oil level at any time
- Start-Stop Pressure Switch Control
- Saves time and energy
- Stainless Steel Valves
- Extends the life of the compressor
- 1/2" air outlet works with many systems
- 2 Year Full Warranty
- Protects your investment
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
382 Pounds
Certification
ASME
Consumer Warranty
2 Years
Product Length
36 Inches
Product Width
24 Inches
Product Height
73 Inches
Power Type
Electric
Product Specs
+−
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
382 Pounds
Certification
ASME
Consumer Warranty
2 Years
Product Length
36 Inches
Product Width
24 Inches
Product Height
73 Inches
Power Type
Electric
