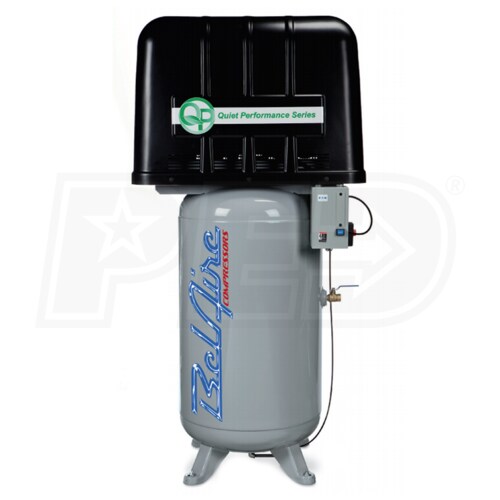

BelAire 7.5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 3-Phase)

Model:

QP338VLE

Recommended
Write a Review
$3,659.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Add an Extended Warranty
Excludes CA
BelAire 7.5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 3-Phase)
BelAire 7.5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 3-Phase)
Model: QP338VLE
$3,659.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Grade

Commercial

Style

Two Stage 3-Phase208-230 Volt AC

CFM

25.3

Tank Size

80

  • Quiet Compressor Air System
  • A piston air compressor with the noise level of a rotary screw
  • Compact Design
  • Ideal for work environments where space is a premium
  • 7.5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included
  • Saves $$$, No need to purchase additional starter
  • Low Sound Enclosure
  • As low as 69 dbA, designed for a greener workplace
  • Less than half the noise of a standard piston compressor
  • High Strength ABS Enclosure & High Flow Fan
  • Keeps the compressor running cooler and quieter
  • Cast Iron Cylinder
  • Designed for superior quality & extends the life of the pump
  • 80-Gallon ASME Certified Vertical Air Tank
  • 100% factory tested at full pressure
  • Added Features
  • Low oil level protection & high temperature shut down
  • Automatic Pressurized Tank Drain (Not Electronic)
  • ASME Safety Valves & Integrated Aftercooler
  • Shipped "wet" so it's ready to use
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

QP338VLE
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
dBA
69
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
25.3
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
537 Pounds
Certification
ASME
Consumer Warranty
2 Years
Product Length
38.2 Inches
Product Width
24.3 Inches
Product Height
80 Inches
Power Type
Electric

Reviews

(1)
BelAire QP338VLE Reviews & Ratings

Product Q&A

(1)
Product Questions Answered by Joshua. the Air Compressor Expert
Question
+
At what decibel level does this operate?
Frank
from California
October 14, 2019
Answer
Around 69 dbA.
Was this answer helpful?
Yes
0
No
0
