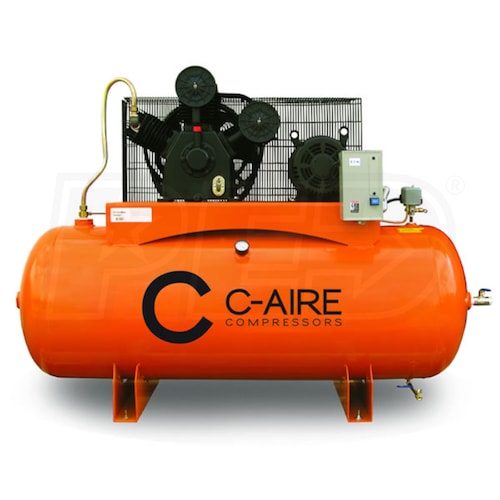

C-Aire 10-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase)

C-Aire 10-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: A100H120-3460
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
32
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
32 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features

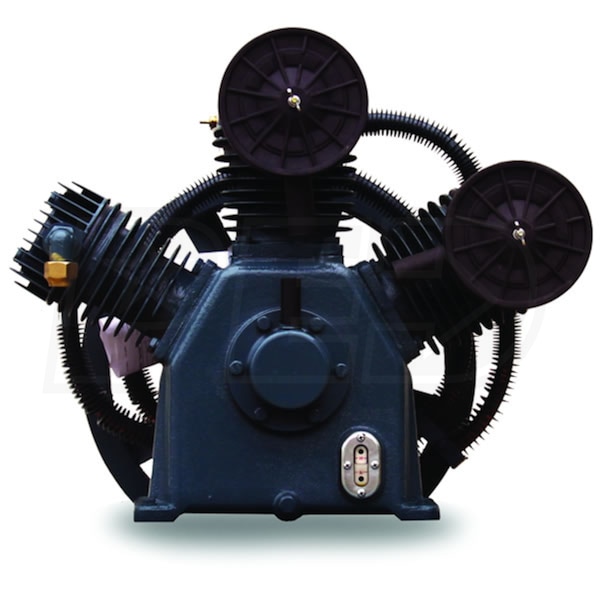

  • Solid Cast Iron 3 Cylinder Pump
  • Delivers 32 CFM at 175 PSI; 200 PSI maximum
  • Rugged components provide long-lasting dependability
  • Low 872 RPM extends pump life, runs quieter
  • Over 8 1/2" Of Finned Inter-Stage Cooling
  • Improves cooling & efficiency for optimum pump performance
  • 10-HP Heavy Duty Motor
  • Pre-wired magnetic starter for simple installation
  • Ideal for small manufacturing, auto body, & tire shops
  • 120 Gallon Horizontal Tank
  • ASME certified for reliability & safety
  • Fully Enclosed Belt Guard
  • Protects the belt & operator
  • Manual Air Tank Drain
  • Makes tank easy to maintain
  • 460 Volt Three Phase Power
  • Easily wires into your 460V 3-phase, 20 amp system
  • INSTALL-120H installation kit recommended (not included)
  • 1 Year Factory Warranty
  • Extends to 3 years with AX-W95 & registration (sold separately)
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
32
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
200 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
795 Pounds
Product Length
76 Inches
Product Width
28 Inches
Product Height
53 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
32
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
32 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Solid Cast Iron 3 Cylinder Pump
  • Delivers 32 CFM at 175 PSI; 200 PSI maximum
  • Rugged components provide long-lasting dependability
  • Low 872 RPM extends pump life, runs quieter
  • Over 8 1/2" Of Finned Inter-Stage Cooling
  • Improves cooling & efficiency for optimum pump performance
  • 10-HP Heavy Duty Motor
  • Pre-wired magnetic starter for simple installation
  • Ideal for small manufacturing, auto body, & tire shops
  • 120 Gallon Horizontal Tank
  • ASME certified for reliability & safety
  • Fully Enclosed Belt Guard
  • Protects the belt & operator
  • Manual Air Tank Drain
  • Makes tank easy to maintain
  • 460 Volt Three Phase Power
  • Easily wires into your 460V 3-phase, 20 amp system
  • INSTALL-120H installation kit recommended (not included)
  • 1 Year Factory Warranty
  • Extends to 3 years with AX-W95 & registration (sold separately)
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
32
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
200 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
795 Pounds
Product Length
76 Inches
Product Width
28 Inches
Product Height
53 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
32
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
200 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
795 Pounds
Product Length
76 Inches
Product Width
28 Inches
Product Height
53 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
