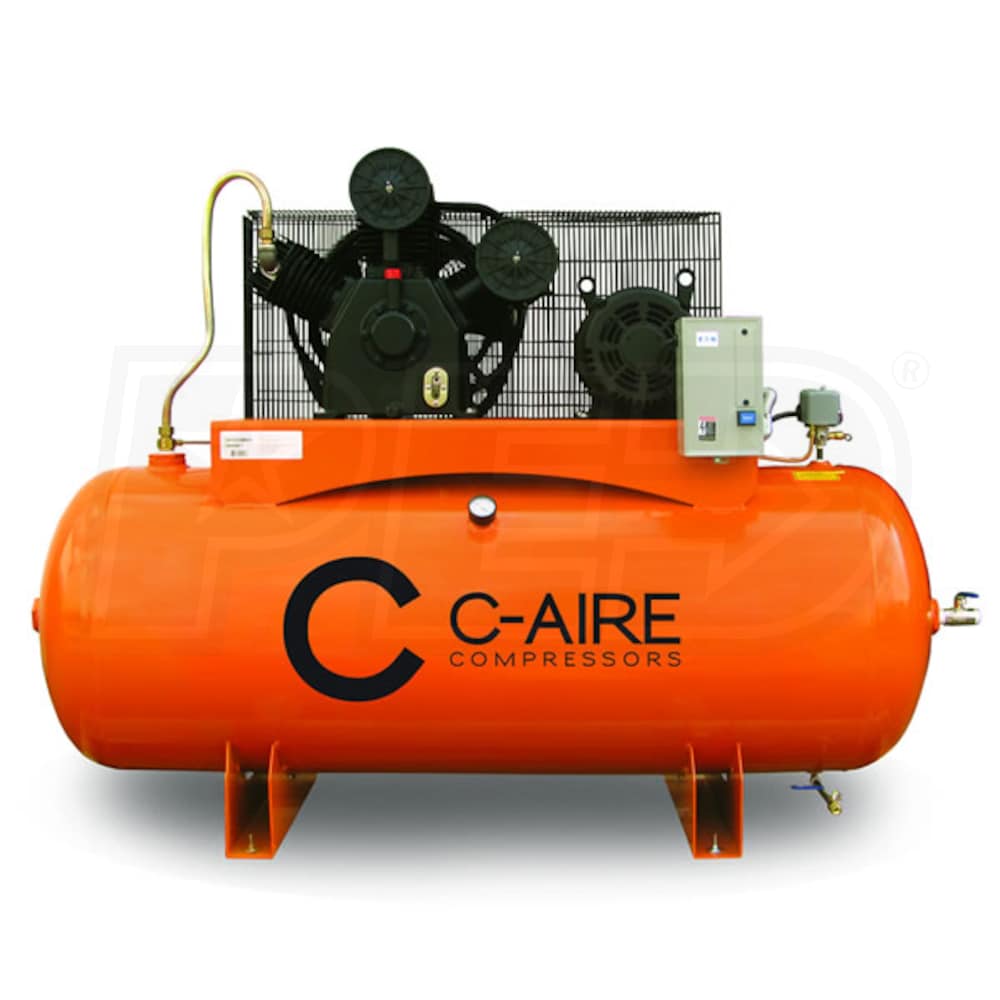

C-Aire 10-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase) Fully Packaged

C-Aire 10-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase) Fully Packaged
Model: A100H120-3460FP
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
32
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
32 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Fully Packaged
  • Includes aftercooler, automatic tank drain, & installation kit
  • Affordably reduces moisture almost 60%, prolonging tool life
  • Makes sure your compressor is set up correctly from the start

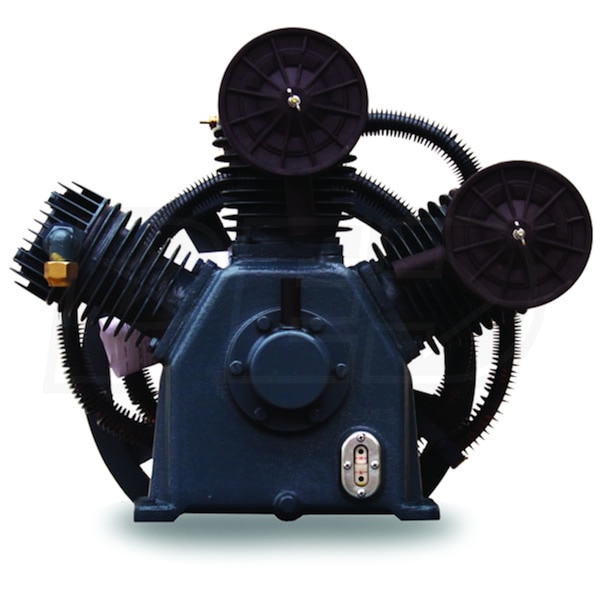

  • Solid Cast Iron 3 Cylinder, 2 Stage Pump
  • Delivers 32 CFM at 175 PSI; 200 PSI maximum
  • Low 872 RPM extends pump life, runs quieter

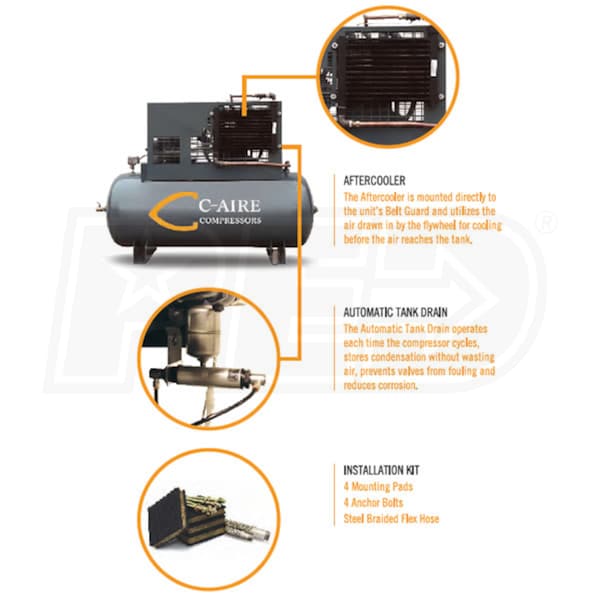

  • Belt Guard Mounted Aftercooler
  • The flywheel draws in air for cooling before it reaches the tank
  • 10-HP Heavy Duty Motor
  • Pre-wired magnetic starter for simple installation
  • Ideal for small manufacturing, auto body, & tire shops
  • 120 Gallon Horizontal Tank
  • ASME certified for reliability & safety
  • Moisture Minder Automatic Tank Drain
  • Stores condensation without wasting air; reduces corrosion
  • Installation Kit
  • Includes vibration pads, anchor bolts, & steel-braided flex hose
  • 1 Year Factory Warranty
  • Extends to 3 years with AX-W95 & registration (sold separately)
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
32
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
200 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
845 Pounds
Product Length
76 Inches
Product Width
28 Inches
Product Height
53 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
32
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
32 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Fully Packaged
  • Includes aftercooler, automatic tank drain, & installation kit
  • Affordably reduces moisture almost 60%, prolonging tool life
  • Makes sure your compressor is set up correctly from the start
  • Solid Cast Iron 3 Cylinder, 2 Stage Pump
  • Delivers 32 CFM at 175 PSI; 200 PSI maximum
  • Low 872 RPM extends pump life, runs quieter
  • Belt Guard Mounted Aftercooler
  • The flywheel draws in air for cooling before it reaches the tank
  • 10-HP Heavy Duty Motor
  • Pre-wired magnetic starter for simple installation
  • Ideal for small manufacturing, auto body, & tire shops
  • 120 Gallon Horizontal Tank
  • ASME certified for reliability & safety
  • Moisture Minder Automatic Tank Drain
  • Stores condensation without wasting air; reduces corrosion
  • Installation Kit
  • Includes vibration pads, anchor bolts, & steel-braided flex hose
  • 1 Year Factory Warranty
  • Extends to 3 years with AX-W95 & registration (sold separately)
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
32
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
200 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
845 Pounds
Product Length
76 Inches
Product Width
28 Inches
Product Height
53 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
32
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
200 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
845 Pounds
Product Length
76 Inches
Product Width
28 Inches
Product Height
53 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
