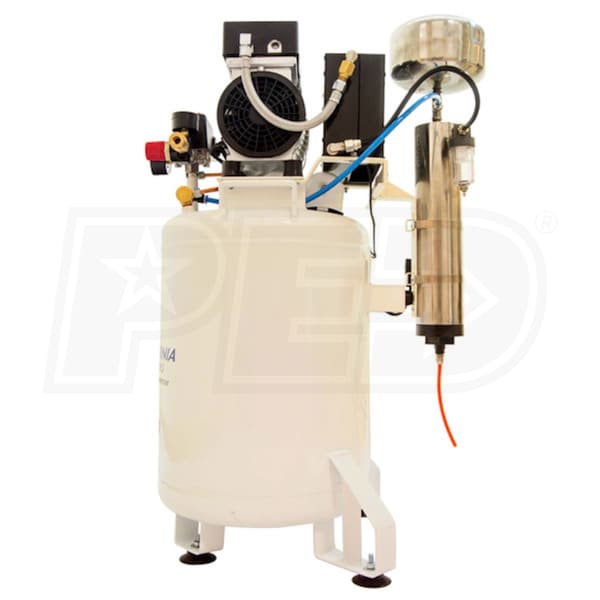

California Air Tools SP Ultra Quiet Oil-Free 1-HP 10-Gallon Air Compressor w/ Dryer

Model:

CAT-10010DC

Write A Review
$1,084.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

California Air Tools SP Ultra Quiet Oil-Free 1-HP 10-Gallon Air Compressor w/ Dryer
California Air Tools SP Ultra Quiet Oil-Free 1-HP 10-Gallon Air Compressor w/ Dryer
Model: CAT-10010DC
$1,084.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

2.2

Tank Size

10



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Powerful 1-HP SP-Series 110V Motor (Not For Medical Use)
  • 60 dBA is ideal for indoor use where noise is an issue
  • Low 1400 RPM creates less noise & wear; low 8.5 Amp draw
  • Top mounted controls provide easy access
  • Oil-Free Dual Piston Pump System
  • 3 CFM @ 40 PSI; 2.2 CFM @ 90 PSI; 125 PSI maximum
  • Minimum pump life of 3000 hours before service; 25% more life before repair
  • Works in a variety of temperatures & surroundings
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 5 minutes
  • Air Dryer With Activated Alumina Desiccant
  • Removes water vapor from compressed air to protect tools & machinery
  • Activated Alumina has a 4000 hour service life
  • Provides high water, carbon dioxide, & sulphur compound adsorption
  • Aftercooler Condenser
  • Heat exchanger cools the discharge air, causing condensation
  • The water vapor is pushed into the air dryer for evaporation
  • 10 Gallon Steel Air Tank
  • Kick-on pressure 90 PSI; kick-off pressure 125 PSI
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-10010DC
specs product image PID-70271
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
60
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
8.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
1
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.2
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
75 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
23 Inches
Product Height
32 Inches
Power Type
Electric
UPC
743369710141
