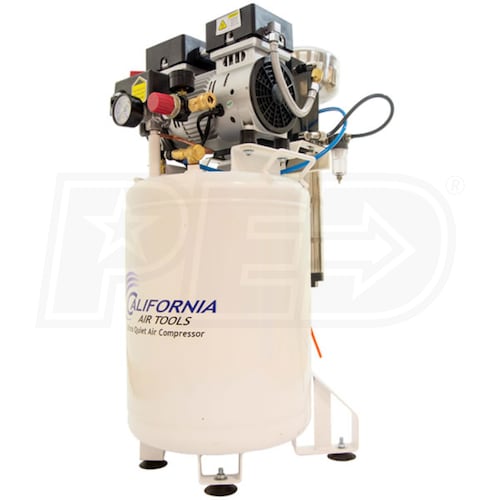

California Air Tools MP Ultra Quiet Oil-Free 1-HP 10-Gallon Steel Tank Air Compressor w/ Dryer
Model: CAT-10010LFDC
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$1,058.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability November 27, 2020
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Contractor
Style
Single Stage 1-Phase
CFM
3
CFM Rated @ 90 PSI
Tank Size
10
Gallons
Grade
Contractor
CFM
3 CFM Rated @ 90 PSI
Tank Size
10 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Powerful Heavy-Duty MP Series 1-HP Motor
  • Low 1400 RPM creates less noise & wear
  • 60 dBA is ideal for indoor use where noise is an issue
  • Oil-Free MP100LF Dual Piston Pump System
  • 4 CFM @ 40 PSI; 3 CFM @ 90 PSI; 125 PSI maximum
  • Has a 4000+ hour life cycle before wear; 30% more life before repair
  • Produces 25% more air compared to other 1-HP air compressor motors
  • 10 Gallon Steel Air Tank
  • Kick-on pressure 90 PSI; kic-off pressure 125 PSI
  • Time to fill tank from empty to full - 4 minutes
  • Aftercooler Condenser
  • Heat exchanger cools the discharge air, condensation is pushed to dryer

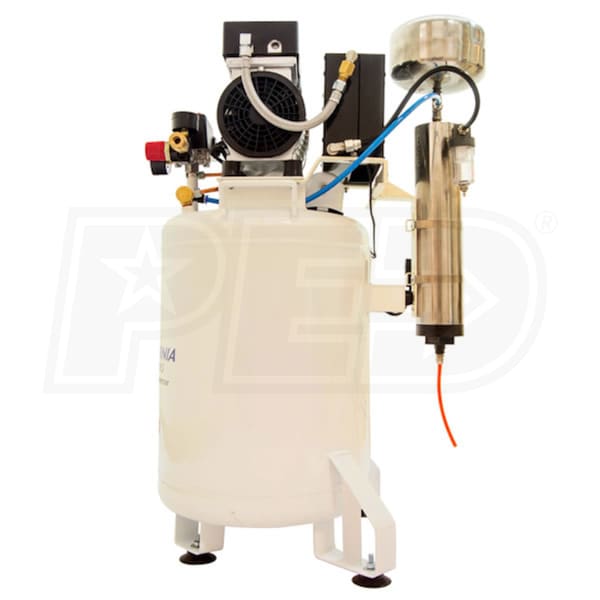

  • Air Dryer With Activated Alumina Desiccant
  • Removes water vapor from compressed air to protect tools & machinery
  • Activated Alumina has a 4000 hour service life

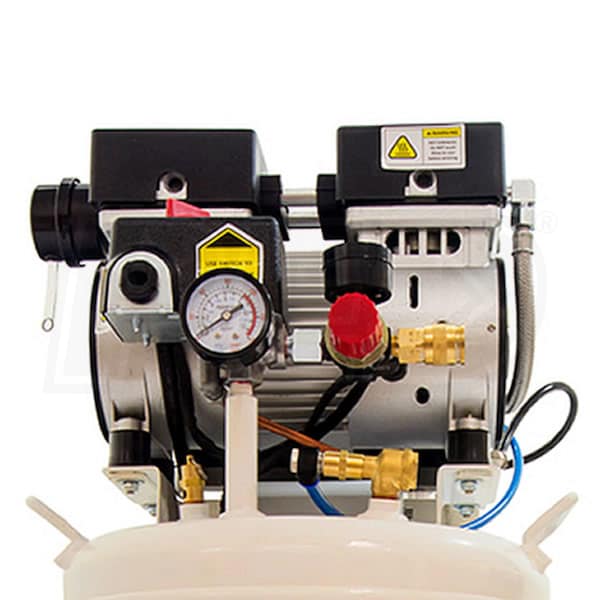

  • Top Mounted Controls
  • Dual gauges so you can check tank & tool pressure at a glance
  • 1/4" air outlet with a quick connector for fast hose changes
  • Thermal Overload Protector
  • 7.6 low amp draw works on most household outlets
Specifications
Engine
HP
1
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
60
Magnetic Starter
No
Amp Draw
7.6
Recommended Breaker
Consult Certified Electrician
Pump
CFM
3
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
125 PSI
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
75 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
23 Inches
Product Height
32 Inches
Power Type
Electric
UPC
743369710110
Grade
Contractor
Style
Single Stage 1-Phase
CFM
3
CFM Rated @ 90 PSI
Tank Size
10
Gallons
Grade
Contractor
CFM
3 CFM Rated @ 90 PSI
Tank Size
10 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Powerful Heavy-Duty MP Series 1-HP Motor
  • Low 1400 RPM creates less noise & wear
  • 60 dBA is ideal for indoor use where noise is an issue
  • Oil-Free MP100LF Dual Piston Pump System
  • 4 CFM @ 40 PSI; 3 CFM @ 90 PSI; 125 PSI maximum
  • Has a 4000+ hour life cycle before wear; 30% more life before repair
  • Produces 25% more air compared to other 1-HP air compressor motors
  • 10 Gallon Steel Air Tank
  • Kick-on pressure 90 PSI; kic-off pressure 125 PSI
  • Time to fill tank from empty to full - 4 minutes
  • Aftercooler Condenser
  • Heat exchanger cools the discharge air, condensation is pushed to dryer
  • Air Dryer With Activated Alumina Desiccant
  • Removes water vapor from compressed air to protect tools & machinery
  • Activated Alumina has a 4000 hour service life
  • Top Mounted Controls
  • Dual gauges so you can check tank & tool pressure at a glance
  • 1/4" air outlet with a quick connector for fast hose changes
  • Thermal Overload Protector
  • 7.6 low amp draw works on most household outlets
Specifications
Engine
HP
1
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
60
Magnetic Starter
No
Amp Draw
7.6
Recommended Breaker
Consult Certified Electrician
Pump
CFM
3
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
125 PSI
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
75 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
23 Inches
Product Height
32 Inches
Power Type
Electric
UPC
743369710110
Product Specs
+
Specifications
Engine
HP
1
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
60
Magnetic Starter
No
Amp Draw
7.6
Recommended Breaker
Consult Certified Electrician
Pump
CFM
3
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
125 PSI
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
75 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
23 Inches
Product Height
32 Inches
Power Type
Electric
UPC
743369710110
