California Air Tools SP Ultra Quiet Oil-Free 2-HP 10-Gallon Air Compressor w/ Dryer & Auto-Drain (220V 1-Phase)
Model: CAT-10020DCAD-22060
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$1,391.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Single Stage 1-Phase
CFM
5.3
CFM Rated @ 90 PSI
Tank Size
10
Gallons
Grade
Commercial
CFM
5.3 CFM Rated @ 90 PSI
Tank Size
10 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features

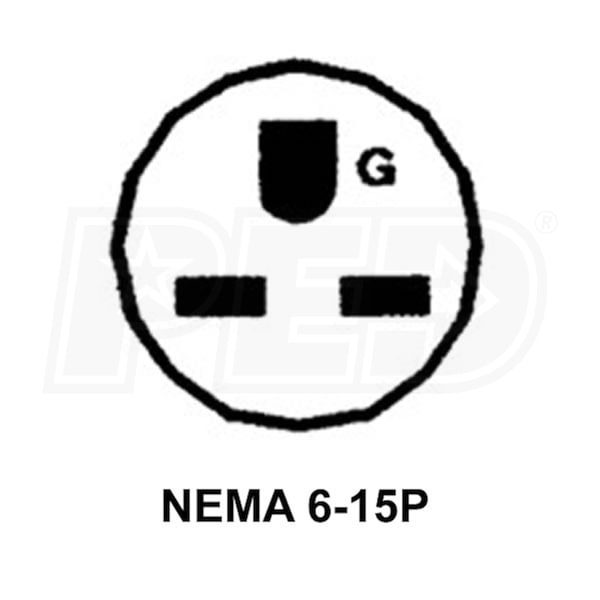

  • Powerful 2-HP SP-Series 220V Motor With NEMA 6-15p Plug
  • 70 dBA is ideal for indoor use where noise is an issue
  • Low 1400 RPM creates less noise & wear; low 7 Amp draw
  • Top mounted controls provide easy access
  • Oil-Free Dual Piston Pump System
  • 6.4 CFM @ 40 PSI; 5.3 CFM @ 90 PSI; 125 PSI maximum
  • Minimum pump life of 3000 hours before service
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 130 Seconds
  • Recovery time from 118 PSI to 125 PSI - 40 Seconds
  • Air Dryer With Activated Alumina Desiccant
  • Removes water vapor from compressed air to protect tools & machinery
  • Activated Alumina has a 4000 hour service life
  • Provides high water, carbon dioxide, & sulphur compound adsorption
  • Aftercooler Condenser
  • Heat exchanger cools the discharge air, causing condensation
  • The water vapor is pushed into the air dryer for evaporation
  • 10 Gallon Steel Air Tank w/ Automatic Drain Timer
  • Kick-on pressure 95 PSI; kick-off pressure 125 PSI
  • EZ1 auto-drain selects frequency & duration of tank drainage
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
70
Magnetic Starter
No
Amp Draw
7
Recommended Breaker
Consult Certified Electrician
Engine
HP
2
Pump
CFM
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
125 PSI
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
91 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
23 Inches
Product Height
35 Inches
Power Type
Electric
UPC
743369710301
Grade
Commercial
Style
Single Stage 1-Phase
CFM
5.3
CFM Rated @ 90 PSI
Tank Size
10
Gallons
Grade
Commercial
CFM
5.3 CFM Rated @ 90 PSI
Tank Size
10 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Powerful 2-HP SP-Series 220V Motor With NEMA 6-15p Plug
  • 70 dBA is ideal for indoor use where noise is an issue
  • Low 1400 RPM creates less noise & wear; low 7 Amp draw
  • Top mounted controls provide easy access
  • Oil-Free Dual Piston Pump System
  • 6.4 CFM @ 40 PSI; 5.3 CFM @ 90 PSI; 125 PSI maximum
  • Minimum pump life of 3000 hours before service
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 130 Seconds
  • Recovery time from 118 PSI to 125 PSI - 40 Seconds
  • Air Dryer With Activated Alumina Desiccant
  • Removes water vapor from compressed air to protect tools & machinery
  • Activated Alumina has a 4000 hour service life
  • Provides high water, carbon dioxide, & sulphur compound adsorption
  • Aftercooler Condenser
  • Heat exchanger cools the discharge air, causing condensation
  • The water vapor is pushed into the air dryer for evaporation
  • 10 Gallon Steel Air Tank w/ Automatic Drain Timer
  • Kick-on pressure 95 PSI; kick-off pressure 125 PSI
  • EZ1 auto-drain selects frequency & duration of tank drainage
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
70
Magnetic Starter
No
Amp Draw
7
Recommended Breaker
Consult Certified Electrician
Engine
HP
2
Pump
CFM
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
125 PSI
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
91 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
23 Inches
Product Height
35 Inches
Power Type
Electric
UPC
743369710301
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
70
Magnetic Starter
No
Amp Draw
7
Recommended Breaker
Consult Certified Electrician
Engine
HP
2
Pump
CFM
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
125 PSI
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
91 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
23 Inches
Product Height
35 Inches
Power Type
Electric
UPC
743369710301
