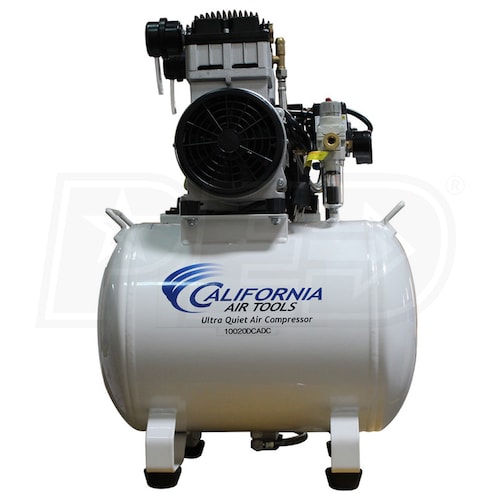

California Air Tools SP Series Ultra Quiet & Oil Free 2-HP 10-Gallon Steel Tank Air compressor w/ Dryer & Auto Drain (220V 1-Phase)

Model:

CAT-10020HDCADC-22060

Write A Review
$2,159.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from California Air Tools
Shipping to60601

California Air Tools SP Series Ultra Quiet & Oil Free 2-HP 10-Gallon Steel Tank Air compressor w/ Dryer & Auto Drain (220V 1-Phase)
California Air Tools SP Series Ultra Quiet & Oil Free 2-HP 10-Gallon Steel Tank Air compressor w/ Dryer & Auto Drain (220V 1-Phase)
Model: CAT-10020HDCADC-22060
$2,159.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Single Stage 1-Phase

CFM

5.30

Tank Size

10



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Ultra-Quiet 2-HP 10-Gallon Air Compressor
  • 70 dBA is ideal for indoor use where noise is an issue
  • Delivers power, 98% dry air, air flow and less service with at least 30% less noise
  • Powerful 2-HP SP-Series 220V Motor
  • Low 1680 RPM creates less noise & wear
  • Perfect for staple guns, brad nail guns, finish nail guns, nail guns, airbrushes & blow guns
  • Oil-Free Dual Piston Pump System
  • Allows for use in a variety of temperatures
  • Minimum pump life of 3000 hours before service compared to others with life cycles of 1500 hours or less
  • Designed For Increased Duty Cycles & Run Times
  • 6.4 CFM @ 40 PSI; 5.3 CFM @ 90 PSI; 125 PSI maximum
  • Time to fill tank from empty to full - 120 Seconds
  • Recovery time from 95 PSI to 125 PSI - 25 Seconds
  • "NEW" Air Dryer Cartridge System - Up to 98% Dry Air
  • Remove up to 98% of the water vapor from the air
  • Aftercooler cools the air to reduce moisture in system & tools
  • "Spin-On" air dryer cartridge has a life of 2-years before replacement
  • 10-Gallon Steel Air Tank
  • Just the right size to fit under a bench, desk or cabinet
  • Automatic drain routinely drains to prevent air contamination
  • Convenient Top Mounted Controls
  • Built-in regulator makes it easy to manage pressure
  • Includes 1/4" air outlet with quick connectors, dual pressure gauges and thermal overload
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-10020HDCADC-22060
specs product image PID-106613
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
7
Recommended Breaker
Consult Certified Electrician
Engine
HP
2
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.30
CFM Rated @
90 PSI
CFM @ 40 PSI
6.40
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
100 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
28 Inches
Product Height
26 Inches
Power Type
Electric
UPC
850004451441
