Product Description
+−
Features
Features
- 5-Gallon Pressure Pot For Casting
- Fast and easy 3-step assembly set up
- Designed for amateur and professionals
- Handles spray painting, casting and many more applications
- Steel Teflon Coated Tank
- Offers sturdy construction & compact design
- Interior dimensions are 13" W x 14-3/4" deep with lid
- Spilled paint cleans up easily; tank can also be used with materials other than paint
- Accepts A Standard 5 Gallon Paint Bucket
- Fits 5-gallon paint pal / paint bucket or canister 12" diameter x 14.5" H
- Set 1-gallon can of paint inside the tank instead of pouring into the tank
- Double Output Regulator
- Simply rotate the T-Handle to adjust pressure
- 80 PSI maximum in the tank, 5-60 PSI working pressure in the tank
- On/Off Ball Valve & Pressure Relief Valve
- Air hose (inlet) connection - 1/4"
- Easily controls flow of pressure and paint; normal operating spray is 25 to 30 PSI
- 4 Removable Caster Wheels
- Wheels move easily for transport; remove for stability
- Hose & Gun Not Included With This Model
- Exterior dimensions are 16" W x 24.5" high w/lid assembled
Specifications
Pump
Max PSI
80 PSI
Tank
Tank Outlet
3/8 Inch
Air Tools
Size
1/4"
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Overview
Weight
35 Pounds
Consumer Warranty
1 Year
Product Length
16 Inches
Product Width
16 Inches
Product Height
24.5 Inches
Dimensions
w/ Lid
UPC
743369003670
Features
Features
- 5-Gallon Pressure Pot For Casting
- Fast and easy 3-step assembly set up
- Designed for amateur and professionals
- Handles spray painting, casting and many more applications
- Steel Teflon Coated Tank
- Offers sturdy construction & compact design
- Interior dimensions are 13" W x 14-3/4" deep with lid
- Spilled paint cleans up easily; tank can also be used with materials other than paint
- Accepts A Standard 5 Gallon Paint Bucket
- Fits 5-gallon paint pal / paint bucket or canister 12" diameter x 14.5" H
- Set 1-gallon can of paint inside the tank instead of pouring into the tank
- Double Output Regulator
- Simply rotate the T-Handle to adjust pressure
- 80 PSI maximum in the tank, 5-60 PSI working pressure in the tank
- On/Off Ball Valve & Pressure Relief Valve
- Air hose (inlet) connection - 1/4"
- Easily controls flow of pressure and paint; normal operating spray is 25 to 30 PSI
- 4 Removable Caster Wheels
- Wheels move easily for transport; remove for stability
- Hose & Gun Not Included With This Model
- Exterior dimensions are 16" W x 24.5" high w/lid assembled
Specifications
Pump
Max PSI
80 PSI
Tank
Tank Outlet
3/8 Inch
Air Tools
Size
1/4"
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Overview
Weight
35 Pounds
Consumer Warranty
1 Year
Product Length
16 Inches
Product Width
16 Inches
Product Height
24.5 Inches
Dimensions
w/ Lid
UPC
743369003670
Product Specs
+−
Specifications
Pump
Max PSI
80 PSI
Tank
Tank Outlet
3/8 Inch
Air Tools
Size
1/4"
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Overview
Weight
35 Pounds
Consumer Warranty
1 Year
Product Length
16 Inches
Product Width
16 Inches
Product Height
24.5 Inches
Dimensions
w/ Lid
UPC
743369003670
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Is the bottom of the tank flat or rounded?
Gino
from Texas
February 13, 2019
Answer
The pressure pots are flat at the bottom and have rounded corners. They are not square cube; they are round and circular in shape.
Was this answer helpful?
Yes
1
No
1
+−
Can this tank be laid on its side to cast a long object?
Greg
from Pennsylvania
February 08, 2019
Answer
We reached out to California Air Tools on this and they have never tested this product for that type of application. Therefore it is not recommended to use as such.
Was this answer helpful?
Yes
2
No
0
Recommended Accessories
+−
Expert Recommended Accessories
Hand Picked By Our Expert Joshua
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Joshua A.
Manuals
+−
+
Ask Joshua, Our Product Expert, A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

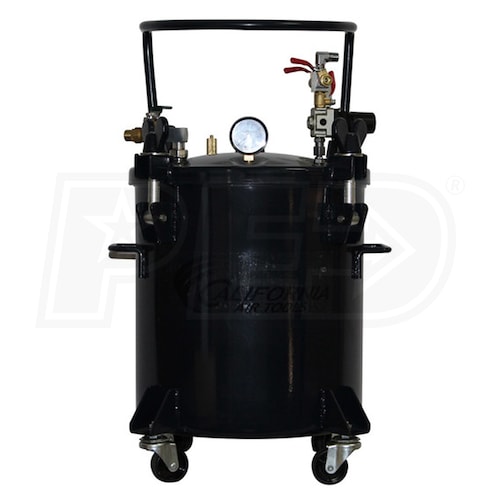

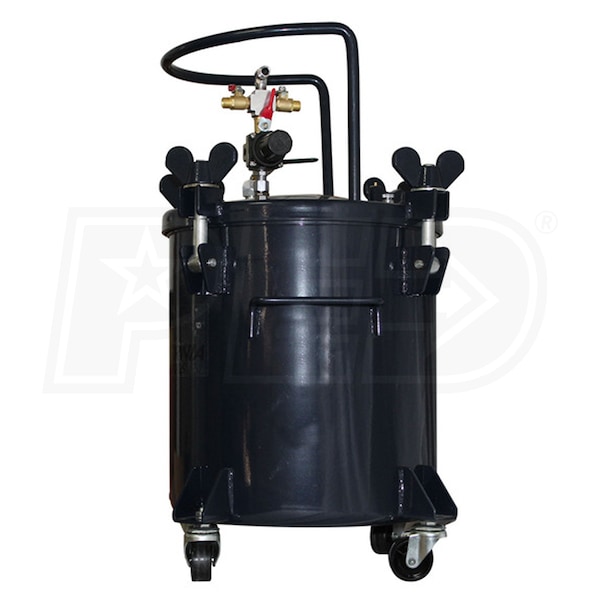

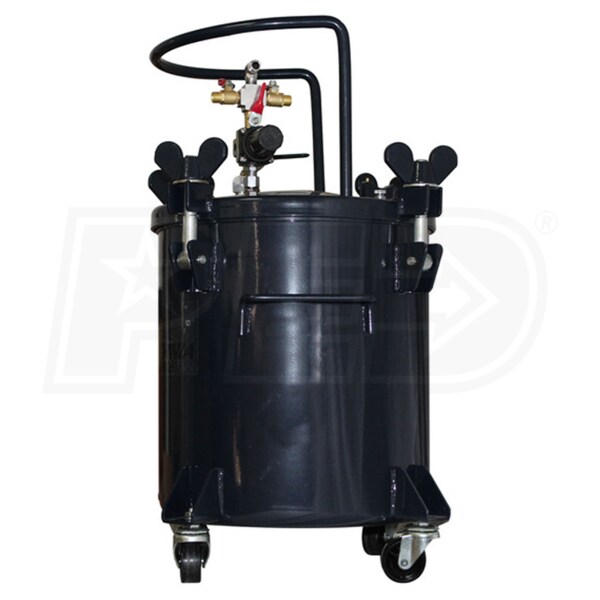

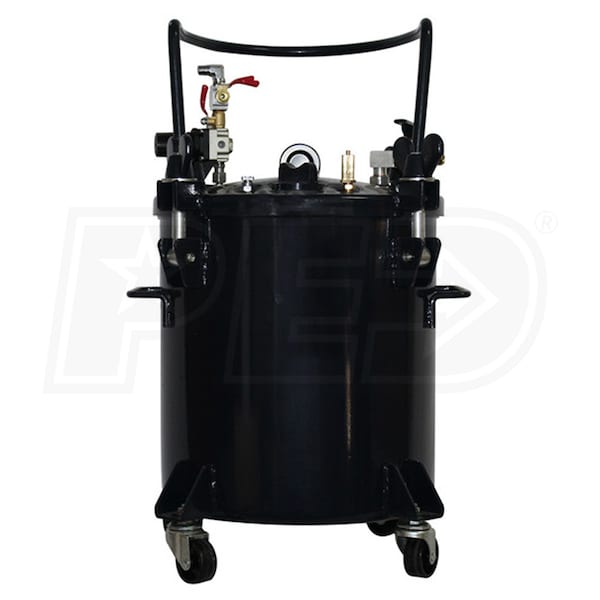

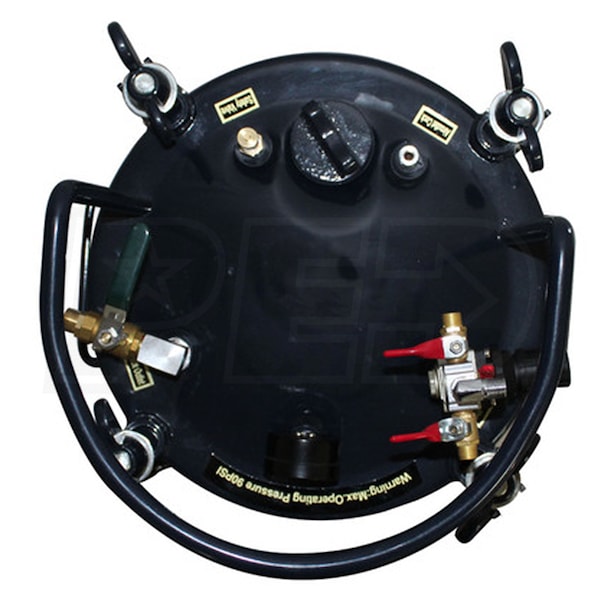

California Air Tools 5-Gallon Pressure Pot For Casting
×
