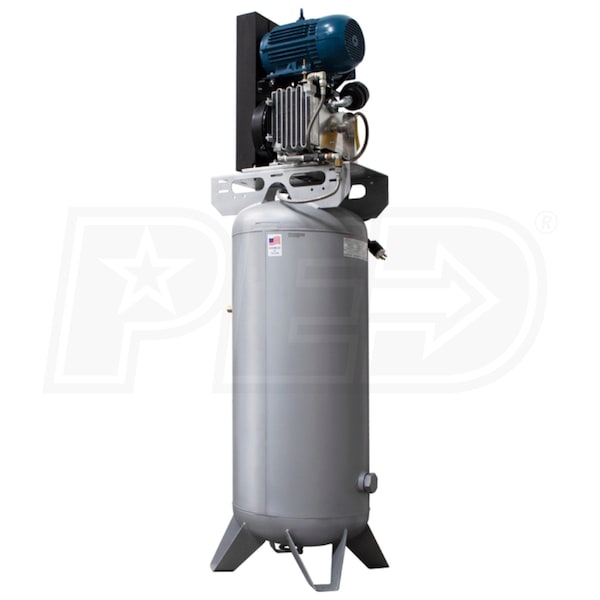

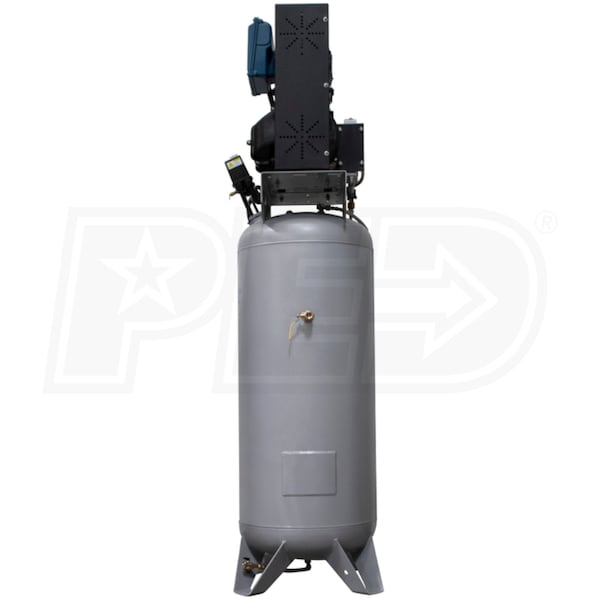

California Air Tools SP Ultra Quiet Oil-Free 5-HP 60-Gallon Scroll Air Compressor (208-230V 1-Phase)

Model:

CAT-60050SCR

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
California Air Tools SP Ultra Quiet Oil-Free 5-HP 60-Gallon Scroll Air Compressor  (208-230V 1-Phase)
California Air Tools SP Ultra Quiet Oil-Free 5-HP 60-Gallon Scroll Air Compressor (208-230V 1-Phase)
Model: CAT-60050SCR
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

14.8

Tank Size

60



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Completely Oil-Less, Scroll Air Compressor (Not For Medical Use)
  • Cleaner air for better tool operation
  • Engineered for high performance and durability

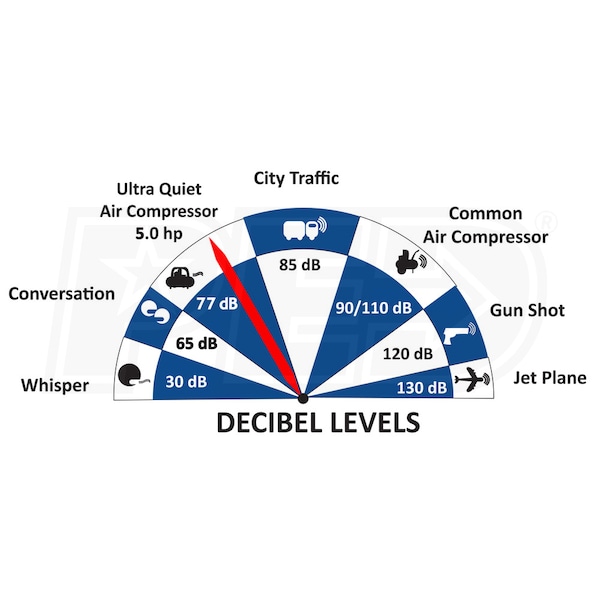

  • Ultra Quiet Design - 77 dba
  • One of the quietest air compressors in the industry
  • 100% Duty Cycle
  • Continuous running up to 10 hours @ 90 PSI ; 12 hours @ 40 PSI or less

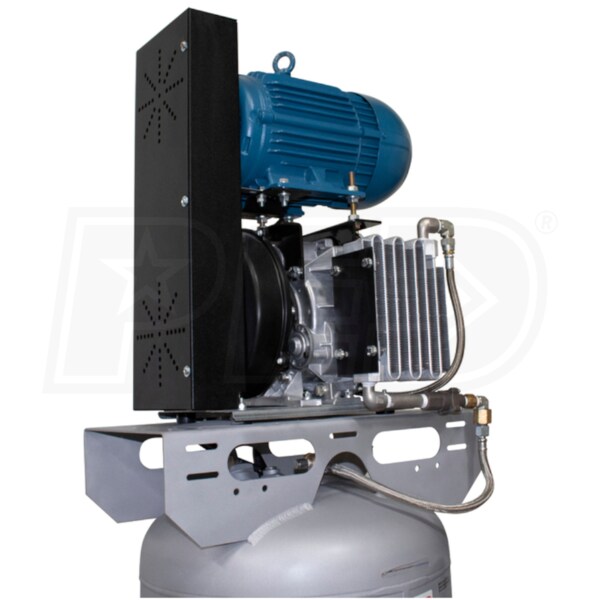

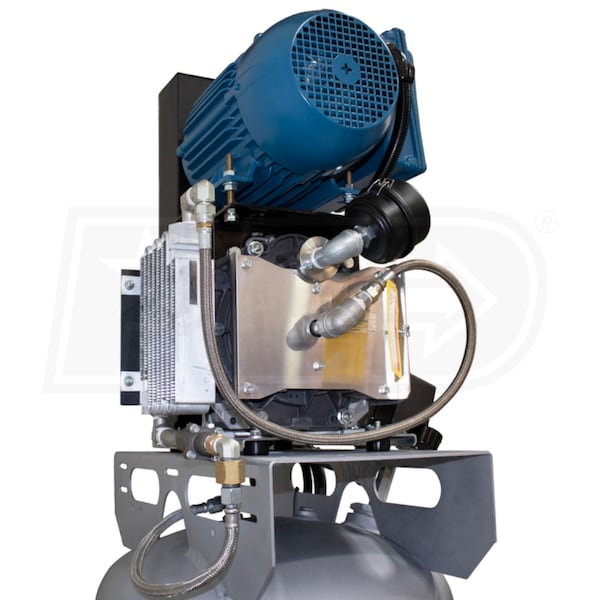

  • Oil-Free Scroll System
  • 14.80 CFM @ 40, 60 & 90 PSI
  • Maximum Pressure - 100 PSI @ 208v & 115 PSI @ 230v

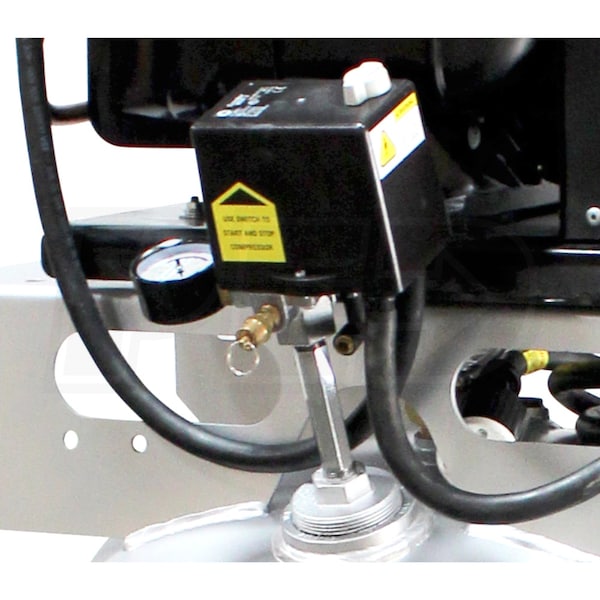

  • Condor Pressure Switch & Pressure Control Gauge
  • Makes this compressor easy to operate

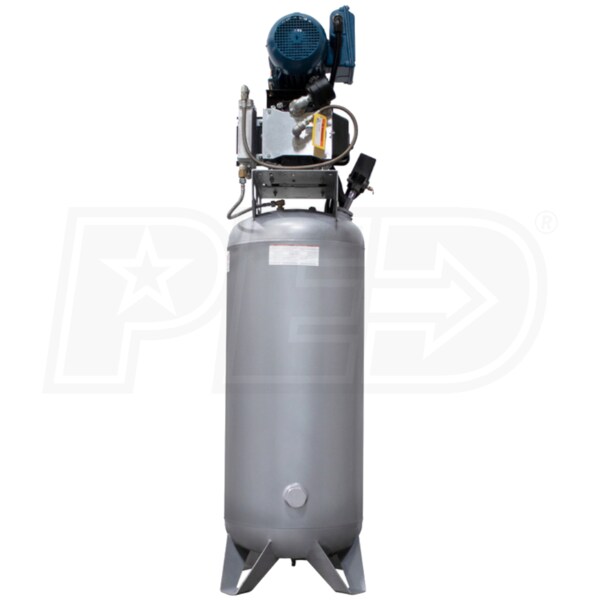

  • 60-Gallon ASME Certified Air Tank
  • Ideal size for a shop, warehouse or factory
  • Time to fill tank from empty to full - 4 minutes
  • Recovery time from 85 PSI to 115 PSI - 40 Second

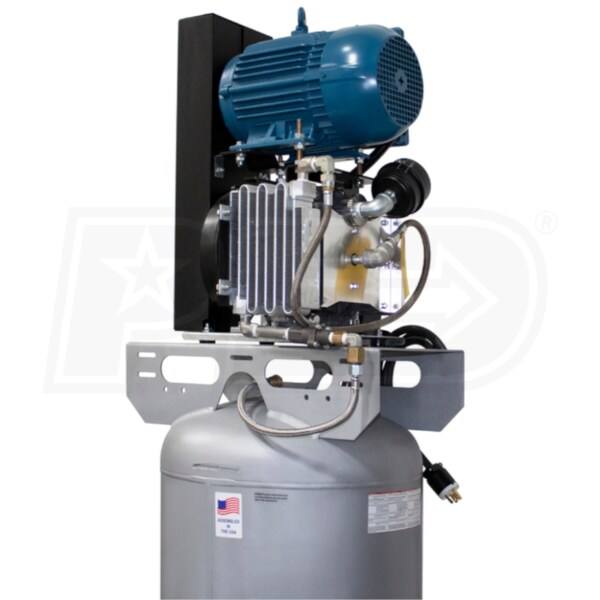

  • 5 HP 208-230V Single Phase Motor
  • Low 1700 RPM creates less noise & wear
  • Amp Draw - 23A @ 208V & 22A @ 230V
  • Thermal Overload Protector
  • Provides added protection for longer motor life
  • Long Life Cycle
  • Maintenance intervals of 10,000 hours (< 84F Ambient Temp)
  • Maximum Operating (ambient) Temperatures:36 to 104 F
  • 1/2" NPT (Female) Air Outlet
  • 7' Power Cord w/ NEMA 6-30P Plug
  • 1-Year Limited Warranty
  • Assembled In The USA w/ Global Components
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-60050SCR
specs product image PID-124552
Engine
HP
5
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
77
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22-23
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14.8
CFM Rated @
90 PSI
CFM @ 40 PSI
14.8
CFM @ 90 PSI
14.8
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
100-115 PSI
Pump Type
Scroll Compressor
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
325 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
30 Inches
Product Width
25 Inches
Product Height
83 Inches
UPC
850004451823
