California Air Tools MP Ultra Quiet Oil-Free 1-HP 8-Gallon Air Compressor w/ Dryer & Sound Proof Cabinet

Model:

CAT-8010DSPC

Write A Review
$2,465.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from California Air Tools
Shipping to60601

California Air Tools MP Ultra Quiet Oil-Free 1-HP 8-Gallon Air Compressor w/ Dryer & Sound Proof Cabinet
California Air Tools MP Ultra Quiet Oil-Free 1-HP 8-Gallon Air Compressor w/ Dryer & Sound Proof Cabinet
Model: CAT-8010DSPC
$2,465.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Single Stage 1-Phase

CFM

4

Tank Size

8



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

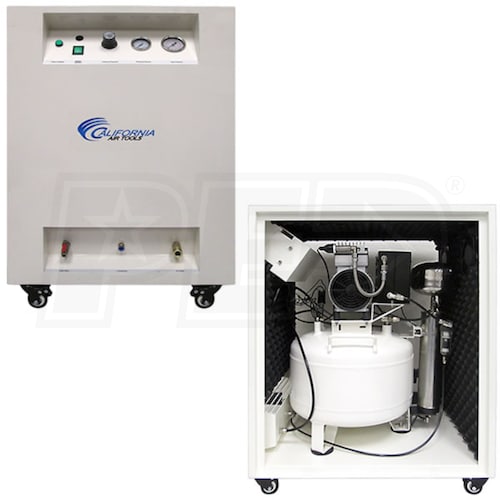

  • 1-HP 8-Gallon Air Compressor In A Sound Proof Cabinet
  • 40 dBA is ideal for indoor use where noise is an issue
  • Exhaust fans keep compressor cool; front controls for easy access
  • Powerful 1-HP MP-Series 110V Motor
  • Low 1400 RPM creates less noise & wear; easy-start valve
  • 7.6 Amp low amp draw works on most outlets

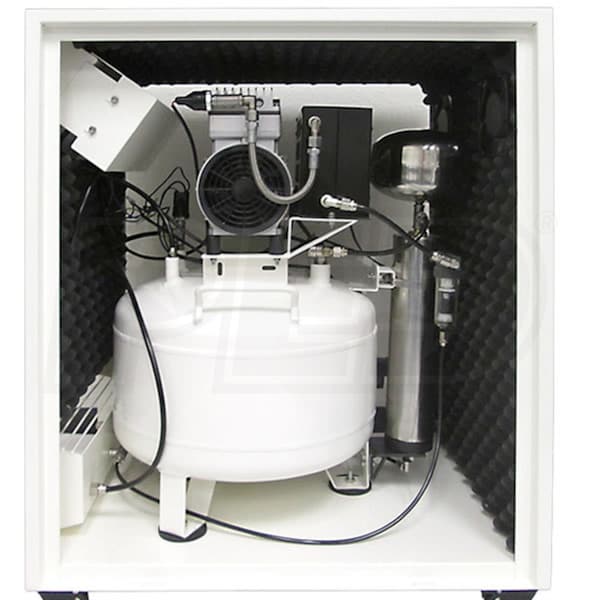

  • Oil-Free Dual Piston Pump System
  • 4 CFM @ 40 PSI; 3 CFM @ 90 PSI; 115 PSI maximum
  • Has a 4000+ hour life cycle before wear; comparable units are 500 hours or less
  • Air Dryer With 4,000 Hour Activated Alumina Desiccant
  • Removes water vapor from compressed air to protect tools & machinery
  • Aftercooler condenser cools the air, condensation is pushed to the dryer
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 3.15 minutes; kick-on pressure 85 PSI; kick-off pressure 115 PSI
  • 8 Gallon Steel Air Tank
  • Tank, compressor, & cabinet together weigh 125 pounds

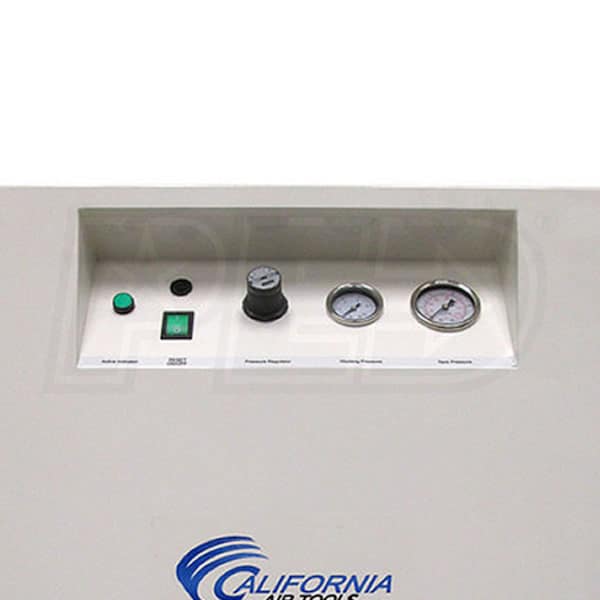

  • Front Mounted On/Off Switch & Controls
  • Dual gauges so you can check tank & tool pressure at a glance
  • 1/4" air outlet with quick connector for fast tool changes
  • Cabinet is pre-plumbed to accept compressor connections; 4 caster wheels
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-8010DSPC
specs product image PID-70289
General Information
Product Category
Air Compressor - Stationary
Engine
HP
1
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
40
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
7.6
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
115 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
125 Pounds
Consumer Warranty
1.5 Years
Commercial Warranty
1.5 Years
Product Length
21 Inches
Product Width
20 Inches
Product Height
32 Inches
Power Type
Electric
UPC
743369780113
