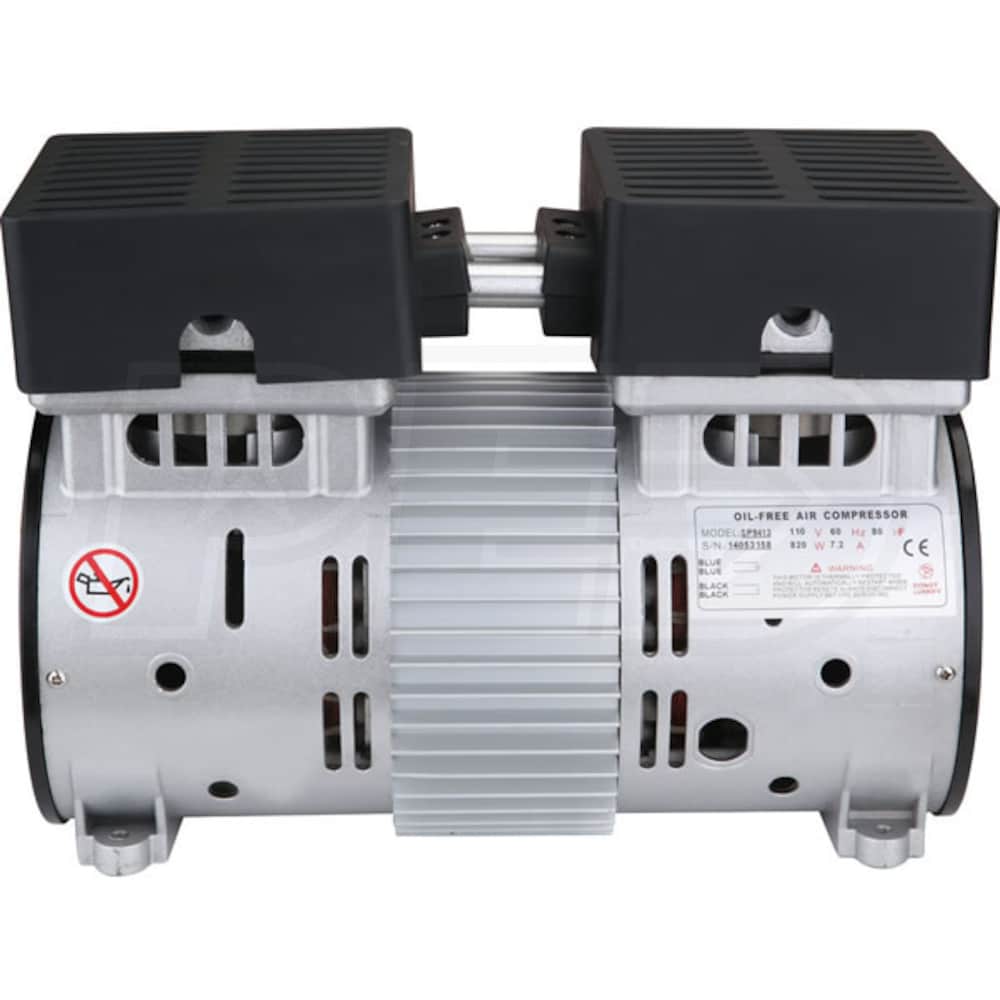

California Air Tools 1-HP 1680 RPM Ultra Quiet & Oil-Free Air Compressor Pump & Motor (110V 1-Phase)
Model:
SP-9413
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Powerful 1-HP SP-Series Motor
- Low 1680 RPM creates less noise & wear
- 60 dBA is ideal for indoor use where noise is an issue

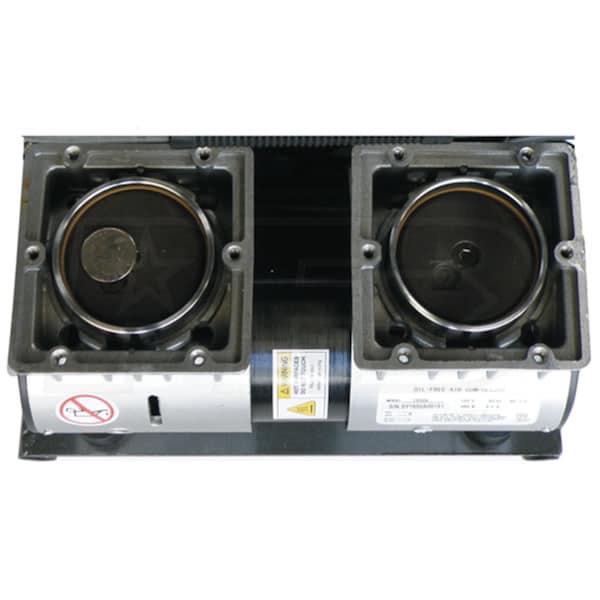

- Oil-Free Dual Piston Pump System
- 3.1 CFM @ 40 PSI; 2.2 CFM @ 90 PSI; 120 PSI maximum; 1/4" air outlet
- Has a 3000+ hour life cycle before wear; comparable units are 500 hours or less
- Works in a variety of temperatures & uneven terrains
- Complete Kit (Tank Not Included)
- Includes capacitor, air filter & 4 shock struts
- Air Filter
- Cleaner air for better tool operation
- Designed For Increased Duty Cycles & Run Times
- Runs cooler, lasts longer before service is needed
- Engineered for high performance & durability
- Thermal Overload Protector
- Protects the motor from overheating
- Versatile 8.5 Amp Draw
- Low amp draw works on most household outlets
- 1 Year Factory Warranty
- Protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
SP-9413
General Information
Product Category
Air Compressor Accessories
Engine
HP
1
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
60
Amp Draw
8.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.2
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Included
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor Accessories
Weight
21 Pounds
Certification
ETL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
10.7 Inches
Product Width
5.1 Inches
Product Height
7.5 Inches
UPC
743369794134
