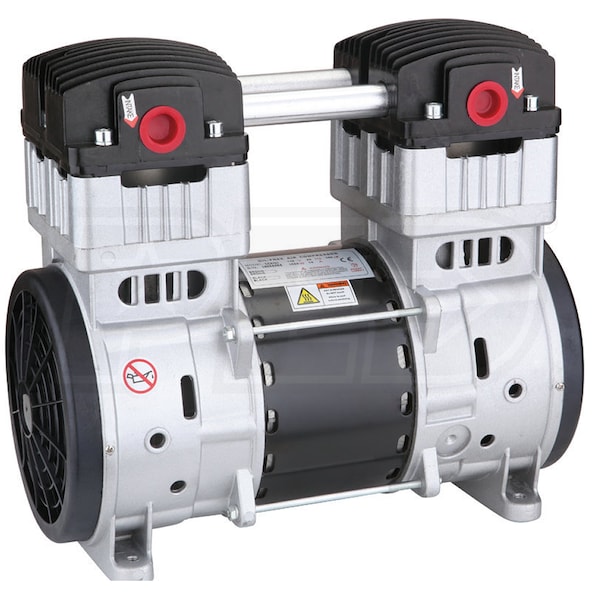

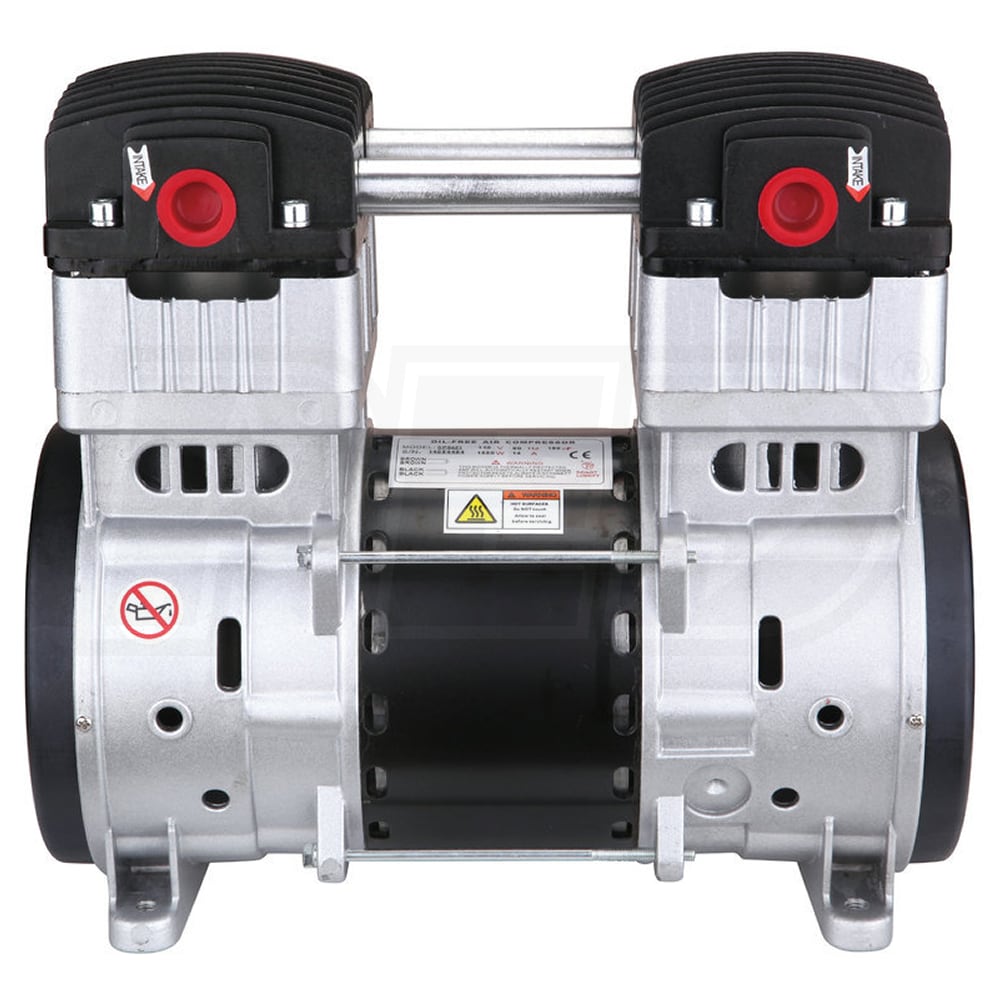

California Air Tools 2-HP Ultra Quiet & Oil-Free Air Compressor Pump & Motor (220V 1-Phase)
Model: SP-9421-22060
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Powerful 2-HP SP-Series 220V-1 Motor
- Low 1680 RPM creates less noise & wear
- 70 dBA is ideal for indoor use where noise is an issue
- Low 7.5 amp draw is wired for 220V single phase
- Oil-Free Dual Piston Pump System
- 5.3 CFM @ 90 PSI and 125 PSI rated/running PSI
- Designed to have a 3000+ hour life cycle before wear
- Works in a variety of temperatures & uneven terrains
- Complete Kit (Tank Not Included)
- Includes capacitor, air filter & 4 shock struts
- Easy connection with 3/8" air outlet
- Air Filter
- Cleaner air for better tool operation
- Removes dirt, dust, and moisture for cleaner air
- Designed For Increased Duty Cycles & Run Times
- Runs cooler, lasts longer before service is needed
- Engineered for high performance & durability
- Thermal Overload Protector
- Protects the motor from overheating
- Swedish reed valves which improves air flow
- 1 Year Factory Warranty
- Protects your investment
Specifications
Engine
HP
2
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
70
Amp Draw
7.5
Pump
CFM
5.3
CFM Rated @
90 PSI
CFM @ 40 PSI
6.4
Pump Material
Aluminum
Max PSI
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Included
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Weight
40 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year

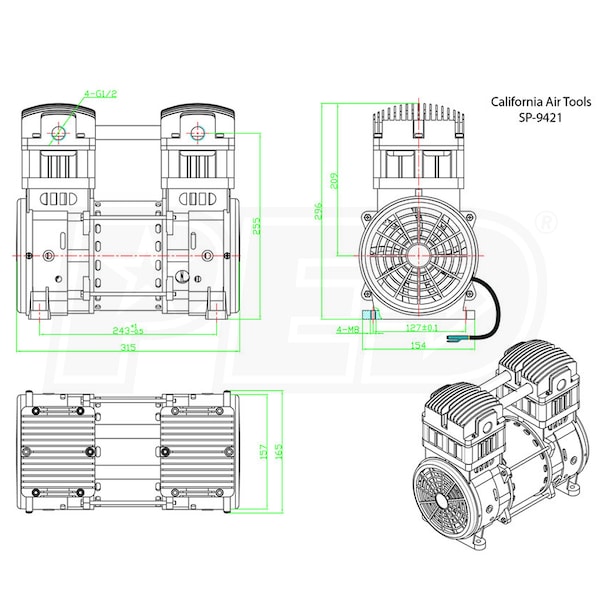

Product Length
12.4 Inches
Product Width
6.1 Inches
Product Height
11.7 Inches
UPC
743369794233
Features
Features
- Powerful 2-HP SP-Series 220V-1 Motor
- Low 1680 RPM creates less noise & wear
- 70 dBA is ideal for indoor use where noise is an issue
- Low 7.5 amp draw is wired for 220V single phase
- Oil-Free Dual Piston Pump System
- 5.3 CFM @ 90 PSI and 125 PSI rated/running PSI
- Designed to have a 3000+ hour life cycle before wear
- Works in a variety of temperatures & uneven terrains
- Complete Kit (Tank Not Included)
- Includes capacitor, air filter & 4 shock struts
- Easy connection with 3/8" air outlet
- Air Filter
- Cleaner air for better tool operation
- Removes dirt, dust, and moisture for cleaner air
- Designed For Increased Duty Cycles & Run Times
- Runs cooler, lasts longer before service is needed
- Engineered for high performance & durability
- Thermal Overload Protector
- Protects the motor from overheating
- Swedish reed valves which improves air flow
- 1 Year Factory Warranty
- Protects your investment
Specifications
Engine
HP
2
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
70
Amp Draw
7.5
Pump
CFM
5.3
CFM Rated @
90 PSI
CFM @ 40 PSI
6.4
Pump Material
Aluminum
Max PSI
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Included
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Weight
40 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
12.4 Inches
Product Width
6.1 Inches
Product Height
11.7 Inches
UPC
743369794233
Product Specs
+−
Specifications
Engine
HP
2
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
70
Amp Draw
7.5
Pump
CFM
5.3
CFM Rated @
90 PSI
CFM @ 40 PSI
6.4
Pump Material
Aluminum
Max PSI
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Included
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Weight
40 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
12.4 Inches
Product Width
6.1 Inches
Product Height
11.7 Inches
UPC
743369794233
