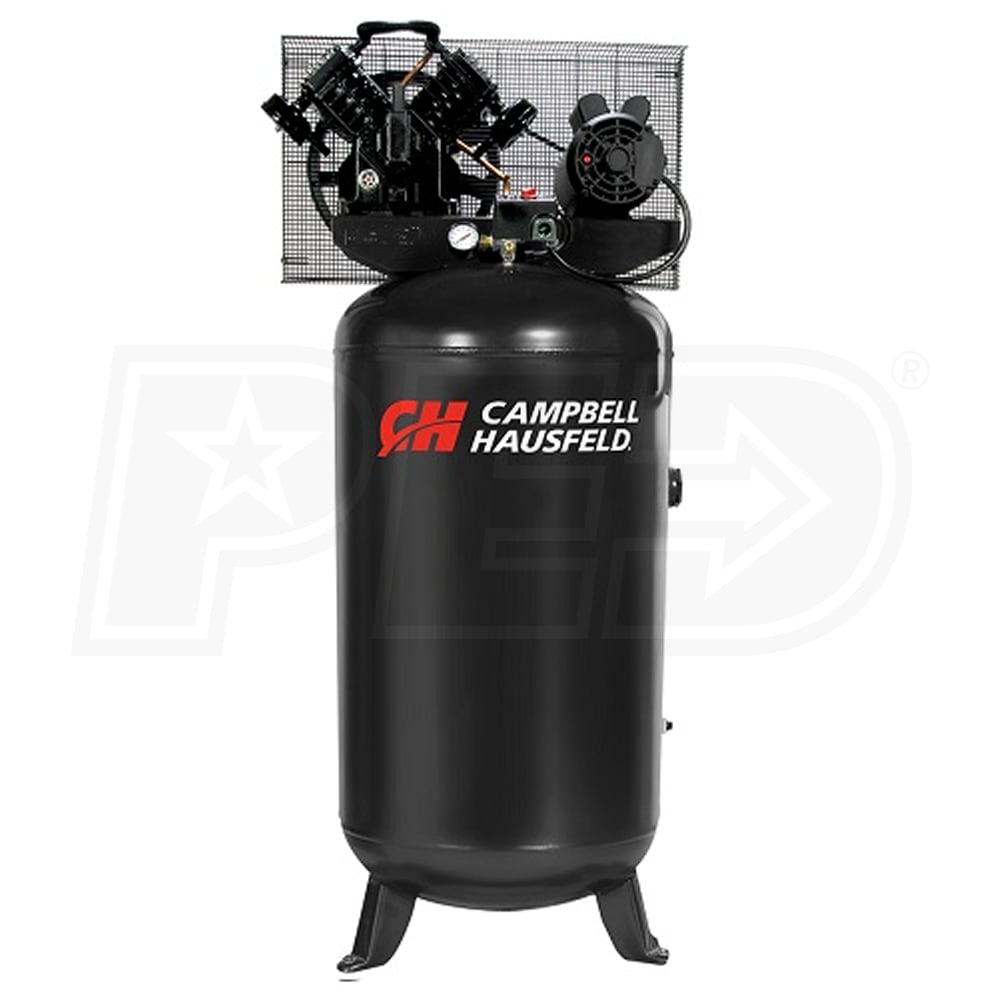

Campbell Hausfeld 5-HP 80-Gallon Single Stage Air Compressor (208/230V 1-Phase)
Model:
CE4104
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Single Stage 1-Phase
CFM
16
Tank Size
80
- Campbell Hausfeld 208-230 Volt Air Compressor
- Ideal for small shops, automotive enthusiast or serious do-it-yourselfer
- Cast Iron Twin Cylinder Pump
- Oil-lubricated for extended performance
- Cast-iron pump is designed for long, reliable life of up to 10,000 hours
- High Air Flow
- Operates over 20 air tools for automotive spray painting, automotive sanding work, cutting sheet metal, grin
- Delivers 16 CFM @ 90 PSI
- Tank rated to 140 PSI maximum
- 80-gallon, ASME-certified tank is a vertical design for space saving in the shop or garage
- Commercial-Style Metal Belt Guard
- More durable than plastic; allows belt to run cooler & last longer
- Tank Pressure Gauge & Pressure Switch
- View the pressure of your tank easily
- Preset pressure switch set at 110 PSI cut-in and 140 PSI cut-out
- Manual Tank Drain
- Routine draining prevents air contamination & prolongs tool life
- 3-Year Limited Warranty (1-Year Labor)
- Protects your investment against defects in material and/or workmanship
- ***Unit Does Not Ship With Oil***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
CE4104
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
86
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16
CFM Rated @
90 PSI
CFM @ 40 PSI
17.3
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
140 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
409 Pounds
Certification
CSA, UL, ETL, ASME
Consumer Warranty
3 Years
Product Length
31 Inches
Product Width
43 Inches
Product Height
81 Inches
Power Type
Electric
Reviews
(5)
Campbell Hausfeld CE4104 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Melissa, the Air Compressor Expert
How loud is this compressor? I'll be using it in my garage in a residential neighborhood.
