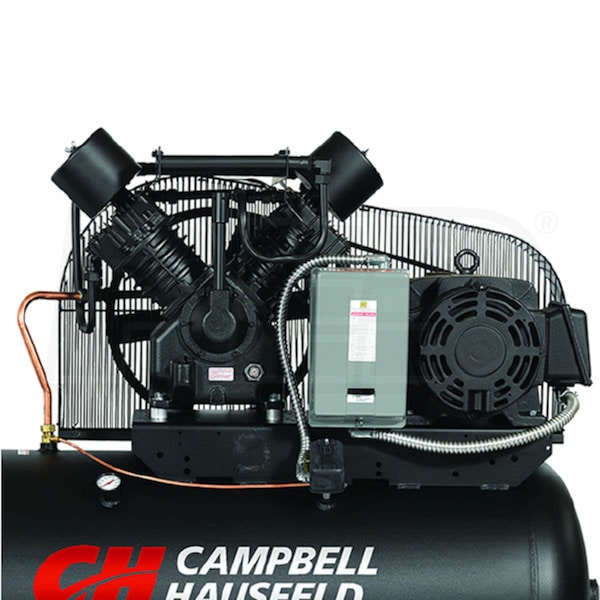

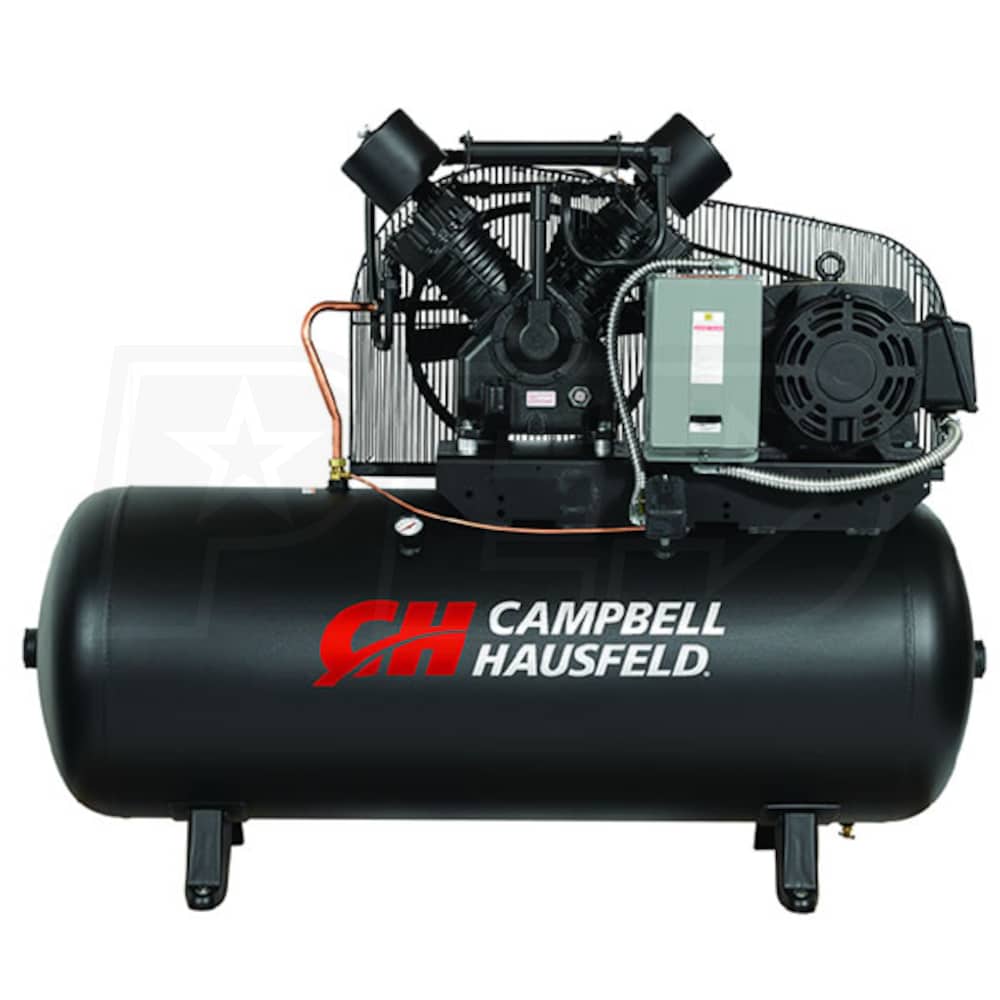

Campbell Hausfeld 15-HP 120-Gallon Two Stage Air Compressor (208V 3-Phase) w/ Starter
Model: CE8003
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
50
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
50 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
- Rugged Cast Iron Oil Lubricated Two Stage Pump
- Made for heavy duty commercial & industrial applications
- Delivers Up To 15,000+ Hours Of Pump Life
- Based on B-10 bearing rating
- Durable stainless steel valves & ductile iron crankshaft
- Reliable precision balanced flywheel & low pump RPM
- 15 Horsepower Tri-Voltage NEMA Motor
- Totally enclosed metal belt guard
- Magnetic starter factory wired and installed
- 120 Gallon ASME Code Tank
- Certified to 200 PSI maximum pressure for safe operation
- Exceptional 3 Year Warranty
- Rugged enough for fabrication & repair shops & industrial use
- 175 Maximum PSI
- Operates a wider range of tools & provides longer run time
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
50
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
908 Pounds
Certification
ASME
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
29.5 Inches
Product Width
78 Inches
Product Height
56 Inches
Power Type
Electric
UPC
045564627225
Grade

Style

CFM
50
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
50 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
- Rugged Cast Iron Oil Lubricated Two Stage Pump
- Made for heavy duty commercial & industrial applications
- Delivers Up To 15,000+ Hours Of Pump Life
- Based on B-10 bearing rating
- Durable stainless steel valves & ductile iron crankshaft
- Reliable precision balanced flywheel & low pump RPM
- 15 Horsepower Tri-Voltage NEMA Motor
- Totally enclosed metal belt guard
- Magnetic starter factory wired and installed
- 120 Gallon ASME Code Tank
- Certified to 200 PSI maximum pressure for safe operation
- Exceptional 3 Year Warranty
- Rugged enough for fabrication & repair shops & industrial use
- 175 Maximum PSI
- Operates a wider range of tools & provides longer run time
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
50
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
908 Pounds
Certification
ASME
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
29.5 Inches
Product Width
78 Inches
Product Height
56 Inches
Power Type
Electric
UPC
045564627225
Product Specs
+−
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
50
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
908 Pounds
Certification
ASME
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
29.5 Inches
Product Width
78 Inches
Product Height
56 Inches
Power Type
Electric
UPC
045564627225
