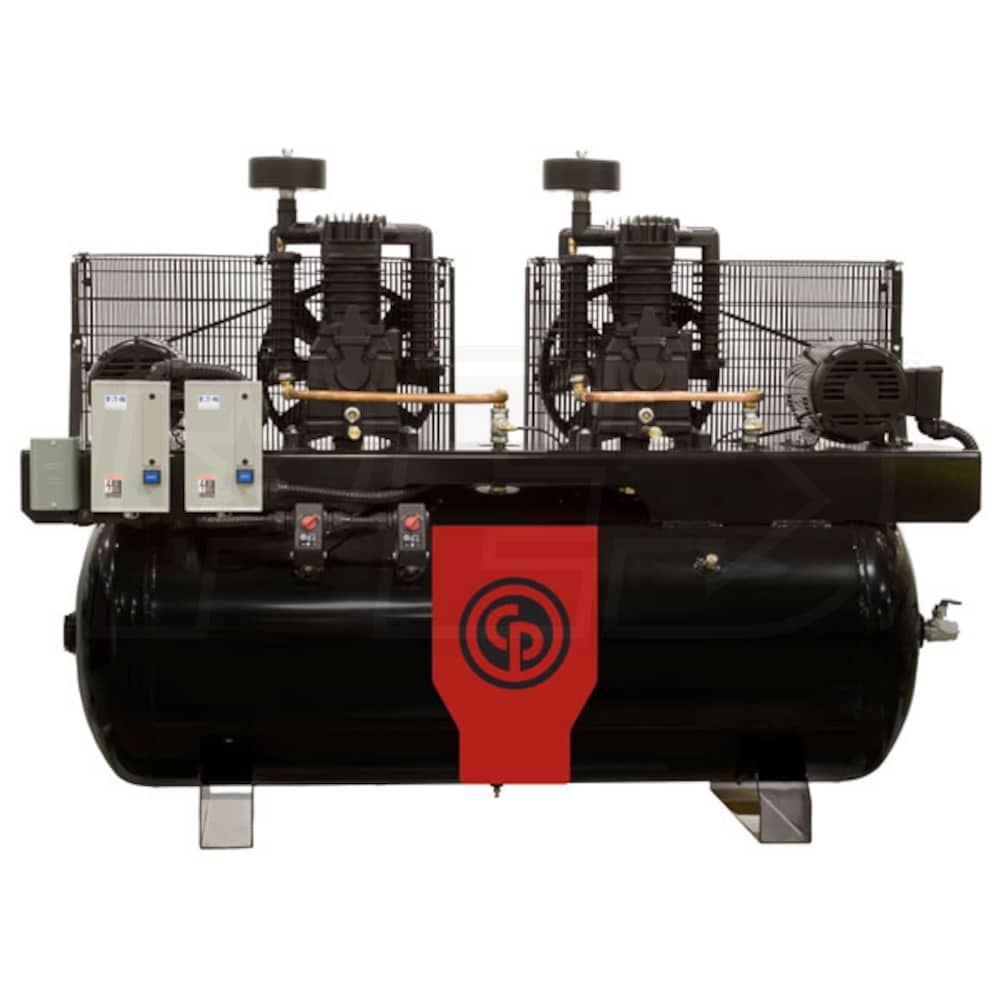

Chicago Pneumatic 5-HP / 10-HP 120-Gallon Two-Stage Duplex Air Compressor (208/230V 3-Phase)

Chicago Pneumatic 5-HP / 10-HP 120-Gallon Two-Stage Duplex Air Compressor (208/230V 3-Phase)
Model: RCP-10123D
$4,199.99
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$75.00
Extended Warranty
Excludes CA

Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
CFM
33.2
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
33.2 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Duplex Compressor Delivers Great Performance And Value
  • 2 pumps and motors with an alternator for optimum performance
  • Dependable And Easy To Use
  • Built in redundancy to make sure you get the job done
  • Alternating controls for balanced unit wear & performance
  • Sturdy Construction Prolongs The Life Of Your Investment
  • Solid cast iron cylinders on 2, 5 HP motors
  • Dual pressure switch controls
  • Fully enclosed with high flow belt guard
  • Professional Features
  • 120 gallon tank and safety valves are ASME/CRN certified
  • Magnetic starters and three phase power
  • Full 2 year factory warranty
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
33.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage - Dual Pump
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Horizontal
Overview
Certification
ASME/CRN
Weight
778 Pounds
Product Length
77 Inches
Product Width
27 Inches
Product Height
56 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
Grade
Commercial
Style
CFM
33.2
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
33.2 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Duplex Compressor Delivers Great Performance And Value
  • 2 pumps and motors with an alternator for optimum performance
  • Dependable And Easy To Use
  • Built in redundancy to make sure you get the job done
  • Alternating controls for balanced unit wear & performance
  • Sturdy Construction Prolongs The Life Of Your Investment
  • Solid cast iron cylinders on 2, 5 HP motors
  • Dual pressure switch controls
  • Fully enclosed with high flow belt guard
  • Professional Features
  • 120 gallon tank and safety valves are ASME/CRN certified
  • Magnetic starters and three phase power
  • Full 2 year factory warranty
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
33.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage - Dual Pump
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Horizontal
Overview
Certification
ASME/CRN
Weight
778 Pounds
Product Length
77 Inches
Product Width
27 Inches
Product Height
56 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
33.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage - Dual Pump
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Horizontal
Overview
Certification
ASME/CRN
Weight
778 Pounds
Product Length
77 Inches
Product Width
27 Inches
Product Height
56 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
