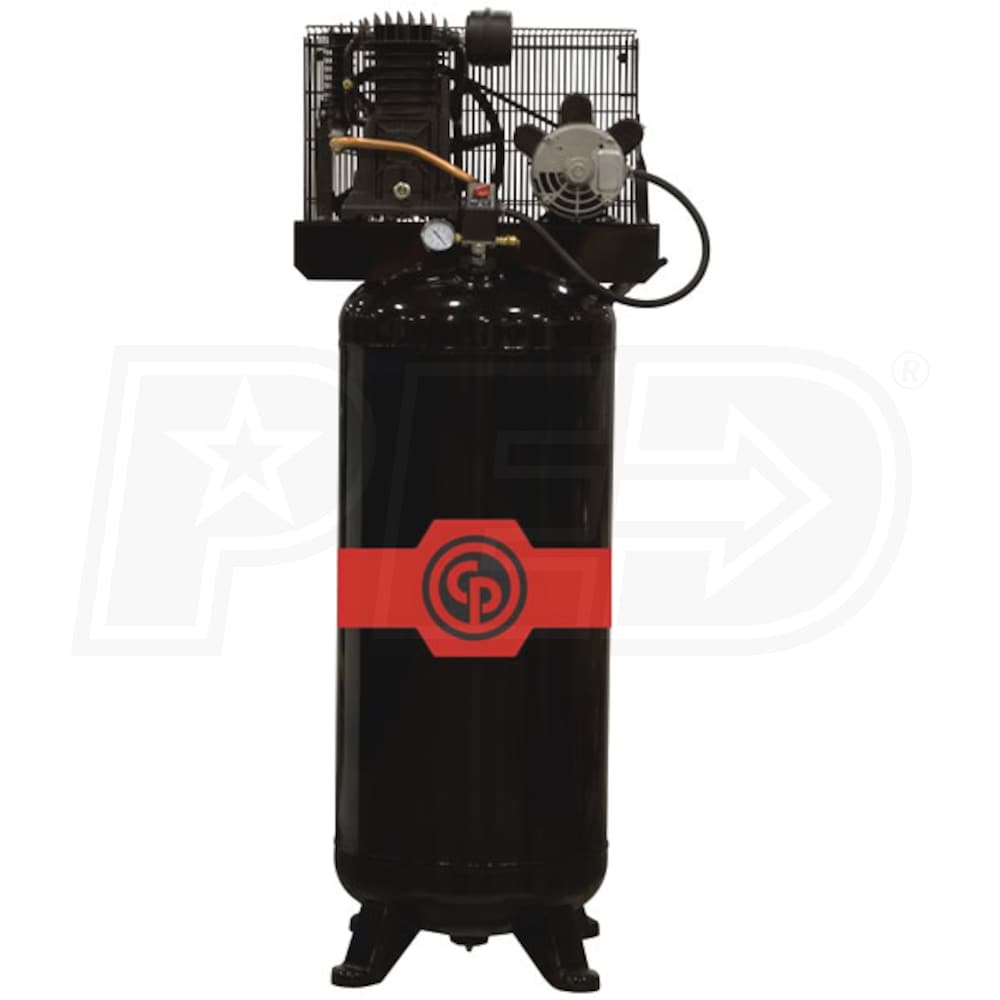

Chicago Pneumatic 5-HP 60-Gallon Dual-Voltage Two-Stage Air Compressor (208/230V 1-Phase)

Chicago Pneumatic 5-HP 60-Gallon Dual-Voltage Two-Stage Air Compressor (208/230V 1-Phase)
Model: RCP-561VNS
$1,079.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$75.00
Extended Warranty
Excludes CA

Free ShippingNo Sales Tax* (Except IL)$1,079.99Buy Now
No Sales Tax* (Except IL)$1,154.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
  • Product Description
  • 6
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
15.33
CFM Rated @ 100 PSI
Tank Size
60
Gallons
Grade
Consumer
Style
Two-Stage
CFM
15.33 CFM Rated @ 100 PSI
Tank Size
60 Gallons
Features
Features
  • Two Stage Compressor Delivers Great Performance And Value
  • Delivers 15.33 acfm @ 100 PSI; 13.75 acfm @ 165 PSI
  • Sturdy Construction Prolongs The Life Of Your Investment
  • Solid cast iron cylinder on 5 horsepower electric motor
  • Professional Features
  • ASME/CRN certified tank and safety valves
  • Fully enclosed motor with high flow belt guard
  • Start-stop pressure switch control
  • Vertical Tank Fits Conveniently In Most Shops And Garages
  • 60 gallon tank; 1/2" outlet
  • 2 year factory warranty (including valves)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
Consult Certified Electrician
Recommended Breaker
40 Amp Breaker
Engine
HP
5
Pump
CFM
15.33
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
165 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Tank Orientation
Vertical
Overview
Certification
ASME/CRN
Weight
300 Pounds
Product Length
29 Inches
Product Width
20 Inches
Product Height
68 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
94922248602
Grade
Consumer Grade Air Compressors
Style
Two-Stage Air Compressors
CFM
15.33
CFM Rated @ 100 PSI
Tank Size
60
Gallons
Grade
Consumer
Style
Two-Stage
CFM
15.33 CFM Rated @ 100 PSI
Tank Size
60 Gallons
Features
Features
  • Two Stage Compressor Delivers Great Performance And Value
  • Delivers 15.33 acfm @ 100 PSI; 13.75 acfm @ 165 PSI
  • Sturdy Construction Prolongs The Life Of Your Investment
  • Solid cast iron cylinder on 5 horsepower electric motor
  • Professional Features
  • ASME/CRN certified tank and safety valves
  • Fully enclosed motor with high flow belt guard
  • Start-stop pressure switch control
  • Vertical Tank Fits Conveniently In Most Shops And Garages
  • 60 gallon tank; 1/2" outlet
  • 2 year factory warranty (including valves)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
Consult Certified Electrician
Recommended Breaker
40 Amp Breaker
Engine
HP
5
Pump
CFM
15.33
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
165 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Tank Orientation
Vertical
Overview
Certification
ASME/CRN
Weight
300 Pounds
Product Length
29 Inches
Product Width
20 Inches
Product Height
68 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
94922248602
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
Consult Certified Electrician
Recommended Breaker
40 Amp Breaker
Engine
HP
5
Pump
CFM
15.33
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
165 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Tank Orientation
Vertical
Overview
Certification
ASME/CRN
Weight
300 Pounds
Product Length
29 Inches
Product Width
20 Inches
Product Height
68 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
94922248602
Reviews
(6)
+
Chicago Pneumatic RCP-561VNS Reviews & Ratings
Product Q&A
(1)
+
Hello Steve, I am interested in the Chicago Pneumatic RCP-561VNS. The CP website states that this model comes with a magnetic starter and an integrated aftercooler but the spec section on your site says "No" on both of these features? I also can't find any solid info on where the unit is assembled and if the parts are US made or imported....especially concerned with the tank and pump. Any help with this would be greatly appreciated.
Russ Whitney
from New York
April 17, 2016
Read Response +
Answer
Most five HP & smaller motors do not need a magnetic starter. 7.5+ HP motors do require a mag starter.
CP model RCP-583V does come with a mag starter, but at a much higher price. Here's the link to that model:
http://www.aircompressorsdirect.com/Chicago-Pneumatic-RCP-583V-Air-Compressor/p2046.html
Most air compressor companies get their pumps from India, China, Brazil or Taiwan, then assemble them in the US. CP assembles the compressor in SC.
CP, BelAire & Quincy are all owned by the same company, but only the Quincy two stage pumps are still built in the US.
Hide Response -
